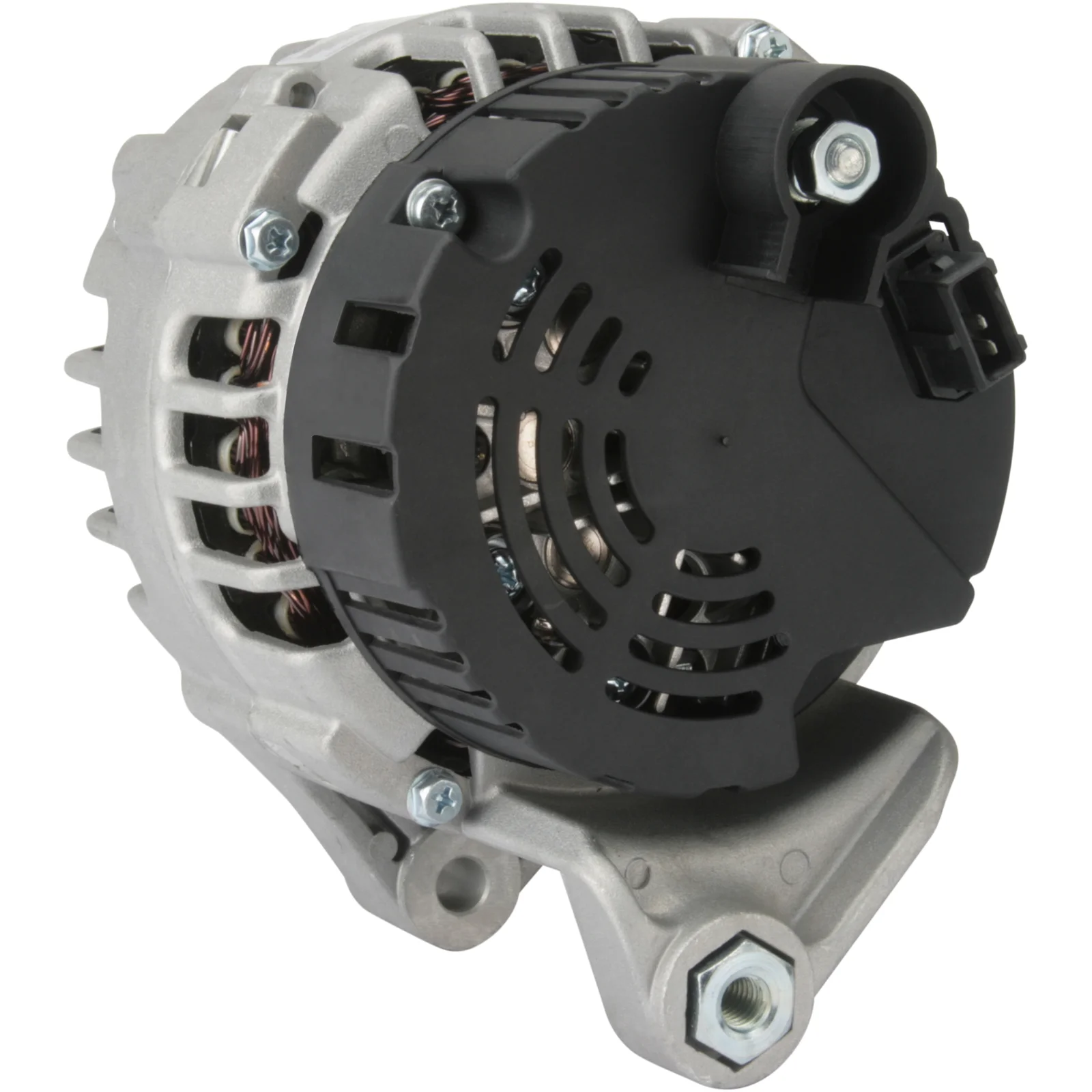

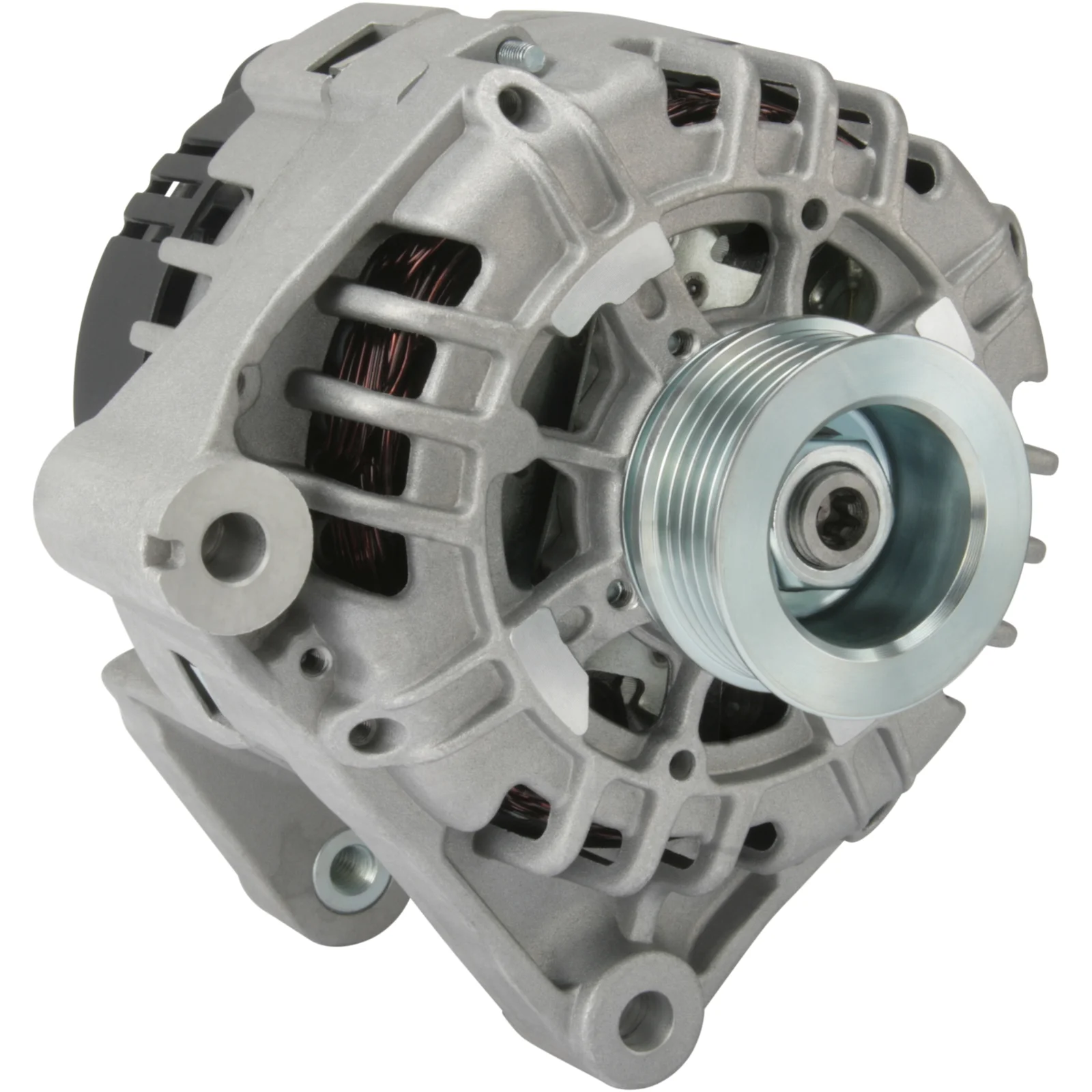

HC-Cargo Alternator
HC-Cargo Alternator
Article no.: F032112472

HC-Cargo Alternator

Technical info:

Voltage: 14, Amp: 100, Rotation: CW, Mounting bracket distributor: 75.40

Description

Voltage: 14
Amp: 100
Pulley distributor: 61.00
Width/holder arm: 28.00
Mounting bracket distributor: 75.40
Bracket hole: 10.60
Belt adjustment bracket hole position: 45
Belt adjustment bracket hole 1: 10.40
Pulley diameter: 53.40
Grooves/pulley: 5
Radius: 93.00
Radius 2: 93.00
B+: M8
Position/B+ in minutes: 60
D+ size: Plug
Rotation: CW
Plug number: PL215
Total length mm: 185.00
Terminal type: IG-L
Pulley: SP
Fan: IF
Regulator type: IR
Product info: BN
Servicing: BMW

Files

  • OEM
    a13vi234, F032112472, GNU2562, SG12B080, YLE000260, yle102020, yle102500, YLE102500L, 1631ir, 2542265, 2542265A, 2542265B, 2542797, 2542797A, 2542797B

  • Normalised article numbler
    a13vi234, a3272, alt14133, alth113, cal15168, dra4033, f032112472, f042a0h113, gnu2562, lrb00470, sg12b080, yle000260, yle102020, yle102500, yle102500l, 8el011711581, 1631ir, 4633, 21470n, 111114, 200104, 210571, 210571a, 284500, 301631ri, 437227, 439301, 839056, 2542265, 2542265a, 2542265b, 2542797, 2542797a, 2542797b, 12049430, 0986049430, 2141371152
  • Description
    Voltage: 14
    Amp: 100
    Pulley distributor: 61.00
    Width/holder arm: 28.00
    Mounting bracket distributor: 75.40
    Bracket hole: 10.60
    Belt adjustment bracket hole position: 45
    Belt adjustment bracket hole 1: 10.40
    Pulley diameter: 53.40
    Grooves/pulley: 5
    Radius: 93.00
    Radius 2: 93.00
    B+: M8
    Position/B+ in minutes: 60
    D+ size: Plug
    Rotation: CW
    Plug number: PL215
    Total length mm: 185.00
    Terminal type: IG-L
    Pulley: SP
    Fan: IF
    Regulator type: IR
    Product info: BN
    Servicing: BMW

    Files

  • Suitable for these vehicles

    • OEM
      a13vi234, F032112472, GNU2562, SG12B080, YLE000260, yle102020, yle102500, YLE102500L, 1631ir, 2542265, 2542265A, 2542265B, 2542797, 2542797A, 2542797B

    • Normalised article numbler
      a13vi234, a3272, alt14133, alth113, cal15168, dra4033, f032112472, f042a0h113, gnu2562, lrb00470, sg12b080, yle000260, yle102020, yle102500, yle102500l, 8el011711581, 1631ir, 4633, 21470n, 111114, 200104, 210571, 210571a, 284500, 301631ri, 437227, 439301, 839056, 2542265, 2542265a, 2542265b, 2542797, 2542797a, 2542797b, 12049430, 0986049430, 2141371152
