HC-Cargo Alternator
HC-Cargo Alternator
Article no.: F032111154

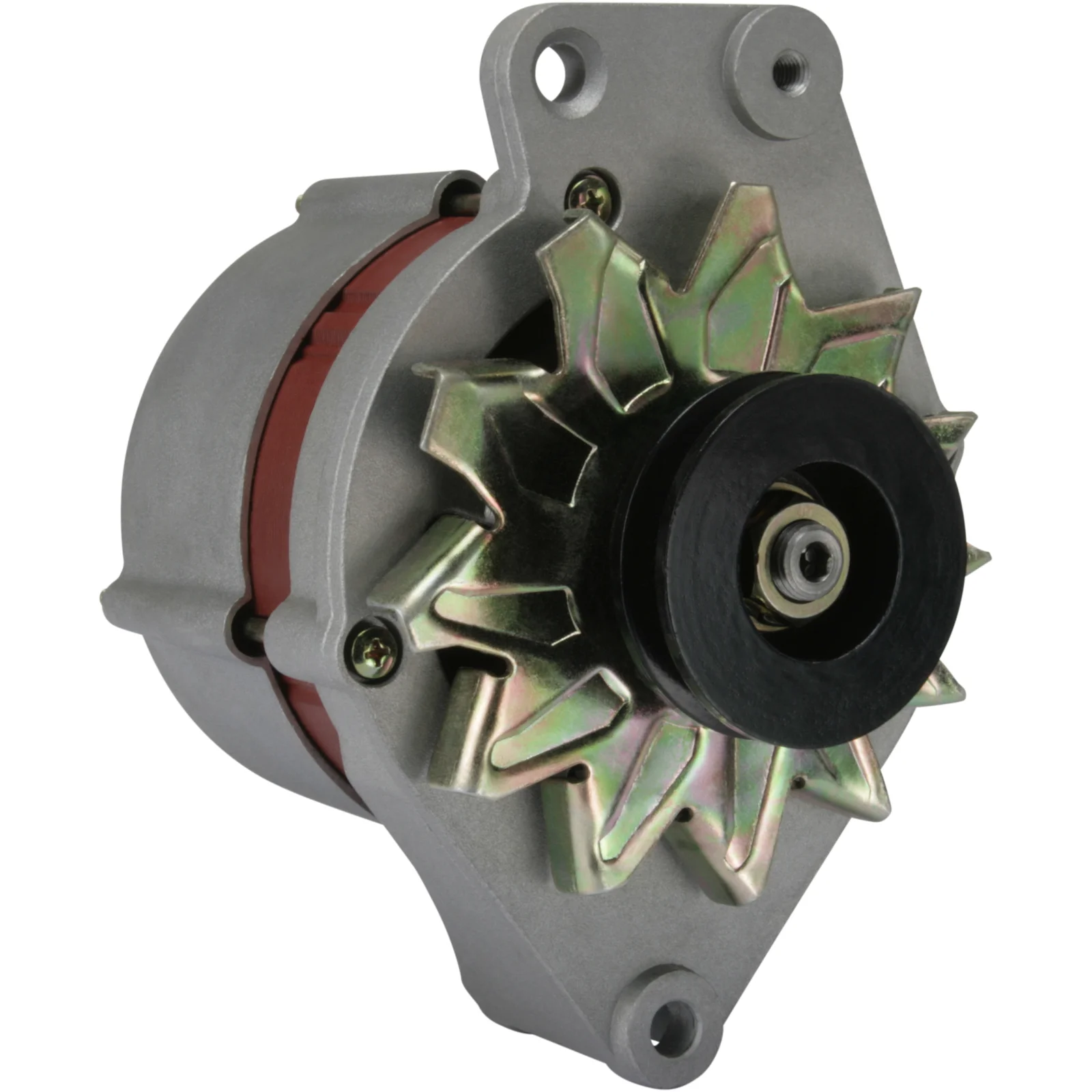

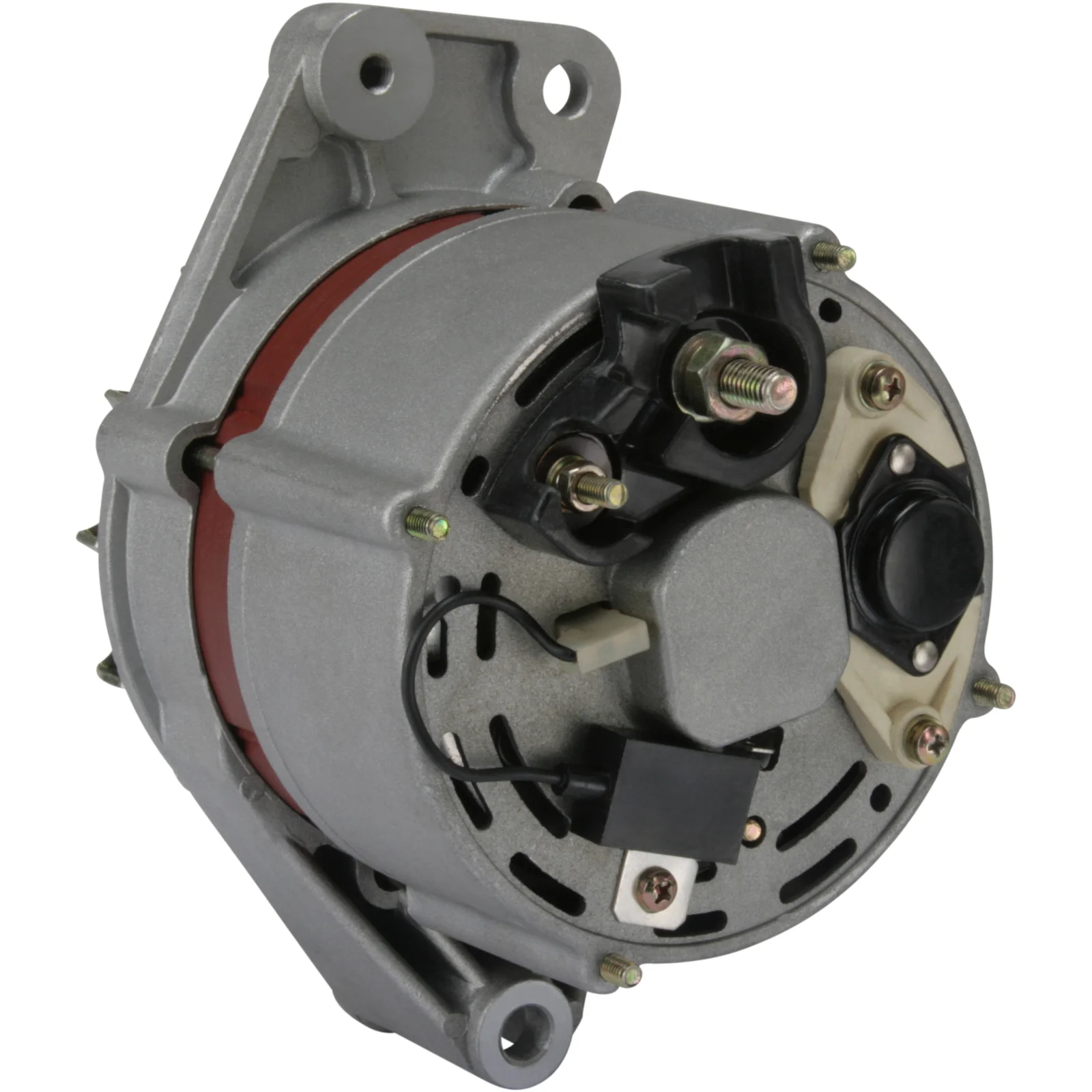

HC-Cargo Alternator

Technical info:

Voltage: 14, Amper.: 65, Pulley diameter: 68.50, Radius: 88.50

Description

VW Alternator 12V-65A 12V - 65A, W Same alternator without "W" = 90-620-3452 For Yourex product order 90-620-3499

Voltage: 14
Amp: 65
Terminal: W
Pulley distance: 87.50
Width/holder arm: 56.00
Bracket hole: 10.20
Belt. adjustment bracket hole position: 3
Belt. adjustment bracket hole position 2: 57
Belt. adjustment bracket hole 1: M8
Belt. adjustment bracket hole 2: 10.30
Pulley diameter: 68.50
Grooves/pulley: 1
Radius: 88.50
Radius 2: 88.50
Radius 3: 86.50
B+: M8
Position/B+ in min.: 14
D+ size: M5
W plug type: 6.30
Total length mm: 176.50
Pulley: P
Regulator type: IR
Prod. info: BN
Servicing: VW

Files

  • OEM
    A13E 9, a13e09, a13e43, a13e58, aak4106, F032111154, 11.201.257, 0120 489 378, 0120 489 379, 0120 489 449, 0120 489 497, 906ir, 0986 034 990, 1986A01855, 111154, 436400, 1516545R, 1516643R, 2523203, 2541438, 2940307, 2940309, 2940371, 031903023, 031903023d, 068903017l, 068903017t, 068903017TX, 068903031, 068903031h, 074903023, 074903023x, 0120488226, 0120488227, 0120488238, 0120489378, 0120489379, 0120489449, 0120489497

  • Normalised article numbler
    a0246, a13e09, a13e43, a13e58, a13e9, aak4106, alt10147, bao3026, cal10146, dra4490, dra4990, dra8080, f032111154, fra828, ia0257, lra00734, lra00781, lra02608, lrb00118, mg95, na201, qa3067, va269, va382, 8el725704001, 8el732689001, 906ir, 1986a01855, 3475, 4372, 4373, 5293, 13464r, 14818n, 14818r, 14821, 23588r, 28950, 30302ri, 30906ri, 56009, 111154, 118260, 118508, 209007, 209007a, 210141, 210141a, 280954, 281752, 281947, 436228, 436400, 1139901bo, 1146501va, 1516545r, 1516643r, 2523203, 2541438, 2940307, 2940309, 2940371, 3434990, 4134990, 4138080, 9034190, 9034990, 9038080, 11201257, 12034990, 12038080, 031903023, 031903023d, 32034990, 32038080, 068903017l, 068903017t, 068903017tx, 068903031, 068903031h, 074903023, 074903023x, 0120488226, 0120488227, 0120488238, 0120489378, 0120489379, 0120489449, 0120489497, 211111452, 211111652, 211120652, 211138652, 211140652, 943356678, 0986034990, 0986034991, 0986034997, 0986035018, 0986038080, 943356508010, 943356678010
  • Description
    VW Alternator 12V-65A 12V - 65A, W Same alternator without "W" = 90-620-3452 For Yourex product order 90-620-3499

    Voltage: 14
    Amp: 65
    Terminal: W
    Pulley distance: 87.50
    Width/holder arm: 56.00
    Bracket hole: 10.20
    Belt. adjustment bracket hole position: 3
    Belt. adjustment bracket hole position 2: 57
    Belt. adjustment bracket hole 1: M8
    Belt. adjustment bracket hole 2: 10.30
    Pulley diameter: 68.50
    Grooves/pulley: 1
    Radius: 88.50
    Radius 2: 88.50
    Radius 3: 86.50
    B+: M8
    Position/B+ in min.: 14
    D+ size: M5
    W plug type: 6.30
    Total length mm: 176.50
    Pulley: P
    Regulator type: IR
    Prod. info: BN
    Servicing: VW

    Files

  • Suitable for these vehicles

    • OEM
      A13E 9, a13e09, a13e43, a13e58, aak4106, F032111154, 11.201.257, 0120 489 378, 0120 489 379, 0120 489 449, 0120 489 497, 906ir, 0986 034 990, 1986A01855, 111154, 436400, 1516545R, 1516643R, 2523203, 2541438, 2940307, 2940309, 2940371, 031903023, 031903023d, 068903017l, 068903017t, 068903017TX, 068903031, 068903031h, 074903023, 074903023x, 0120488226, 0120488227, 0120488238, 0120489378, 0120489379, 0120489449, 0120489497

    • Normalised article numbler
      a0246, a13e09, a13e43, a13e58, a13e9, aak4106, alt10147, bao3026, cal10146, dra4490, dra4990, dra8080, f032111154, fra828, ia0257, lra00734, lra00781, lra02608, lrb00118, mg95, na201, qa3067, va269, va382, 8el725704001, 8el732689001, 906ir, 1986a01855, 3475, 4372, 4373, 5293, 13464r, 14818n, 14818r, 14821, 23588r, 28950, 30302ri, 30906ri, 56009, 111154, 118260, 118508, 209007, 209007a, 210141, 210141a, 280954, 281752, 281947, 436228, 436400, 1139901bo, 1146501va, 1516545r, 1516643r, 2523203, 2541438, 2940307, 2940309, 2940371, 3434990, 4134990, 4138080, 9034190, 9034990, 9038080, 11201257, 12034990, 12038080, 031903023, 031903023d, 32034990, 32038080, 068903017l, 068903017t, 068903017tx, 068903031, 068903031h, 074903023, 074903023x, 0120488226, 0120488227, 0120488238, 0120489378, 0120489379, 0120489449, 0120489497, 211111452, 211111652, 211120652, 211138652, 211140652, 943356678, 0986034990, 0986034991, 0986034997, 0986035018, 0986038080, 943356508010, 943356678010
