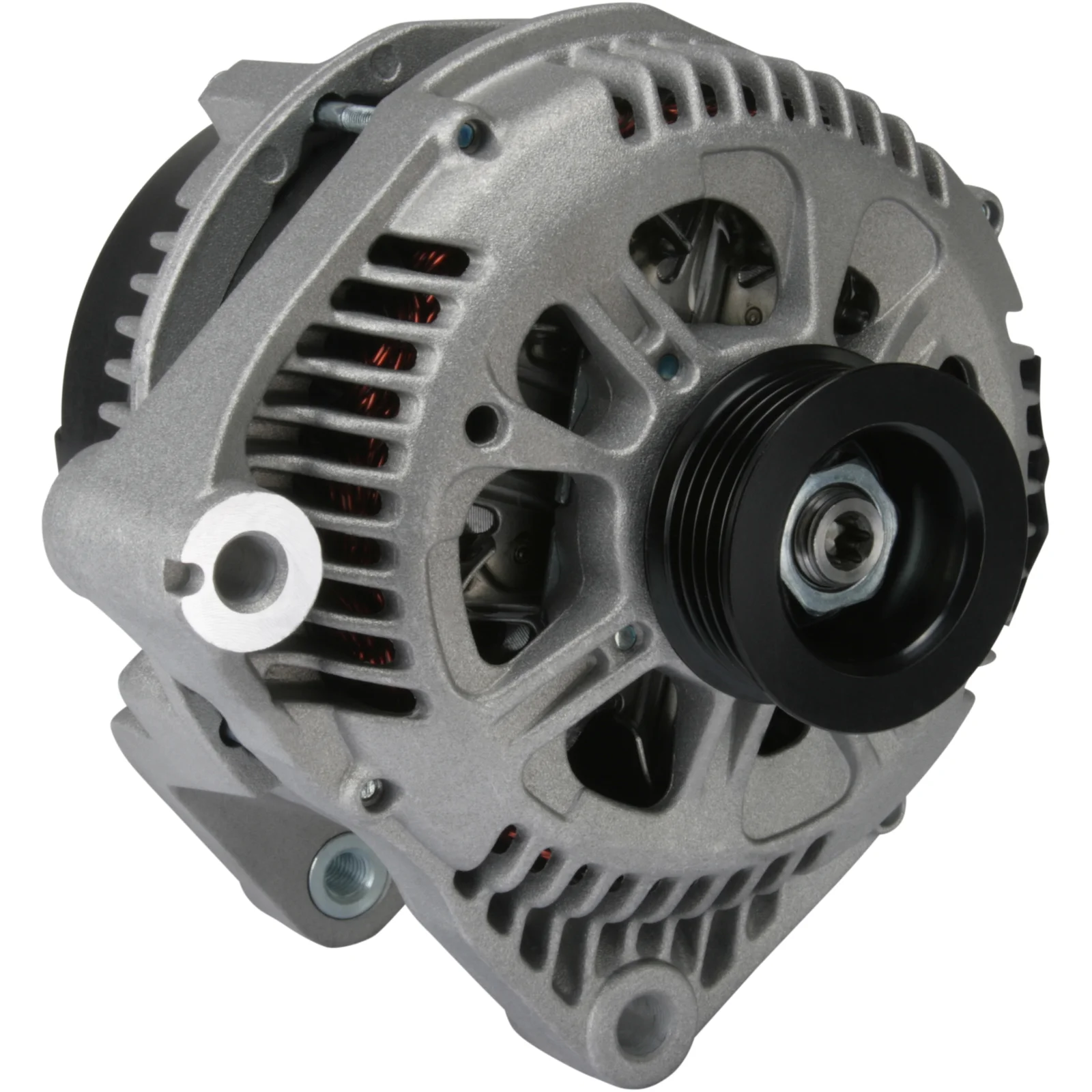

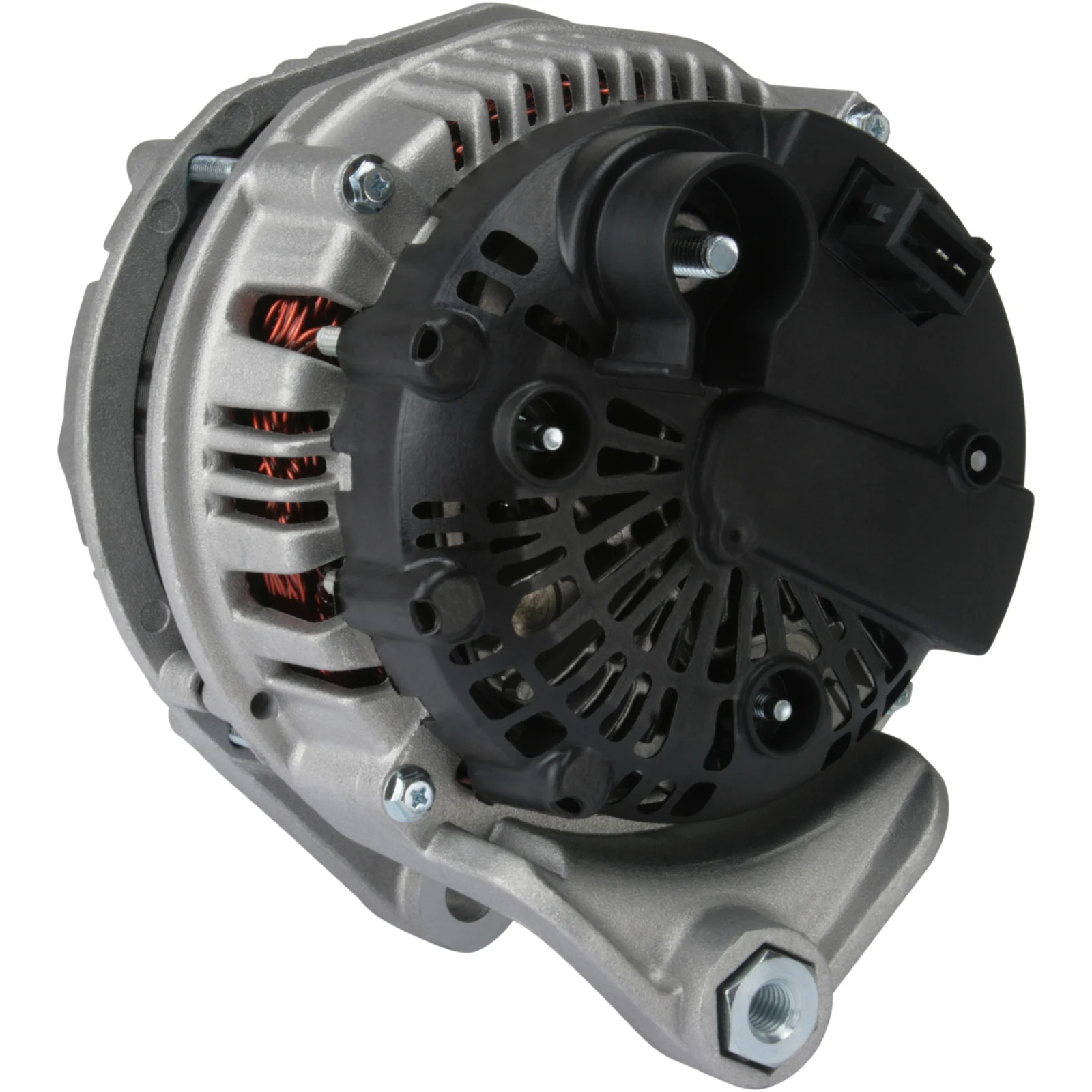

HC-Cargo Alternator
HC-Cargo Alternator
Article no.: F032112468

HC-Cargo Alternator

Technical info:

Voltage: 14, Amp: 150, Rotation: CCW, Mounting bracket distributor: 75.00

Description

Voltage: 14
Amp: 150
Pulley diameter: 60.70
Width/holder arm: 27.80
Mounting bracket diameter: 75.00
Bracket hole: 10.70
Belt adjustment bracket hole position: 45
Belt adjustment bracket hole 1: 10.50
Pulley diameter: 53.50
Grooves/pulley: 5
Radius: 93.50
Radius 2: 93.50
B+: M8
Position/B+ in min.: 55
D+ Size: Plug
Rotation: CCW
Plug number: PL215
Total length mm: 190.00
Pulley: SP
Regulator type: IR
Product info: BN
Servicing: BMW

Files

  • OEM
    A14S054, A14S055, a14vi29, A14VI52, A14VI53, F032112468, R1530057, SG15S030, YLE000051, yle500180, 1584ir, 2248296, 2248297, 2542264, 2542264B, 2542264D, 2542662, 2542662B, 2542686, 2542686B, 2542812, 2542812A, 2542824, 2542824A, 2542826, 2542826A, 6204161, 7792092, 9512805, 24451624, 93171935, 93175820, 93175968, 93184873, 12312248296, 12312248297, 12317792092

  • Normalised article numbler
    a14s054, a14s055, a14vi29, a14vi52, a14vi53, a3094, alt14038, cal15127, dra4065, f032112468, lea0454, lra02076, lra02261, r1530057, sg15s030, yle000051, yle500180, 8el011711551, 8el737866001, 1584ir, 4179, 23076n, 23076r, 111113, 111356, 111648, 200129, 210669, 210669a, 284512, 301584ri, 437160, 437406, 437421, 439252, 439446, 439463, 746116, 746916, 839049, 2248296, 2248297, 2542264, 2542264b, 2542264d, 2542662, 2542662b, 2542686, 2542686b, 2542812, 2542812a, 2542824, 2542824a, 2542826, 2542826a, 6204161, 7792092, 9045031, 9213565, 9512805, 12045030, 12090117, 24451624, 93171935, 93175820, 93175968, 93184873, 944390450, 0986045031, 0986045033, 2151381502, 12312248296, 12312248297, 12317792092, 944390450310
  • Description
    Voltage: 14
    Amp: 150
    Pulley diameter: 60.70
    Width/holder arm: 27.80
    Mounting bracket diameter: 75.00
    Bracket hole: 10.70
    Belt adjustment bracket hole position: 45
    Belt adjustment bracket hole 1: 10.50
    Pulley diameter: 53.50
    Grooves/pulley: 5
    Radius: 93.50
    Radius 2: 93.50
    B+: M8
    Position/B+ in min.: 55
    D+ Size: Plug
    Rotation: CCW
    Plug number: PL215
    Total length mm: 190.00
    Pulley: SP
    Regulator type: IR
    Product info: BN
    Servicing: BMW

    Files

  • Suitable for these vehicles

    • OEM
      A14S054, A14S055, a14vi29, A14VI52, A14VI53, F032112468, R1530057, SG15S030, YLE000051, yle500180, 1584ir, 2248296, 2248297, 2542264, 2542264B, 2542264D, 2542662, 2542662B, 2542686, 2542686B, 2542812, 2542812A, 2542824, 2542824A, 2542826, 2542826A, 6204161, 7792092, 9512805, 24451624, 93171935, 93175820, 93175968, 93184873, 12312248296, 12312248297, 12317792092

    • Normalised article numbler
      a14s054, a14s055, a14vi29, a14vi52, a14vi53, a3094, alt14038, cal15127, dra4065, f032112468, lea0454, lra02076, lra02261, r1530057, sg15s030, yle000051, yle500180, 8el011711551, 8el737866001, 1584ir, 4179, 23076n, 23076r, 111113, 111356, 111648, 200129, 210669, 210669a, 284512, 301584ri, 437160, 437406, 437421, 439252, 439446, 439463, 746116, 746916, 839049, 2248296, 2248297, 2542264, 2542264b, 2542264d, 2542662, 2542662b, 2542686, 2542686b, 2542812, 2542812a, 2542824, 2542824a, 2542826, 2542826a, 6204161, 7792092, 9045031, 9213565, 9512805, 12045030, 12090117, 24451624, 93171935, 93175820, 93175968, 93184873, 944390450, 0986045031, 0986045033, 2151381502, 12312248296, 12312248297, 12317792092, 944390450310
