Article no.: F032111797

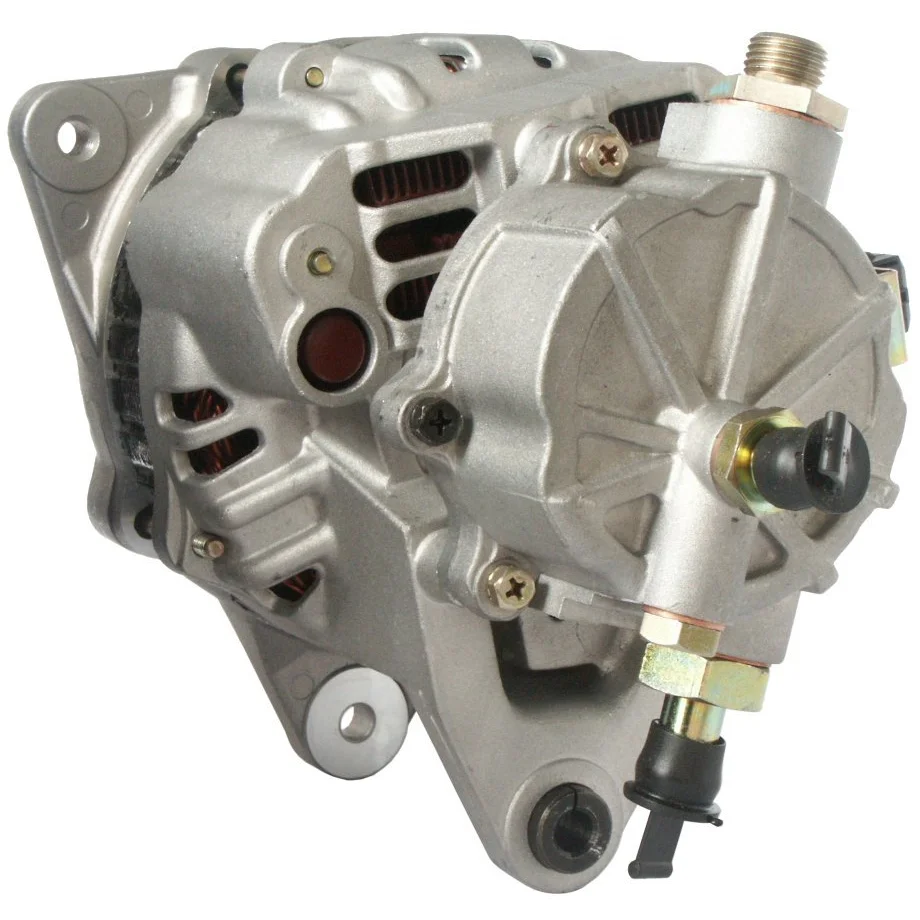

HC-Cargo Alternator

Technical info:

Voltage: 14, Amps: 95, Rotation: CW, Mounting bracket distributor: 81.00

Description

Voltage: 14
Amp: 95
Terminal: W
Pulley dist.: 34.00
Width/holder arm: 13.30
Mount. bracket dist.: 81.00
Bracket hole: 8.20
Belt. adj. brackethole pos.: 10
Belt. adj. bracket hole 1: M8
Pulley dia.: 60.70
Grooves/pulley: 4
Radius: 86.00
Radius 2: 89.00
B+: M8
Position/B+ in min.: 7
D+ Size: Plug
Rotation: CW
Plug no.: PL56
W plug type: Plug
Total length mm: 243.00
Pulley: SP
Regulator type: IR
Vac. pump: Yes
Prod. info: BN
Servicing: Ford

Files

  • OEM
    A003TN1791, a3tn1791, AAK5512, AAK5573, EGL1320, F032111797, 11.209.017, 11.209.410, 98VB10K359AB, 98vb10k359ba, 98vb10k359bb, 98vb10k359bc, 98vp10k359ba, 98vp10k359bb, 1317ir, 1017500, 1051799, 1086299, 1450953

  • Normalised article numbler
    a003tn1791, a3tn1791, a5002, aak5512, aak5573, altv004, bao3146, cal35100, dra3655, dra3655n, egl1320, f032111797, f042303098, f042a03098, fra887, ia9017, lea0163, lrb00381, mg454, qa2244, 8el011710291, 8el737470001, 98vb10k359ab, 98vb10k359ba, 98vb10k359bb, 98vb10k359bc, 98vp10k359ba, 98vp10k359bb, 1317ir, 4002, 5962, 21381n, 21381r, 119700, 200139, 210189, 210189a, 282892, 301317ri, 440196, 747909, 1017500, 1051799, 1086299, 1450953, 11209017, 11209410, 12043140, 20110381, 32121791, 219144952, 0986043141, 943311390010, 944390900460
  • Description
    Voltage: 14
    Amp: 95
    Terminal: W
    Pulley dist.: 34.00
    Width/holder arm: 13.30
    Mount. bracket dist.: 81.00
    Bracket hole: 8.20
    Belt. adj. brackethole pos.: 10
    Belt. adj. bracket hole 1: M8
    Pulley dia.: 60.70
    Grooves/pulley: 4
    Radius: 86.00
    Radius 2: 89.00
    B+: M8
    Position/B+ in min.: 7
    D+ Size: Plug
    Rotation: CW
    Plug no.: PL56
    W plug type: Plug
    Total length mm: 243.00
    Pulley: SP
    Regulator type: IR
    Vac. pump: Yes
    Prod. info: BN
    Servicing: Ford

    Files

  • Suitable for these vehicles

    • OEM
      A003TN1791, a3tn1791, AAK5512, AAK5573, EGL1320, F032111797, 11.209.017, 11.209.410, 98VB10K359AB, 98vb10k359ba, 98vb10k359bb, 98vb10k359bc, 98vp10k359ba, 98vp10k359bb, 1317ir, 1017500, 1051799, 1086299, 1450953

    • Normalised article numbler
      a003tn1791, a3tn1791, a5002, aak5512, aak5573, altv004, bao3146, cal35100, dra3655, dra3655n, egl1320, f032111797, f042303098, f042a03098, fra887, ia9017, lea0163, lrb00381, mg454, qa2244, 8el011710291, 8el737470001, 98vb10k359ab, 98vb10k359ba, 98vb10k359bb, 98vb10k359bc, 98vp10k359ba, 98vp10k359bb, 1317ir, 4002, 5962, 21381n, 21381r, 119700, 200139, 210189, 210189a, 282892, 301317ri, 440196, 747909, 1017500, 1051799, 1086299, 1450953, 11209017, 11209410, 12043140, 20110381, 32121791, 219144952, 0986043141, 943311390010, 944390900460
