HC-Cargo Alternator
HC-Cargo Alternator
Article no.: F032113331

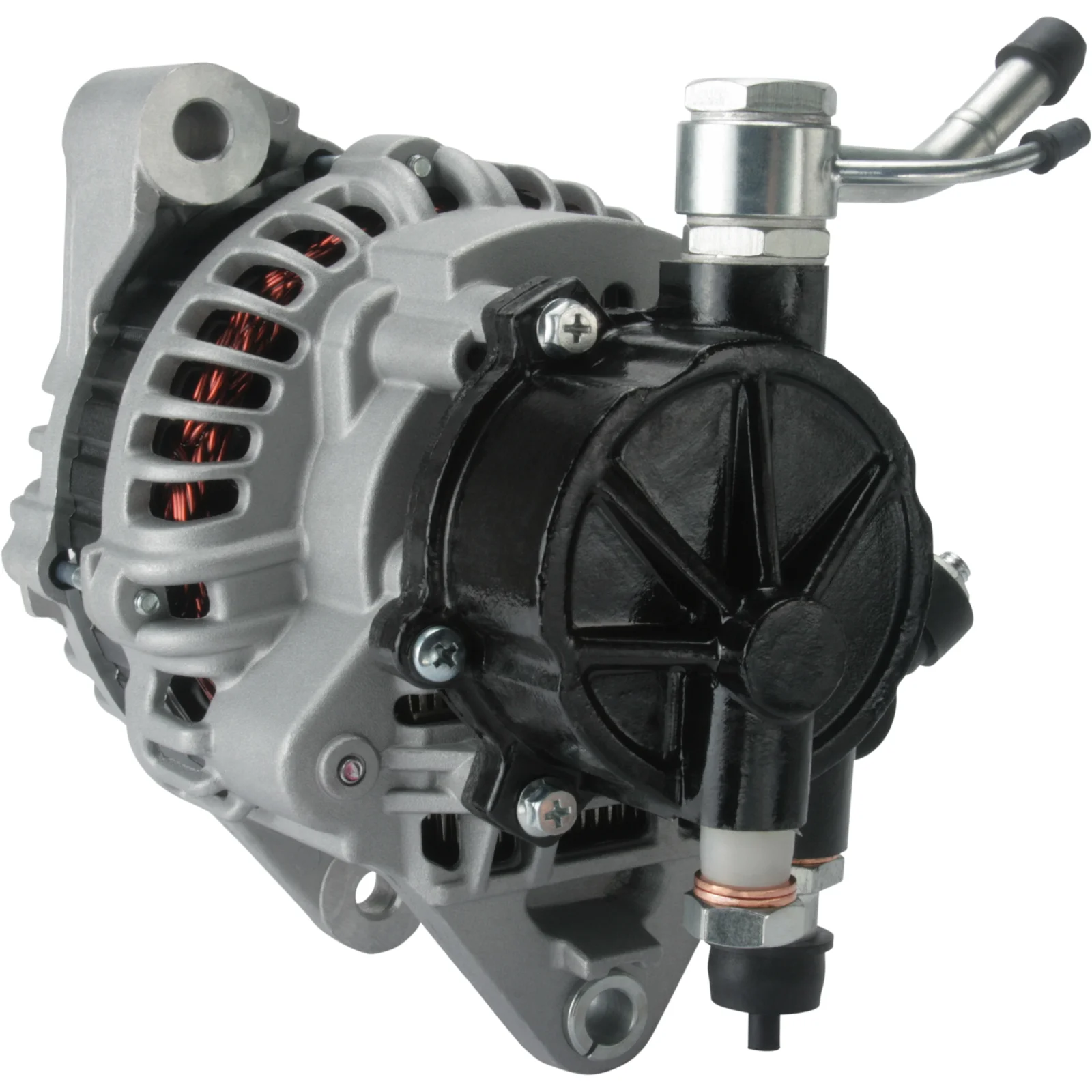

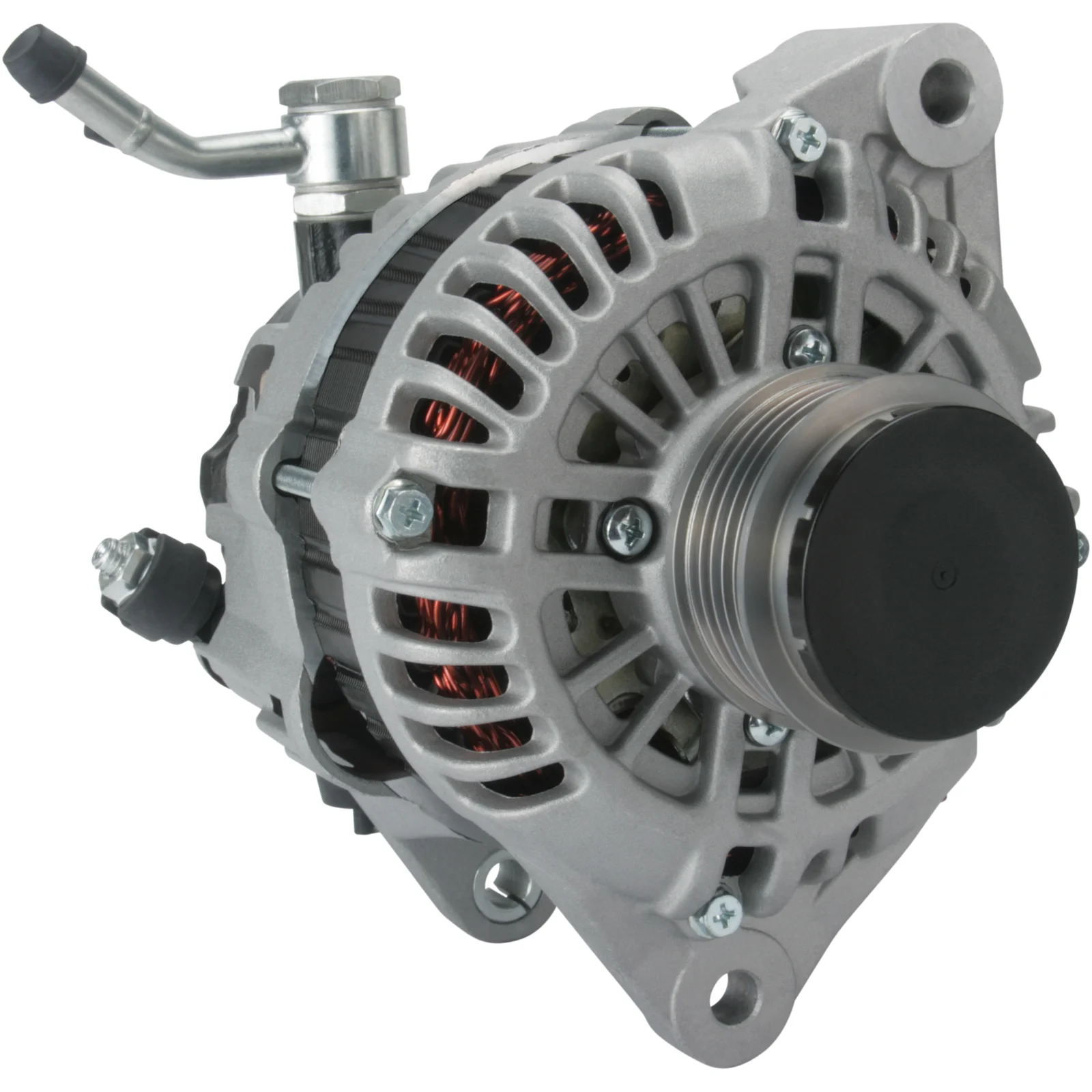

HC-Cargo Alternator

Technical info:

Voltage: 14, Amps: 110, Rotation: CW, Mounting bracket distributor: 80.80

Description

Voltage: 14
Amp: 110
Pulley dist.: 46.50
Width/holder arm: 13.00
Mount. bracket dist.: 80.80
Bracket hole: 10.30
Belt. adj. brackethole pos.: 5
Belt. adj. bracket hole 1: 11.20
Pulley dia.: 59.70
Grooves/pulley: 5
Radius: 90.00
Radius 2: 90.00
B+: M8
Position/B+ in min.: 18
D+ Size: Plug
Rotation: CW
Plug no.: PL07
Total length mm: 239.50
Pulley: SP/FW
Regulator type: IR
Vacuum pump: Yes
Prod. info: BN
Servicing: Hyundai

Files

  • OEM
    AF111225, AF111390, F032113331, ja1709ir, TA000A56901, TA000A61201, 37300-4x000, 37300-4X001, 37300-4x002, 37300-4X003, 37300-4X500, 37300-4x501, 37300-4x502, 37300-4x503, 2655721

  • Normalised article numbler
    a3248valeo, a9018, af111225, af111390, alt7234, alth130, cal32114, dra4203, dra4203n, f032113331, f042206036, f042a0b041, f042a0h130, j5110524, ja1709ir, lra02231, ta000a56901, ta000a61201, 8el011711231, 9413, 23203n, 23203r, 111251, 210369, 210369a, 210387, 210387a, 284706, 373004x000, 373004x001, 373004x002, 373004x003, 373004x500, 373004x501, 373004x502, 373004x503, 401709ri, 600005, 600024, 600049, 2655721, 9212444, 12060809, 063532601, 063532624, 0986049500, 5241141102, 063532601010, 063532624010, 944390903950
  • Description
    Voltage: 14
    Amp: 110
    Pulley dist.: 46.50
    Width/holder arm: 13.00
    Mount. bracket dist.: 80.80
    Bracket hole: 10.30
    Belt. adj. brackethole pos.: 5
    Belt. adj. bracket hole 1: 11.20
    Pulley dia.: 59.70
    Grooves/pulley: 5
    Radius: 90.00
    Radius 2: 90.00
    B+: M8
    Position/B+ in min.: 18
    D+ Size: Plug
    Rotation: CW
    Plug no.: PL07
    Total length mm: 239.50
    Pulley: SP/FW
    Regulator type: IR
    Vacuum pump: Yes
    Prod. info: BN
    Servicing: Hyundai

    Files

  • Suitable for these vehicles

    • OEM
      AF111225, AF111390, F032113331, ja1709ir, TA000A56901, TA000A61201, 37300-4x000, 37300-4X001, 37300-4x002, 37300-4X003, 37300-4X500, 37300-4x501, 37300-4x502, 37300-4x503, 2655721

    • Normalised article numbler
      a3248valeo, a9018, af111225, af111390, alt7234, alth130, cal32114, dra4203, dra4203n, f032113331, f042206036, f042a0b041, f042a0h130, j5110524, ja1709ir, lra02231, ta000a56901, ta000a61201, 8el011711231, 9413, 23203n, 23203r, 111251, 210369, 210369a, 210387, 210387a, 284706, 373004x000, 373004x001, 373004x002, 373004x003, 373004x500, 373004x501, 373004x502, 373004x503, 401709ri, 600005, 600024, 600049, 2655721, 9212444, 12060809, 063532601, 063532624, 0986049500, 5241141102, 063532601010, 063532624010, 944390903950
