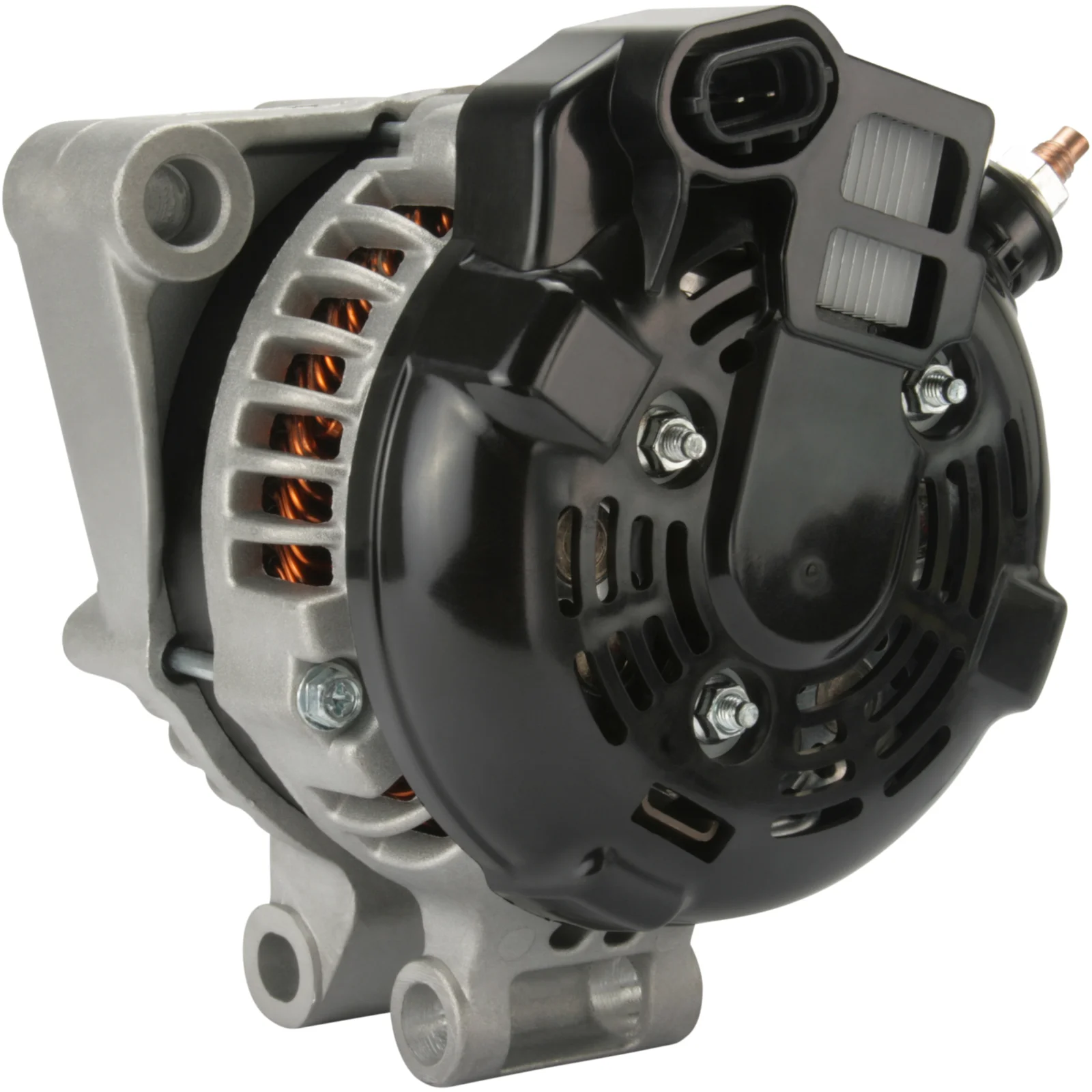

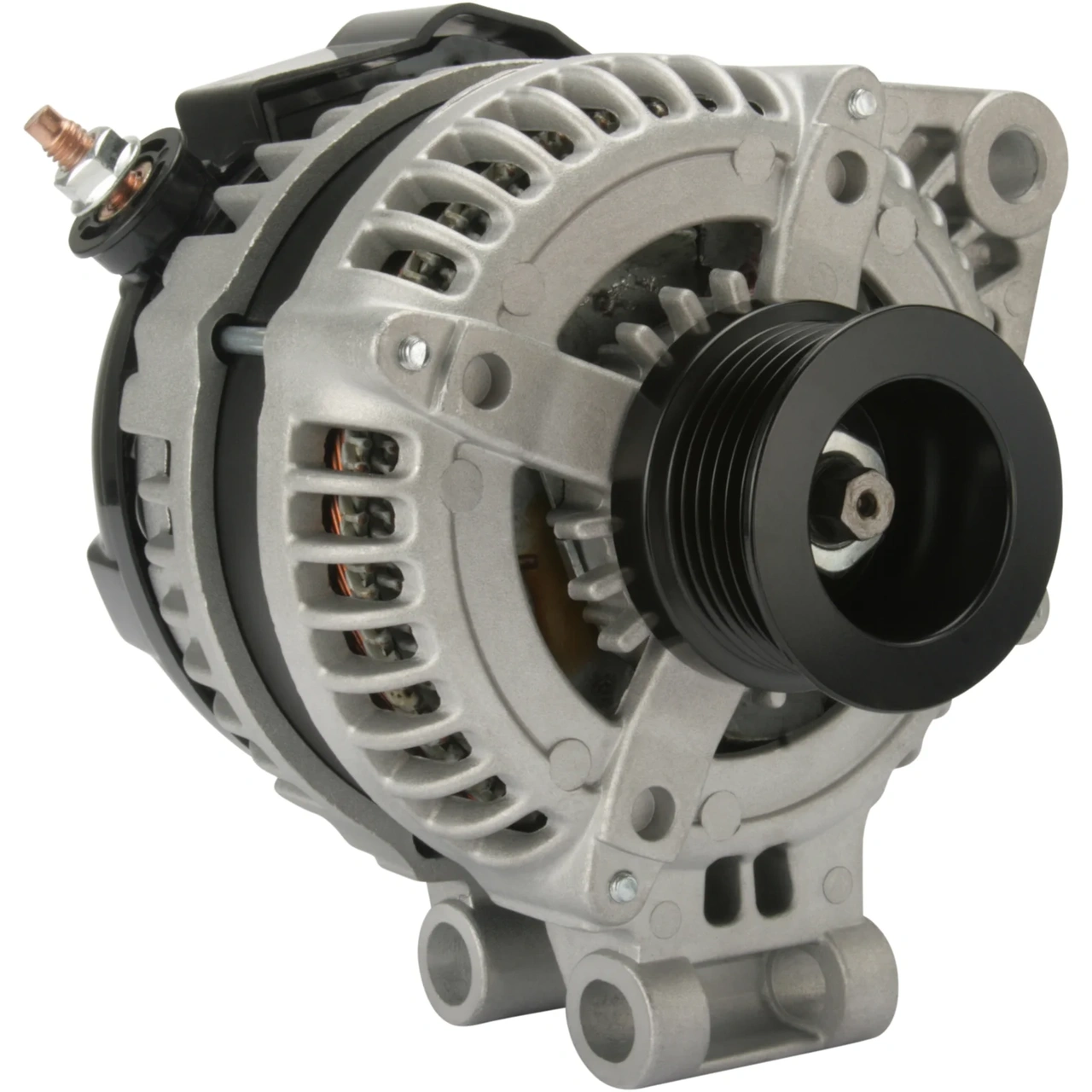

HC-Cargo Alternator
HC-Cargo Alternator
Article no.: F032114491

HC-Cargo Alternator

Technical info:

Voltage: 14, Amps: 150, Rotation: CW, Mounting bracket distance: 45.00

Description

Voltage: 14
Amp: 150
Pulley dist.: 28.50
Width/holder arm: 50.50
Mount. bracket dist.: 45.00
Bracket hole: 12.00
Bracket hole 2: 14.00
Belt. adj. brackethole pos.: 10
Belt. adj. bracket hole 1: 11.00
Pulley dia.: 54.00
Grooves/pulley: 6
Radius: 87.00
Radius 2: 84.00
B+: M8
Position/B+ in min.: 8
D+ Size: Plug
Rotation: CW
Plug no.: PL136
Total length mm: 166.00
Pulley: SP
Regulator type: IR
Prod. info: BN

Files

  • OEM
    F032114491, LR008860, yle500190, YLE500390, 1986A01326, 104210-3690, 104210-3691

  • Normalised article numbler
    a6045, a6045denso, cal40220, dan991, dra0629, f032114491, f042205236, lr008860, yle500190, yle500390, 8el015637481, 1986a01326, 11206, 11206r, 209291, 209291a, 284997, 439984, 440764, 12061095, 32009000, 1042103690, 1042103691, 2141461502
  • Description
    Voltage: 14
    Amp: 150
    Pulley dist.: 28.50
    Width/holder arm: 50.50
    Mount. bracket dist.: 45.00
    Bracket hole: 12.00
    Bracket hole 2: 14.00
    Belt. adj. brackethole pos.: 10
    Belt. adj. bracket hole 1: 11.00
    Pulley dia.: 54.00
    Grooves/pulley: 6
    Radius: 87.00
    Radius 2: 84.00
    B+: M8
    Position/B+ in min.: 8
    D+ Size: Plug
    Rotation: CW
    Plug no.: PL136
    Total length mm: 166.00
    Pulley: SP
    Regulator type: IR
    Prod. info: BN

    Files

  • Suitable for these vehicles

    • OEM
      F032114491, LR008860, yle500190, YLE500390, 1986A01326, 104210-3690, 104210-3691

    • Normalised article numbler
      a6045, a6045denso, cal40220, dan991, dra0629, f032114491, f042205236, lr008860, yle500190, yle500390, 8el015637481, 1986a01326, 11206, 11206r, 209291, 209291a, 284997, 439984, 440764, 12061095, 32009000, 1042103690, 1042103691, 2141461502
