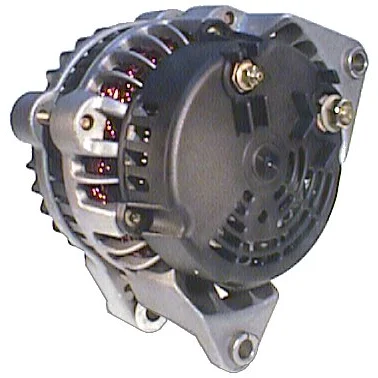

Article no.: F032111514

HC-Cargo Alternator

Technical info:

Voltage: 14, Amps: 100, Rotation: CW, Mounting bracket distributor: 56.00

Description

Opel Alternator 12V-100A 12V - 100A, 6 groove pulley For 120A take 90-430-3925 For Yourex product order 90-430-9210

Voltage: 14
Amp: 100
Pulley diameter: 52.00
Width/holder arm: 34.00
Mounting bracket diameter: 56.00
Bracket hole: 10.40
Belt adjustment bracket hole position: 50
Belt adjustment bracket hole 1: 10.40
Pulley diameter: 55.50
Grooves/pulley: 6
Radius: 92.00
Radius 2: 92.00
B+: M8
Position/B+ in min.: 10
D+ Size: M5
Rotation: CW
Total length mm: 183.00
Pulley: Poly V
Voltage regulator type: IR
Product info: BN
Servicing: Opel

Files

  • OEM
    AAK5510, F032111514, R1530002, R1530041, 11.209.011, 454, 455, 814, 855, 914, 955, 0986 044 970, 1103ir, 111514, 437215, 3493454, 3493455, 3493814, 3493815, 3493855, 3493856, 3493914, 3493955, 6204006, 6204007, 6204009, 6204010, 6204034, 6204079, 6204141, 9163939, 9512122, 10479914, 10479955, 10480226, 90413762, 90444194, 93175803, 0123505003

  • Normalised article numbler
    a0230, a0230r, a0717s, a1010, a1012, aak5510, alt10214, alt1422, alt20201, cal12103, dra3703, dra3703n, dra3704, dra3704n, dra3797, dra9250, drb2750x, f032111514, fra821, ia9011, lea0588, lrb00319, lrb00320, mg726, qa2342, qa4235, r1530002, r1530041, 8el737001001, 8el737051001, 454, 455, 814, 855, 914, 955, 1103ir, 4478, 5024, 5075, 8545r, 8546n, 13609n, 13609r, 13736n, 13736r, 21255n, 21256r, 111395, 111514, 200169, 210003, 210003a, 281913, 282915, 282923, 301051ri, 301070ri, 301103ri, 436719, 436720, 437215, 437496, 440745, 440856, 443046, 443205, 746986, 2939250, 3493454, 3493455, 3493814, 3493815, 3493855, 3493856, 3493914, 3493955, 6204006, 6204007, 6204009, 6204010, 6204034, 6204079, 6204141, 9163939, 9512122, 10479914, 10479955, 10480226, 11209011, 12039250, 12043930, 12090055, 32042750, 90413762, 90444194, 93175803, 0123505003, 135507100, 228127702, 0986043931, 0986044970, 2281221002, 2281271002, 2281321002, 944390900780
  • Description
    Opel Alternator 12V-100A 12V - 100A, 6 groove pulley For 120A take 90-430-3925 For Yourex product order 90-430-9210

    Voltage: 14
    Amp: 100
    Pulley diameter: 52.00
    Width/holder arm: 34.00
    Mounting bracket diameter: 56.00
    Bracket hole: 10.40
    Belt adjustment bracket hole position: 50
    Belt adjustment bracket hole 1: 10.40
    Pulley diameter: 55.50
    Grooves/pulley: 6
    Radius: 92.00
    Radius 2: 92.00
    B+: M8
    Position/B+ in min.: 10
    D+ Size: M5
    Rotation: CW
    Total length mm: 183.00
    Pulley: Poly V
    Voltage regulator type: IR
    Product info: BN
    Servicing: Opel

    Files

  • Suitable for these vehicles

    • OEM
      AAK5510, F032111514, R1530002, R1530041, 11.209.011, 454, 455, 814, 855, 914, 955, 0986 044 970, 1103ir, 111514, 437215, 3493454, 3493455, 3493814, 3493815, 3493855, 3493856, 3493914, 3493955, 6204006, 6204007, 6204009, 6204010, 6204034, 6204079, 6204141, 9163939, 9512122, 10479914, 10479955, 10480226, 90413762, 90444194, 93175803, 0123505003

    • Normalised article numbler
      a0230, a0230r, a0717s, a1010, a1012, aak5510, alt10214, alt1422, alt20201, cal12103, dra3703, dra3703n, dra3704, dra3704n, dra3797, dra9250, drb2750x, f032111514, fra821, ia9011, lea0588, lrb00319, lrb00320, mg726, qa2342, qa4235, r1530002, r1530041, 8el737001001, 8el737051001, 454, 455, 814, 855, 914, 955, 1103ir, 4478, 5024, 5075, 8545r, 8546n, 13609n, 13609r, 13736n, 13736r, 21255n, 21256r, 111395, 111514, 200169, 210003, 210003a, 281913, 282915, 282923, 301051ri, 301070ri, 301103ri, 436719, 436720, 437215, 437496, 440745, 440856, 443046, 443205, 746986, 2939250, 3493454, 3493455, 3493814, 3493815, 3493855, 3493856, 3493914, 3493955, 6204006, 6204007, 6204009, 6204010, 6204034, 6204079, 6204141, 9163939, 9512122, 10479914, 10479955, 10480226, 11209011, 12039250, 12043930, 12090055, 32042750, 90413762, 90444194, 93175803, 0123505003, 135507100, 228127702, 0986043931, 0986044970, 2281221002, 2281271002, 2281321002, 944390900780
