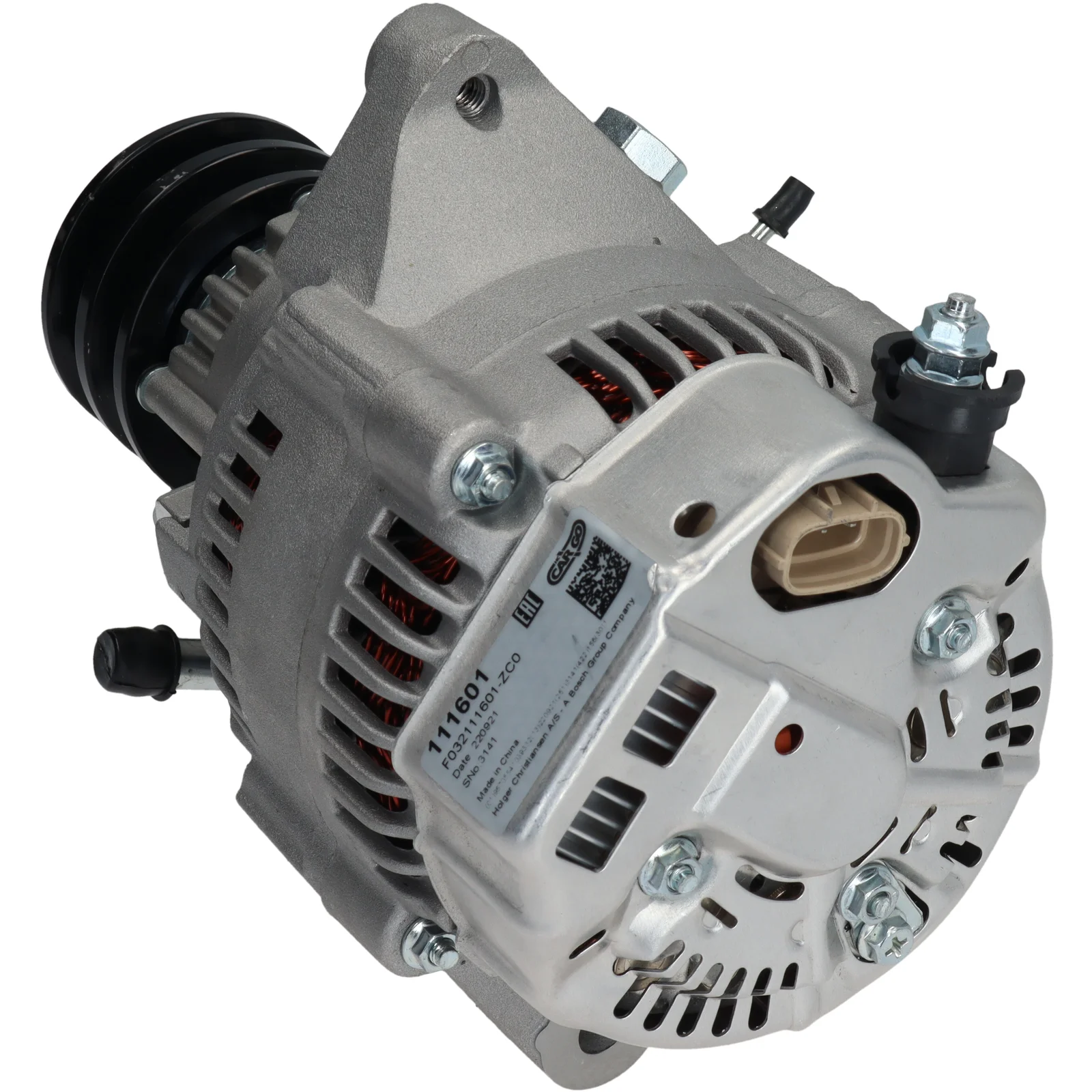

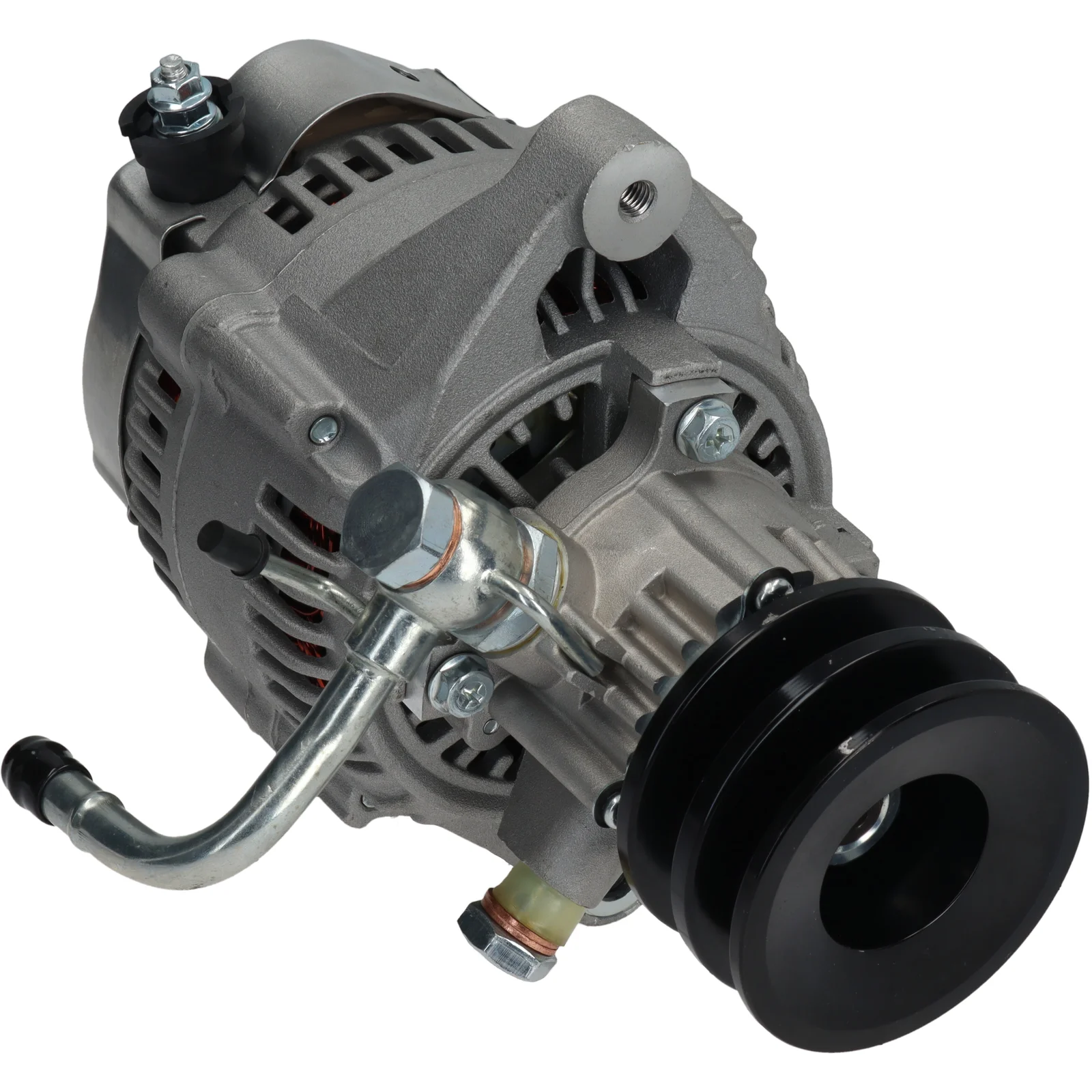

HC-Cargo Alternator
HC-Cargo Alternator
Article no.: F032111601

HC-Cargo Alternator

Technical info:

Voltage: 14, Amp: 70, Rotation: CW, Pulley dia.: 74.50

Description

Alternator 12V-70A 1993-95 12V - 70A, 2V, (S, IG, L) For Yourex product order 90-555-5434

Voltage: 14
Ampere: 70
Pulley diameter: 146.50
Width/holder arm: 70.00
Bracket hole: 10.30
Belt adjustment bracket hole position: 2
Belt adjustment bracket hole 1: M8
Pulley diameter: 74.50
Grooves/pulley: 2
Radius: 80.00
Radius 2: 84.00
B+: M6
Position/B+ in min.: 5
D+ size: Plug
Rotation: CW
Plug no.: PL42
Total length mm: 226.00
Pulley: DP
Voltage regulator type: IR
Vacuum pump: Yes
Product info: BN
Servicing: Toyota

Files

  • OEM
    F032111601, ja989ir, 27040-54320, 27040-54340, 27060-54150, 27060-54210, 100211-5250, 100211-5251, 100211-5252, 100213-1900, 100213-1910, 100213-1911, 100213-2441, 111601

  • Normalised article numbler
    dra3745, dra3745n, f032111601, ja989ir, 8el012429301, 8el737064001, 5479, 21311r, 40989ri, 111601, 119548, 282629, 437776, 12060418, 235155702, 0986046381, 1002115250, 1002115251, 1002115252, 1002131900, 1002131910, 1002131911, 1002132441, 2704054320, 2704054340, 2706054150, 2706054210, 943354058010
  • Description
    Alternator 12V-70A 1993-95 12V - 70A, 2V, (S, IG, L) For Yourex product order 90-555-5434

    Voltage: 14
    Ampere: 70
    Pulley diameter: 146.50
    Width/holder arm: 70.00
    Bracket hole: 10.30
    Belt adjustment bracket hole position: 2
    Belt adjustment bracket hole 1: M8
    Pulley diameter: 74.50
    Grooves/pulley: 2
    Radius: 80.00
    Radius 2: 84.00
    B+: M6
    Position/B+ in min.: 5
    D+ size: Plug
    Rotation: CW
    Plug no.: PL42
    Total length mm: 226.00
    Pulley: DP
    Voltage regulator type: IR
    Vacuum pump: Yes
    Product info: BN
    Servicing: Toyota

    Files

  • Suitable for these vehicles

    • OEM
      F032111601, ja989ir, 27040-54320, 27040-54340, 27060-54150, 27060-54210, 100211-5250, 100211-5251, 100211-5252, 100213-1900, 100213-1910, 100213-1911, 100213-2441, 111601

    • Normalised article numbler
      dra3745, dra3745n, f032111601, ja989ir, 8el012429301, 8el737064001, 5479, 21311r, 40989ri, 111601, 119548, 282629, 437776, 12060418, 235155702, 0986046381, 1002115250, 1002115251, 1002115252, 1002131900, 1002131910, 1002131911, 1002132441, 2704054320, 2704054340, 2706054150, 2706054210, 943354058010
