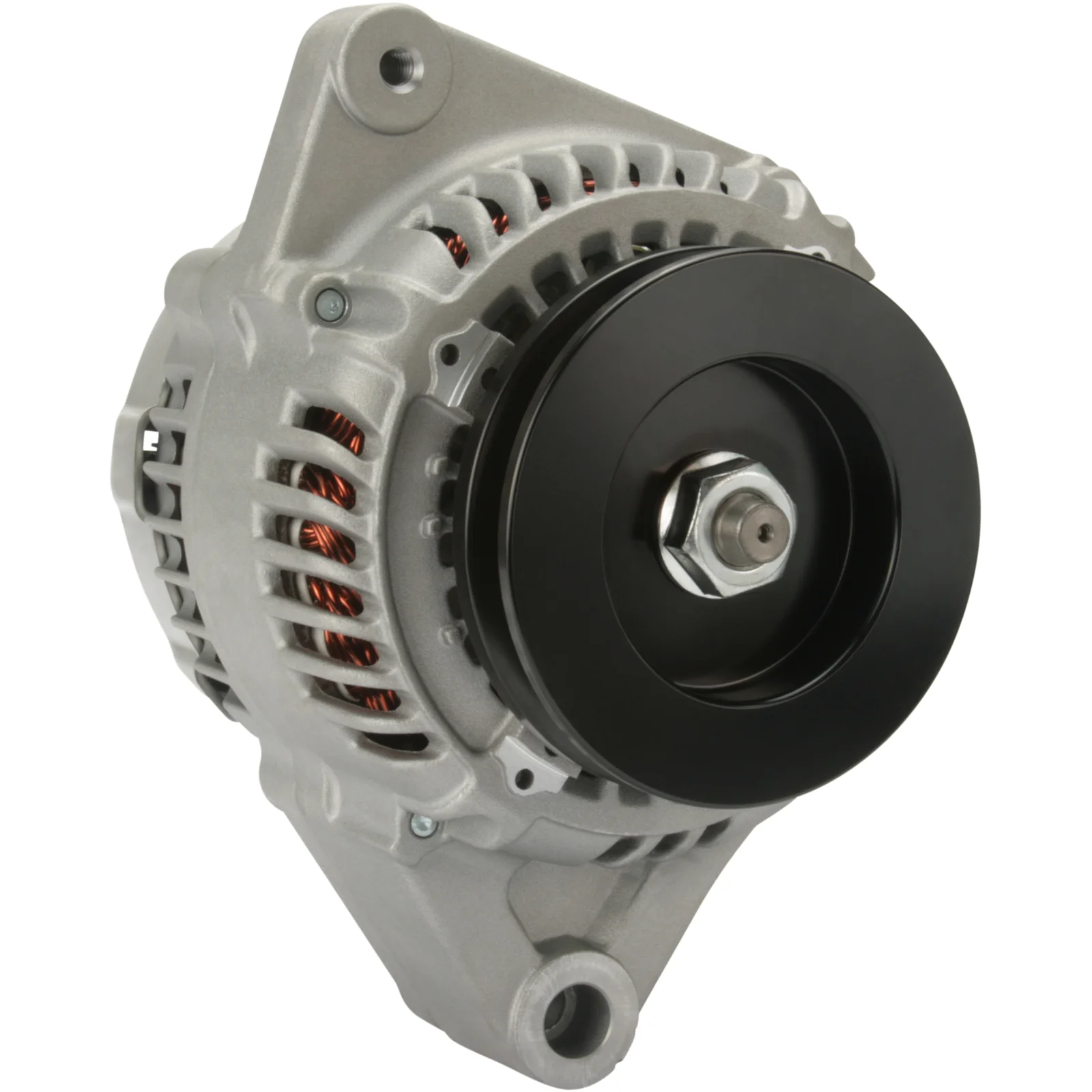

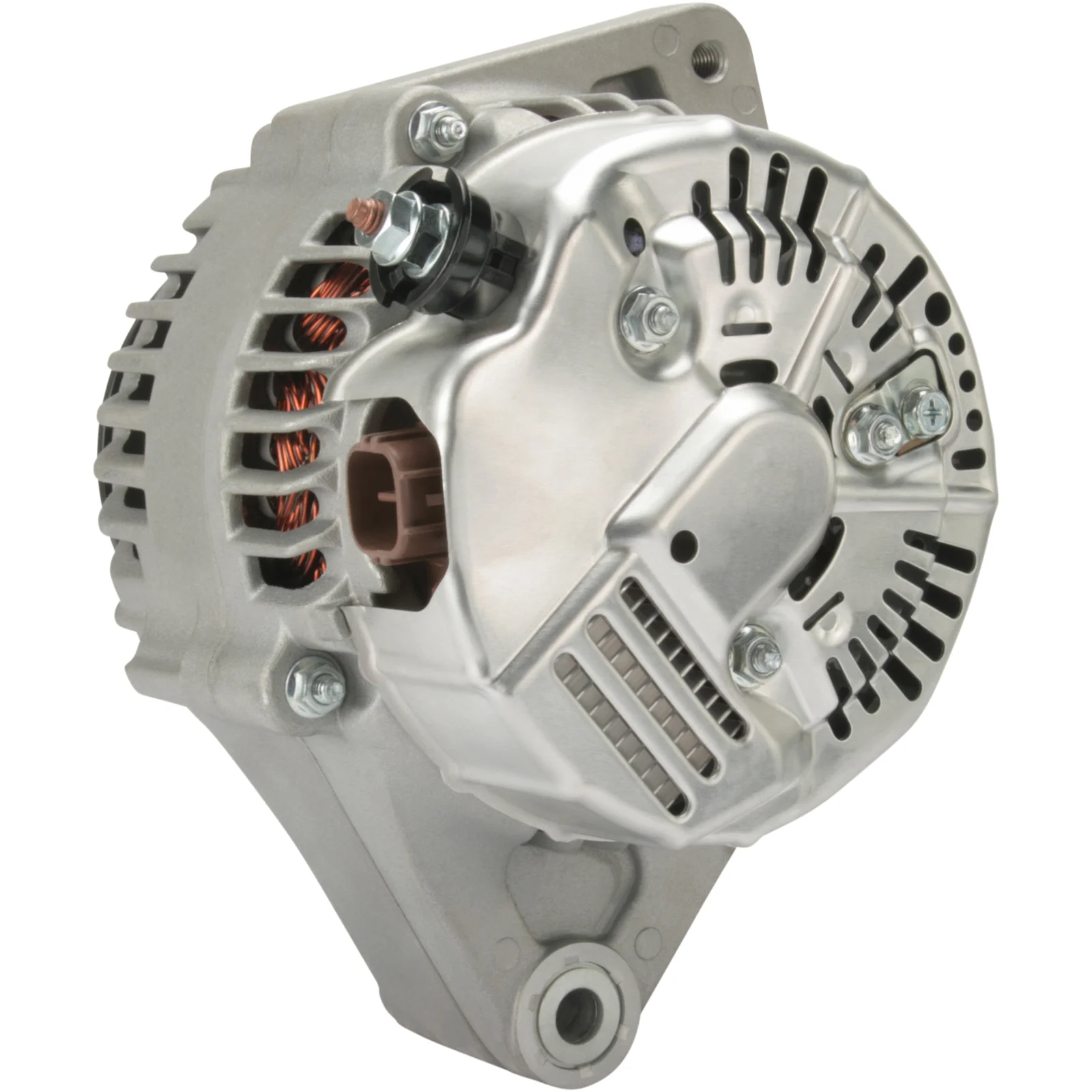

HC-Cargo Alternator
HC-Cargo Alternator
Article no.: F032114227

HC-Cargo Alternator

Technical info:

Voltage: 14, Amp: 120, Rotation: CW, Pulley diameter: 99.00

Description

Voltage: 14
Amp: 120
Pulley dist.: 96.00
Width/holder arm: 53.20
Bracket hole: 10.50
Belt. adj. brackethole pos.: 55
Belt. adj. bracket hole 1: M8
Pulley dia.: 99.00
Grooves/pulley: 1
Radius: 100.00
Radius 2: 90.00
B+: M6
Position/B+ in min.: 50
D+ Size: Plug
Rotation: CW
Plug no.: PL78
Total length mm: 168.00
Terminal type: S-IG-L-DF/DFM
Lamp type: Active
Pulley: P
Regulator type: IR
Prod. info: BN
Servicing: Toyota

Files

  • OEM
    F032114227, ja1783ir, 27060-27030, 102211-0670, 102211-4120, 102211-4121

  • Normalised article numbler
    a6053, a6053denso, cal40127, dan939, dendan939, dra0073, f032114227, ja1783ir, 8el011711291, 9295, 23089r, 112175, 210846, 210846a, 284528, 401783ri, 440520, 9213023, 12060814, 063377427, 0986084380, 1022110670, 1022114120, 1022114121, 2351951202, 2706027030, 063377427010
  • Description
    Voltage: 14
    Amp: 120
    Pulley dist.: 96.00
    Width/holder arm: 53.20
    Bracket hole: 10.50
    Belt. adj. brackethole pos.: 55
    Belt. adj. bracket hole 1: M8
    Pulley dia.: 99.00
    Grooves/pulley: 1
    Radius: 100.00
    Radius 2: 90.00
    B+: M6
    Position/B+ in min.: 50
    D+ Size: Plug
    Rotation: CW
    Plug no.: PL78
    Total length mm: 168.00
    Terminal type: S-IG-L-DF/DFM
    Lamp type: Active
    Pulley: P
    Regulator type: IR
    Prod. info: BN
    Servicing: Toyota

    Files

  • Suitable for these vehicles

    • OEM
      F032114227, ja1783ir, 27060-27030, 102211-0670, 102211-4120, 102211-4121

    • Normalised article numbler
      a6053, a6053denso, cal40127, dan939, dendan939, dra0073, f032114227, ja1783ir, 8el011711291, 9295, 23089r, 112175, 210846, 210846a, 284528, 401783ri, 440520, 9213023, 12060814, 063377427, 0986084380, 1022110670, 1022114120, 1022114121, 2351951202, 2706027030, 063377427010
