Article no.: F032112351

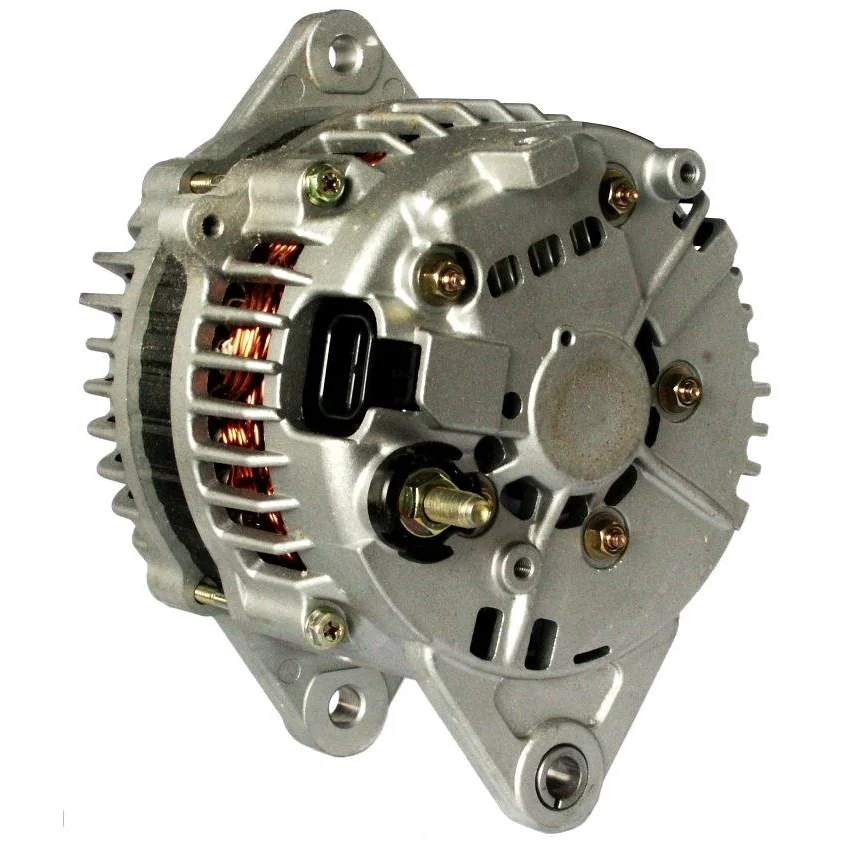

HC-Cargo Alternator

Technical info:

Voltage: 14, Current: 90, Rotation: CW, Mounting bracket distributor: 81.00

Description

Voltage: 14
Amp: 90
Pulley dist.: 42.00
Width/holder arm: 13.00
Mount. bracket dist.: 81.00
Bracket hole: 10.40
Belt. adj. brackethole pos.: 60
Belt. adj. bracket hole 1: 8.50
Pulley dia.: 86.00
Grooves/pulley: 1
Radius: 90.00
Radius 2: 86.00
B+: M8
Position/B+ in min.: 48
D+ Size: Plug
Rotation: CW
Plug no.: PL07
Total length mm: 171.00
Pulley: P
Alternator type: IR
Prod. info: BN
Servicing: Nissan

Files

  • OEM
    F032112351, ja1528ir, lr170-756, LR170-756B, lr190-734, LR190-734A, lr190-734b, lr190-734c, LR190-734D, lr190-734e, LR190-734F, lr190-734g, LR190-734H, 23100-2j600, 23100-2j601, 23100-7f700, 23100-7F701

  • Normalised article numbler
    a2021, a2021sr, alt32062, alth093, cal20137, dra0099, f032112351, f042a0h093, j5111079, ja1528ir, lr170756, lr170756b, lr190734, lr190734a, lr190734b, lr190734c, lr190734d, lr190734e, lr190734f, lr190734g, lr190734h, lra02341, lrb00501, 8el011711171, 9217, 13285n, 13285r, 22671r, 23341r, 111601, 112856, 210561, 210561a, 231002j600, 231002j601, 231007f700, 231007f701, 282890, 401528ri, 440874, 9212317, 12060741, 12060847, 227169902, 0986045651, 944390511790
  • Description
    Voltage: 14
    Amp: 90
    Pulley dist.: 42.00
    Width/holder arm: 13.00
    Mount. bracket dist.: 81.00
    Bracket hole: 10.40
    Belt. adj. brackethole pos.: 60
    Belt. adj. bracket hole 1: 8.50
    Pulley dia.: 86.00
    Grooves/pulley: 1
    Radius: 90.00
    Radius 2: 86.00
    B+: M8
    Position/B+ in min.: 48
    D+ Size: Plug
    Rotation: CW
    Plug no.: PL07
    Total length mm: 171.00
    Pulley: P
    Alternator type: IR
    Prod. info: BN
    Servicing: Nissan

    Files

  • Suitable for these vehicles

    • OEM
      F032112351, ja1528ir, lr170-756, LR170-756B, lr190-734, LR190-734A, lr190-734b, lr190-734c, LR190-734D, lr190-734e, LR190-734F, lr190-734g, LR190-734H, 23100-2j600, 23100-2j601, 23100-7f700, 23100-7F701

    • Normalised article numbler
      a2021, a2021sr, alt32062, alth093, cal20137, dra0099, f032112351, f042a0h093, j5111079, ja1528ir, lr170756, lr170756b, lr190734, lr190734a, lr190734b, lr190734c, lr190734d, lr190734e, lr190734f, lr190734g, lr190734h, lra02341, lrb00501, 8el011711171, 9217, 13285n, 13285r, 22671r, 23341r, 111601, 112856, 210561, 210561a, 231002j600, 231002j601, 231007f700, 231007f701, 282890, 401528ri, 440874, 9212317, 12060741, 12060847, 227169902, 0986045651, 944390511790
