Article no.: F032111319

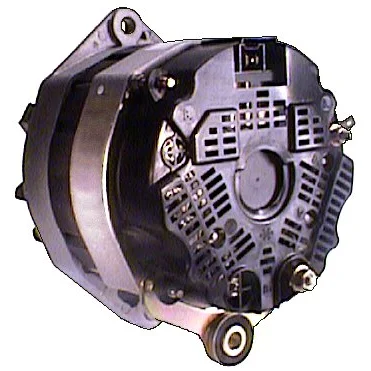

HC-Cargo Alternator

Technical info:

Voltage: 14, Amp: 105, Rotation: CW, Mounting bracket distributor: 66.00

Description

Renault Alternator 12V-110A 12V - 110A, single pulley, W For Yourex product order 90-480-1313

Voltage: 14
Amp: 105
Terminal: W
Pulley diameter: 48.50
Width/holder arm: 27.00
Mounting bracket diameter: 66.00
Bracket hole: 10.20
Belt adjustment bracket hole position: 60
Belt adjustment bracket hole 1: 8.20
Pulley diameter: 79.00
Grooves/pulley: 1
Radius: 87.50
Radius 2: 84.00
B+: M6
Position/B+ in min.: 27
D+ Size: Plug
Rotation: CW
Plug no.: PL27
W plug type: M5-6.30
Total length mm: 193.50
Pulley: P
Regulator type: IR
Prod. info: BN
Servicing: Renault

Files

  • OEM
    a13vi13, A14N140, a14n140, A14N73, a14n73, A14N75, a14n75, F032111319, 535ir, 111319, 2541197, 2541307, 2541307C, 2541307D, 5002781, 7700754850, 7700754852, 7700796914, 7700808647, 7701351764, 7701499441, 7701499446

  • Normalised article numbler
    a13vi13, a14n140, a14n73, a14n75, a3044, alt14095, cal15188, cal15195, dra3135, dra3137, dra3364, f032111319, fra840, lra00770, lra00771, na302, na398, qa3070, 8el011360821, 8el012429911, 8el725834001, 8el725835001, 535ir, 4303, 5140, 5141, 20771r, 30535ri, 55720, 55878, 56318, 111319, 118583, 118921, 200098, 200307, 210163, 210163a, 210565, 210565a, 282702, 282770, 432799, 433176, 433466, 436452, 436458, 746167, 746852, 746967, 2541197, 2541307, 2541307c, 2541307d, 5002781, 9040031, 12040030, 12040050, 35214350, 0986040031, 0986040051, 2301241052, 2301371102, 2303251052, 7700754850, 7700754852, 7700796914, 7700808647, 7701351764, 7701499441, 7701499446, 943356101010, 943356981010, 944390400310, 944390400510
  • Description
    Renault Alternator 12V-110A 12V - 110A, single pulley, W For Yourex product order 90-480-1313

    Voltage: 14
    Amp: 105
    Terminal: W
    Pulley diameter: 48.50
    Width/holder arm: 27.00
    Mounting bracket diameter: 66.00
    Bracket hole: 10.20
    Belt adjustment bracket hole position: 60
    Belt adjustment bracket hole 1: 8.20
    Pulley diameter: 79.00
    Grooves/pulley: 1
    Radius: 87.50
    Radius 2: 84.00
    B+: M6
    Position/B+ in min.: 27
    D+ Size: Plug
    Rotation: CW
    Plug no.: PL27
    W plug type: M5-6.30
    Total length mm: 193.50
    Pulley: P
    Regulator type: IR
    Prod. info: BN
    Servicing: Renault

    Files

  • Suitable for these vehicles

    • OEM
      a13vi13, A14N140, a14n140, A14N73, a14n73, A14N75, a14n75, F032111319, 535ir, 111319, 2541197, 2541307, 2541307C, 2541307D, 5002781, 7700754850, 7700754852, 7700796914, 7700808647, 7701351764, 7701499441, 7701499446

    • Normalised article numbler
      a13vi13, a14n140, a14n73, a14n75, a3044, alt14095, cal15188, cal15195, dra3135, dra3137, dra3364, f032111319, fra840, lra00770, lra00771, na302, na398, qa3070, 8el011360821, 8el012429911, 8el725834001, 8el725835001, 535ir, 4303, 5140, 5141, 20771r, 30535ri, 55720, 55878, 56318, 111319, 118583, 118921, 200098, 200307, 210163, 210163a, 210565, 210565a, 282702, 282770, 432799, 433176, 433466, 436452, 436458, 746167, 746852, 746967, 2541197, 2541307, 2541307c, 2541307d, 5002781, 9040031, 12040030, 12040050, 35214350, 0986040031, 0986040051, 2301241052, 2301371102, 2303251052, 7700754850, 7700754852, 7700796914, 7700808647, 7701351764, 7701499441, 7701499446, 943356101010, 943356981010, 944390400310, 944390400510
