Article no.: F032113432

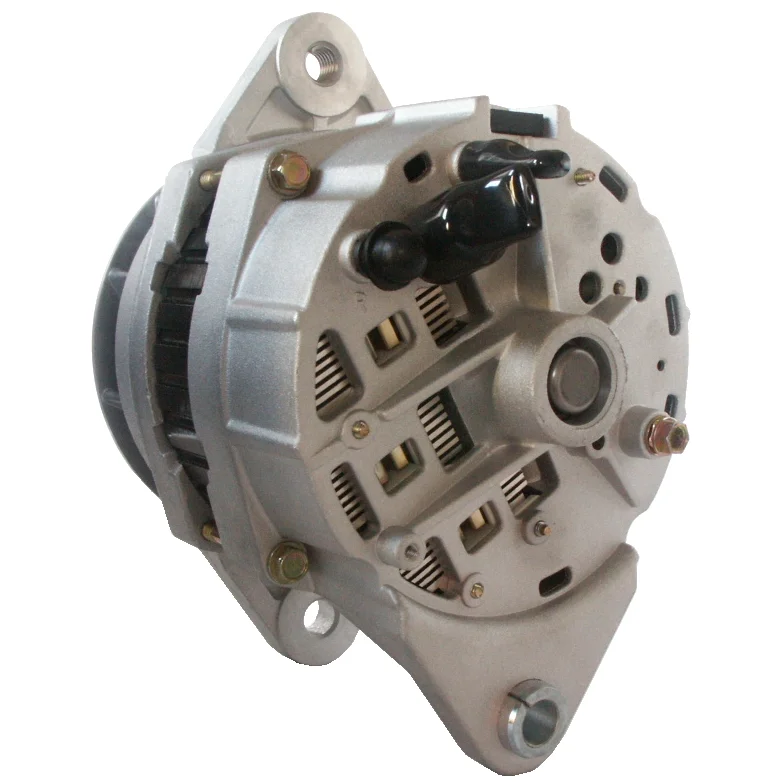

HC-Cargo Alternator

Technical info:

Voltage: 14, Amp: 145, Rotation: CW/CCW, Mount. bracket dist.: 101.20

Description

Voltage: 14
Amp: 145
Terminal: W
Width/holder arm: 14.30
Mounting bracket distance: 101.20
Bracket hole: 13.00
Belt adjustment bracket hole position: 60
Belt adjustment bracket hole 1: 1/2" UNC
Radius: 98.00
Radius 2: 98.00
B+: M6
Position/B+ in min.: 52
D+ Size: 10-24 UNC
Rotation: CW/CCW
W plug type: 10-24 UNC
Total length mm: 223.00
Pulley: without
Regulator type: IR
Product information: BN
Servicing: Volvo
Remarks: Replacing: 21SI. Negative grounding. One-wire system. B+: 1/4".

Files

  • OEM
    F032113432, 321-688, 1117916, 1117924, 1117933, 1117948, 1117952, 10459050, 10459051, 19010156

  • Normalised article numbler
    a1065s, a1350, a1360, adr0061, bao3131, f032113432, 7525, 7644, 7644n, 7644r, 7685n, 7685n1, 7685r, 201108, 291870, 321688, 553360ri, 726812, 1117916, 1117924, 1117933, 1117948, 1117952, 1229900dr, 1229900dr1, 2011081, 10121103, 10121108, 10459050, 10459051, 12090150, 19010156, 90014072
  • Description
    Voltage: 14
    Amp: 145
    Terminal: W
    Width/holder arm: 14.30
    Mounting bracket distance: 101.20
    Bracket hole: 13.00
    Belt adjustment bracket hole position: 60
    Belt adjustment bracket hole 1: 1/2" UNC
    Radius: 98.00
    Radius 2: 98.00
    B+: M6
    Position/B+ in min.: 52
    D+ Size: 10-24 UNC
    Rotation: CW/CCW
    W plug type: 10-24 UNC
    Total length mm: 223.00
    Pulley: without
    Regulator type: IR
    Product information: BN
    Servicing: Volvo
    Remarks: Replacing: 21SI. Negative grounding. One-wire system. B+: 1/4".

    Files

  • Suitable for these vehicles

    • OEM
      F032113432, 321-688, 1117916, 1117924, 1117933, 1117948, 1117952, 10459050, 10459051, 19010156

    • Normalised article numbler
      a1065s, a1350, a1360, adr0061, bao3131, f032113432, 7525, 7644, 7644n, 7644r, 7685n, 7685n1, 7685r, 201108, 291870, 321688, 553360ri, 726812, 1117916, 1117924, 1117933, 1117948, 1117952, 1229900dr, 1229900dr1, 2011081, 10121103, 10121108, 10459050, 10459051, 12090150, 19010156, 90014072
