Article no.: F032113517

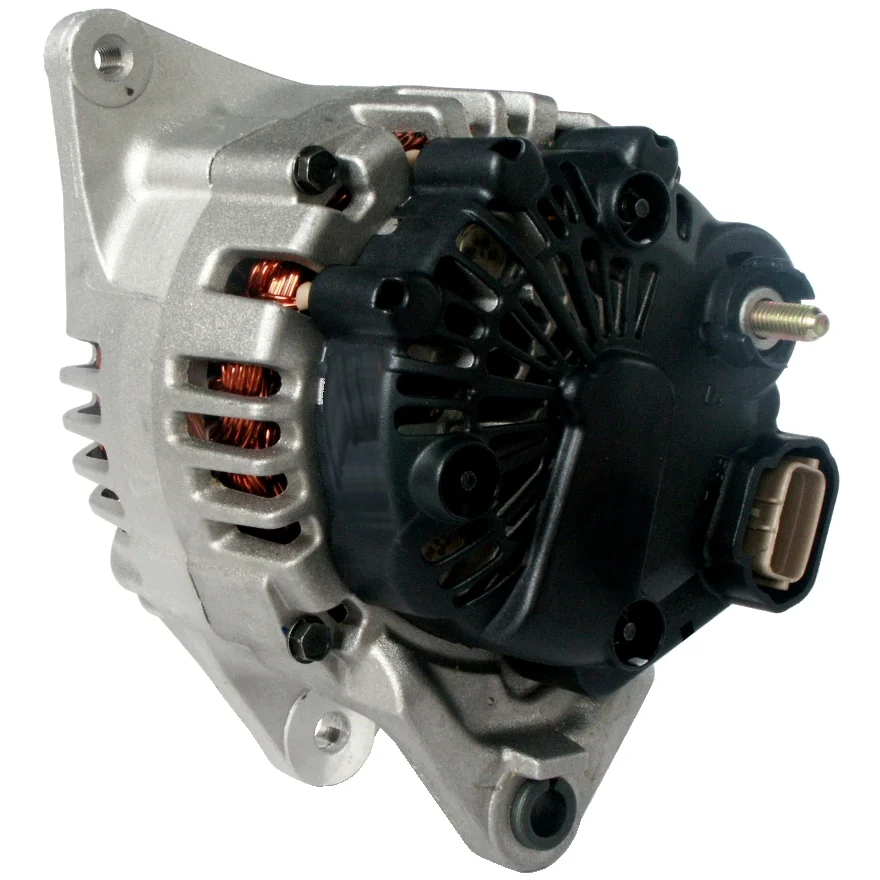

HC-Cargo Alternator

Technical info:

Voltage: 14, Amp: 110, Rotation: CW, Mounting bracket distributor: 66.50

Description

Voltage: 14
Amp: 110
Pulley dist.: 38.20
Width/holder arm: 13.00
Mount. bracket dist.: 66.50
Bracket hole: 10.20
Belt. adj. brackethole pos.: 7
Belt. adj. bracket hole 1: M8
Pulley dia.: 59.70
Grooves/pulley: 4
Radius: 88.50
Radius 2: 95.50
B+: M8
Position/B+ in min.: 10
D+ Size: Plug
Rotation: CW
Plug no.: PL68
Total length mm: 176.50
Pulley: SP
Regulator type: IR
Prod. info: BN
Servicing: Hyundai

Files

  • OEM
    AB195141, F032113517, ja1718ir, TA000A44301, 37300-38700, 37300-38710

  • Normalised article numbler
    a9017, ab195141, dra4177, f032113517, ja1718ir, ta000a44301, 0986ar0761, 11001, 11001n, 11001r, 11027n, 11027r, 12311, 111849, 284597, 401718ri, 600849, 9212556, 12060877, 226164952, 3730038700, 3730038710, 944390605110
  • Description
    Voltage: 14
    Amp: 110
    Pulley dist.: 38.20
    Width/holder arm: 13.00
    Mount. bracket dist.: 66.50
    Bracket hole: 10.20
    Belt. adj. brackethole pos.: 7
    Belt. adj. bracket hole 1: M8
    Pulley dia.: 59.70
    Grooves/pulley: 4
    Radius: 88.50
    Radius 2: 95.50
    B+: M8
    Position/B+ in min.: 10
    D+ Size: Plug
    Rotation: CW
    Plug no.: PL68
    Total length mm: 176.50
    Pulley: SP
    Regulator type: IR
    Prod. info: BN
    Servicing: Hyundai

    Files

  • Suitable for these vehicles

    • OEM
      AB195141, F032113517, ja1718ir, TA000A44301, 37300-38700, 37300-38710

    • Normalised article numbler
      a9017, ab195141, dra4177, f032113517, ja1718ir, ta000a44301, 0986ar0761, 11001, 11001n, 11001r, 11027n, 11027r, 12311, 111849, 284597, 401718ri, 600849, 9212556, 12060877, 226164952, 3730038700, 3730038710, 944390605110
