Article no.: F032113533

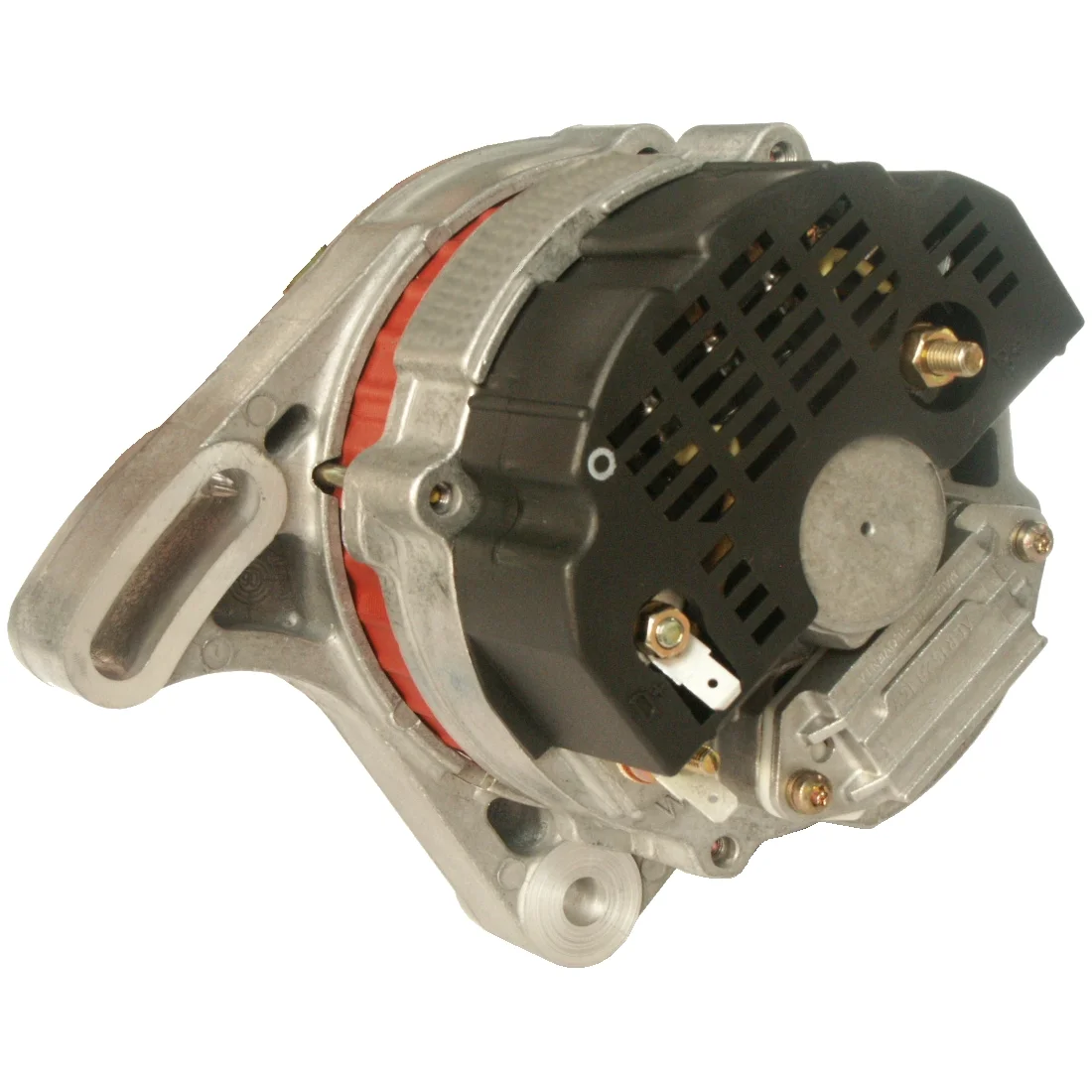

HC-Cargo Alternator

Technical info:

Voltage: 14, Amp: 65, Rotation: CW, Pulley dia.: 69.50

Description

Voltage: 14
Amp: 65
Terminal: W
Pulley distance: 52.00
Width/holder arm: 31.80
Bracket hole: 10.30
Belt. adjustment bracket hole position: 17
Belt. adjustment bracket hole 1: 11.00
Pulley diameter: 69.50
Grooves/pulley: 1
Radius: 85.00
B+: M6
Position/B+ in min.: 2
D+ Size: 6.30
Rotation: CW
W plug type: M5-6.30
Total length mm: 160.00
Pulley: P
Regulator type: IR
Prod. info: BN
Servicing: Fiat

Files

  • OEM
    aak4569, ED0011572700, F032113533, 11.201.711, 0011572700, 11572700, 12850977, 63320111, 63321190

  • Normalised article numbler
    a9227, aak4569, cal21165, ed0011572700, f032113533, ia0711, lra01579, mg21, 22579n, 282716, 11201711, 0011572700, 11572700, 12850977, 63320111, 63321190
  • Description
    Voltage: 14
    Amp: 65
    Terminal: W
    Pulley distance: 52.00
    Width/holder arm: 31.80
    Bracket hole: 10.30
    Belt. adjustment bracket hole position: 17
    Belt. adjustment bracket hole 1: 11.00
    Pulley diameter: 69.50
    Grooves/pulley: 1
    Radius: 85.00
    B+: M6
    Position/B+ in min.: 2
    D+ Size: 6.30
    Rotation: CW
    W plug type: M5-6.30
    Total length mm: 160.00
    Pulley: P
    Regulator type: IR
    Prod. info: BN
    Servicing: Fiat

    Files

  • Suitable for these vehicles

    • OEM
      aak4569, ED0011572700, F032113533, 11.201.711, 0011572700, 11572700, 12850977, 63320111, 63321190

    • Normalised article numbler
      a9227, aak4569, cal21165, ed0011572700, f032113533, ia0711, lra01579, mg21, 22579n, 282716, 11201711, 0011572700, 11572700, 12850977, 63320111, 63321190
