HC-Cargo Alternator
HC-Cargo Alternator
Article no.: F032113543

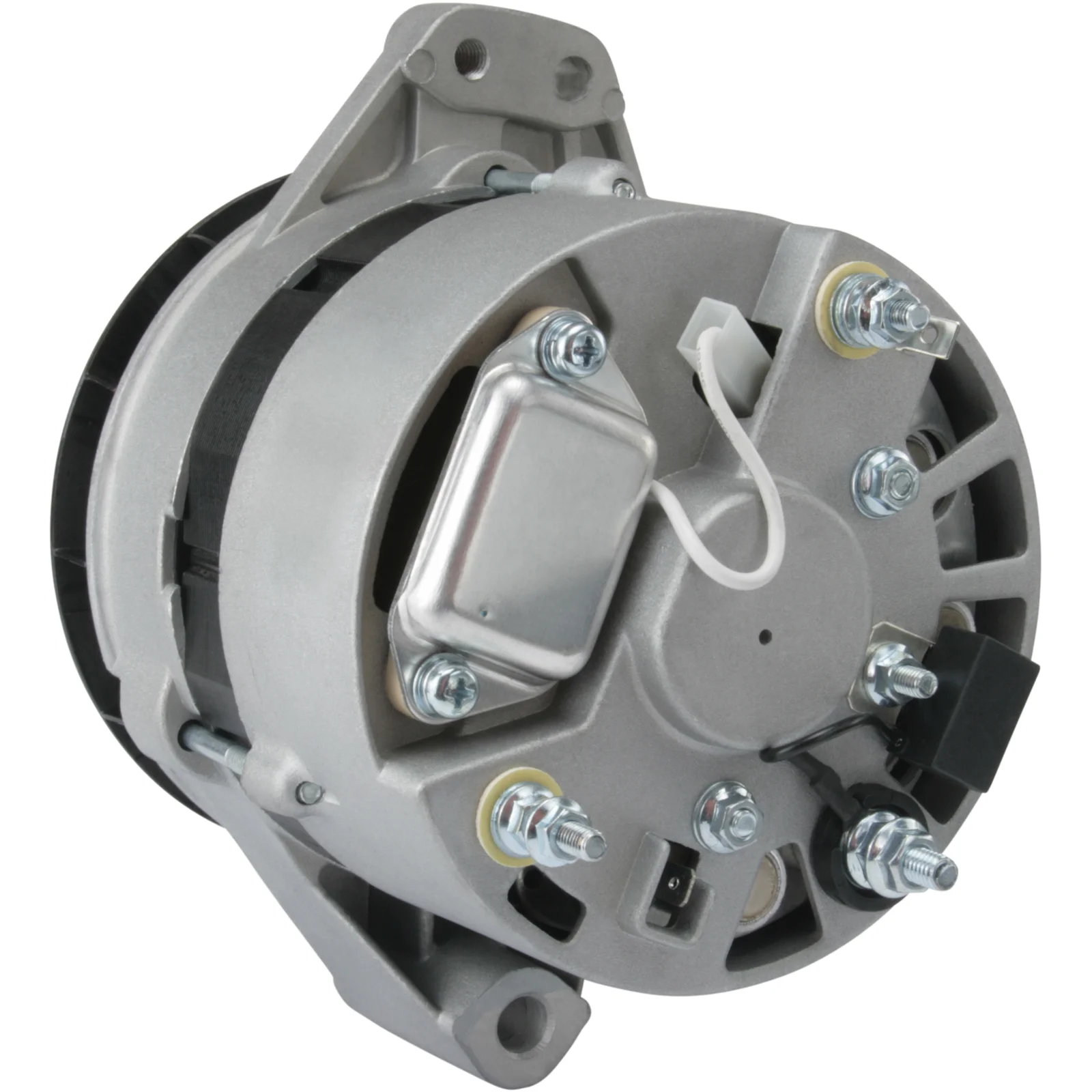

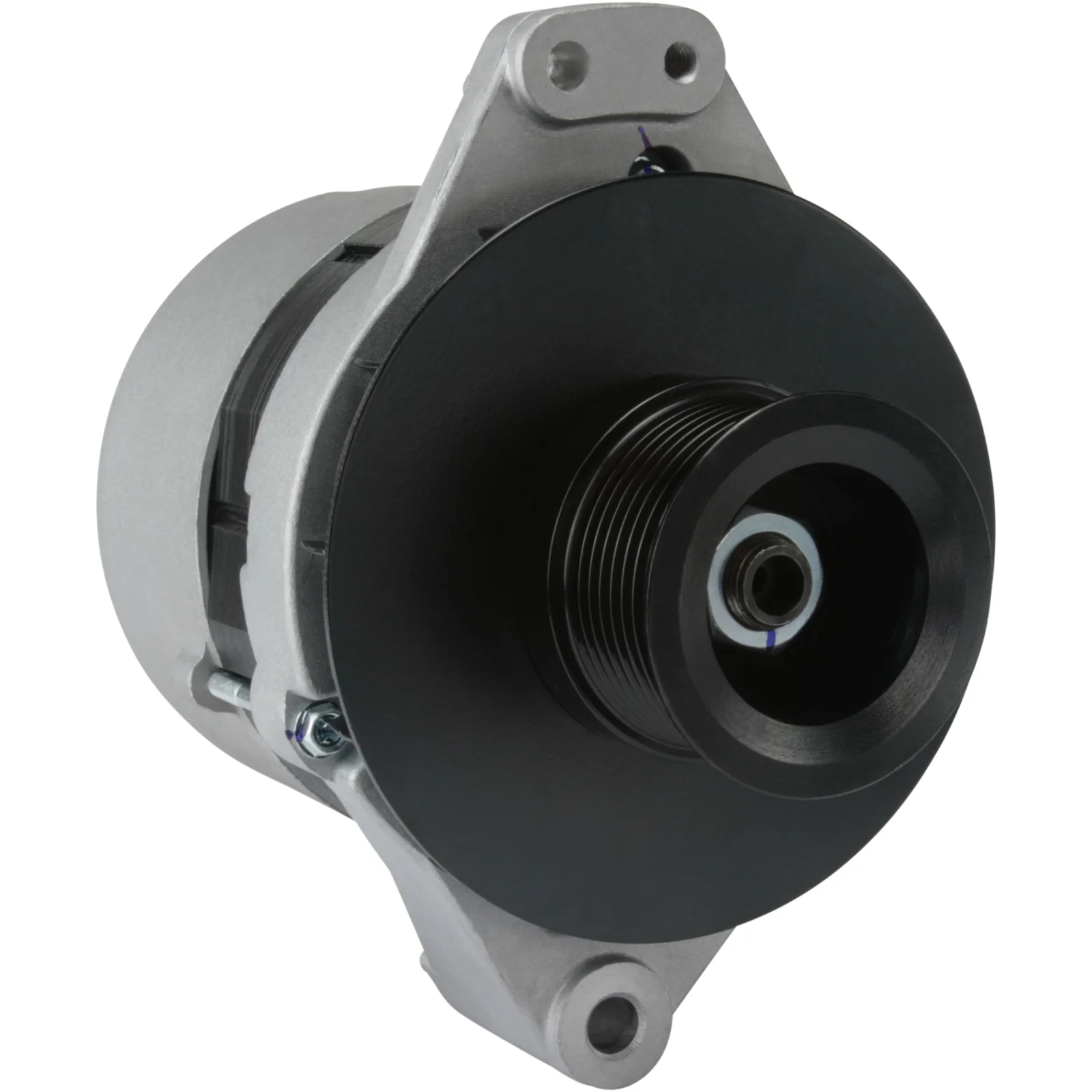

HC-Cargo Alternator

Technical info:

Voltage: 14, Amp: 55, Rotation: CW, Pulley diameter: 60.00

Description

Voltage: 14
Amp: 55
Terminal: W
Pulley diameter: 78.40
Width/holder arm: 50.70
Bracket hole: 10.20
Belt. adjustment bracket hole position: 57
Belt. adjustment bracket hole position 2: 60
Belt. adjustment bracket hole 1: 8.20
Belt. adjustment bracket hole 2: M8
Pulley diameter: 60.00
Grooves/pulley: 8
Radius: 83.00
Radius 2: 87.00
B+: M6
Position/B+ in min.: 25
D+ Size: M5
Rotation: CW
W plug type: M5-6.30
Total length mm: 190.00
Pulley: SP
Regulator type: IR
Prod. info: BN
Servicing: John Deere lawn equipment with cooling engine

Files

  • OEM
    F032113543, LRA02116, RE501634, re506196, RE57960, 501823, 9515241, 9516241, 443113515241, 443113516241

  • Normalised article numbler
    a6330, a9038, alt41000, ama0001, cal48109, dra0019, f032113543, lra02116, re501634, re506196, re57960, 2423, 12130, 12130n, 12140n, 501823, 553068ri, 9515241, 9516241, 12090322, 90369504, 635005055, 443113515241, 443113516241
  • Description
    Voltage: 14
    Amp: 55
    Terminal: W
    Pulley diameter: 78.40
    Width/holder arm: 50.70
    Bracket hole: 10.20
    Belt. adjustment bracket hole position: 57
    Belt. adjustment bracket hole position 2: 60
    Belt. adjustment bracket hole 1: 8.20
    Belt. adjustment bracket hole 2: M8
    Pulley diameter: 60.00
    Grooves/pulley: 8
    Radius: 83.00
    Radius 2: 87.00
    B+: M6
    Position/B+ in min.: 25
    D+ Size: M5
    Rotation: CW
    W plug type: M5-6.30
    Total length mm: 190.00
    Pulley: SP
    Regulator type: IR
    Prod. info: BN
    Servicing: John Deere lawn equipment with cooling engine

    Files

  • Suitable for these vehicles

    • OEM
      F032113543, LRA02116, RE501634, re506196, RE57960, 501823, 9515241, 9516241, 443113515241, 443113516241

    • Normalised article numbler
      a6330, a9038, alt41000, ama0001, cal48109, dra0019, f032113543, lra02116, re501634, re506196, re57960, 2423, 12130, 12130n, 12140n, 501823, 553068ri, 9515241, 9516241, 12090322, 90369504, 635005055, 443113515241, 443113516241
