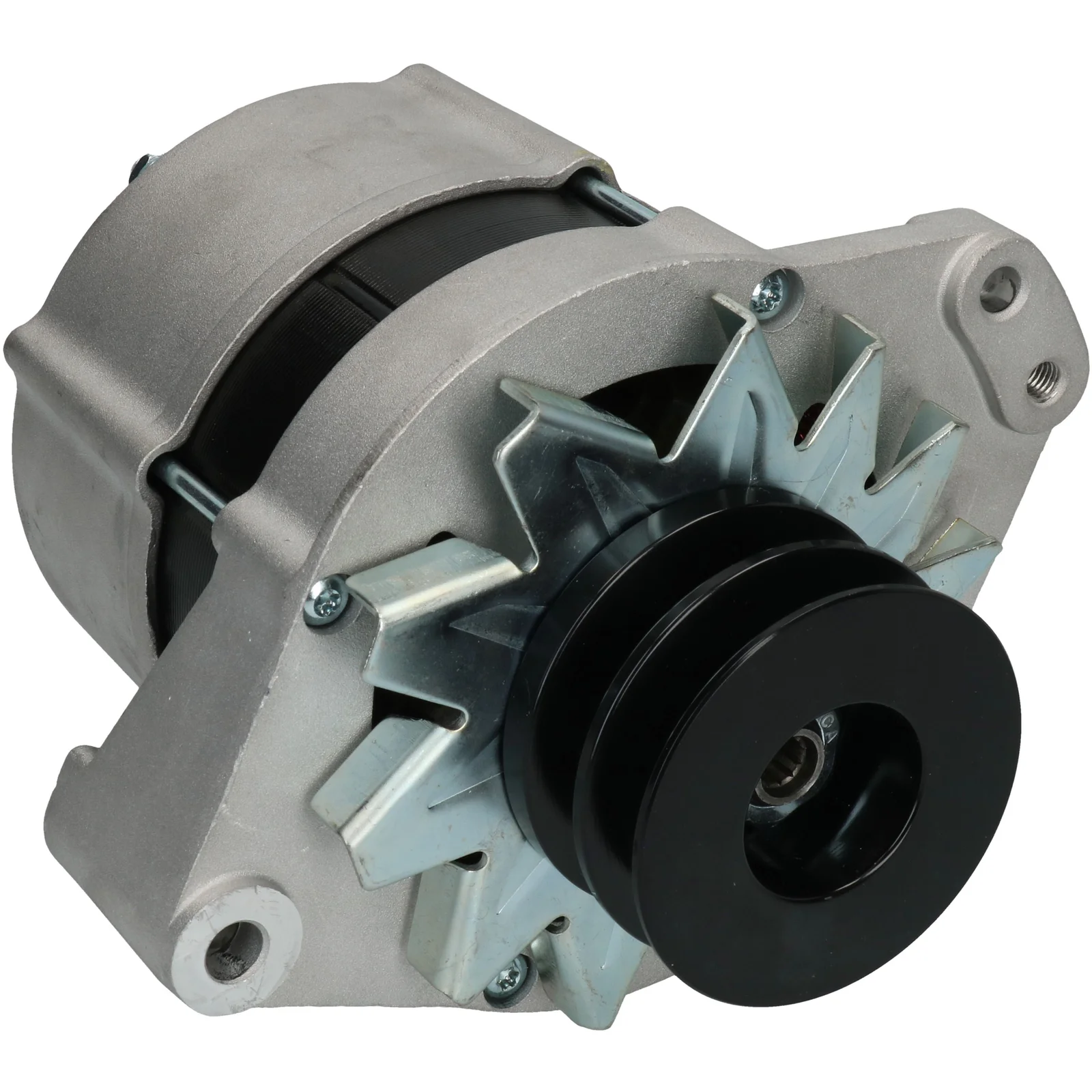

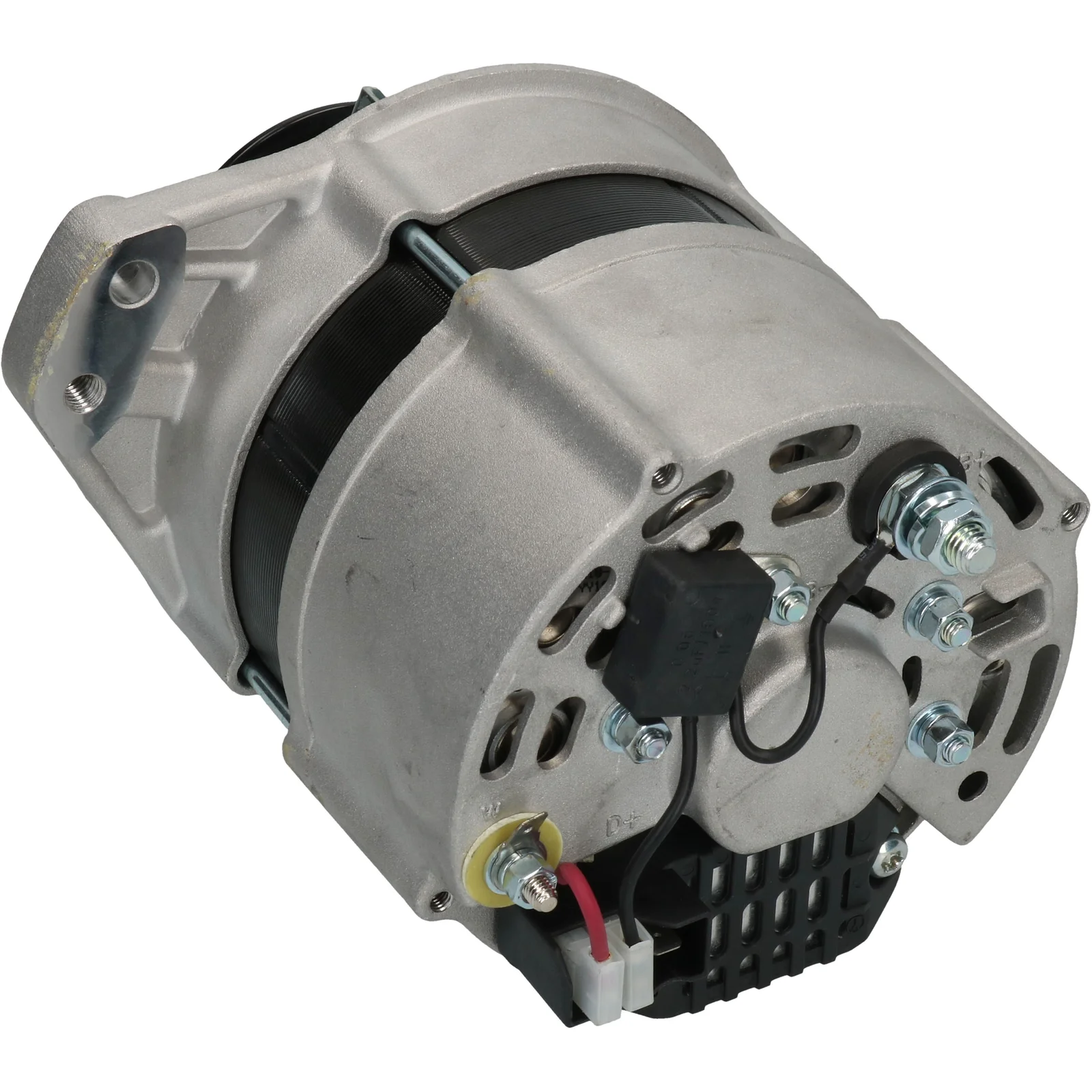

HC-Cargo Alternator
HC-Cargo Alternator
Article no.: F032113552

HC-Cargo Alternator

Technical info:

Voltage: 14, Amperage: 120, Rotation: CW, Pulley diameter: 71.50

Description

Voltage: 14
Amp: 120
Terminal: W
Pulley dist.: 77.00
Width/holder arm: 50.80
Bracket hole: 10.20
Belt. adj. brackethole pos.: 58
Belt. adj. brackethole pos. 2: 60
Belt. adj. bracket hole 1: 8.00
Belt. adj. bracket hole 2: M8
Pulley dia.: 71.50
Grooves/pulley: 2
Radius: 86.00
Radius 2: 87.00
Radius 3: 87.00
B+: M8
Position/B+ in min.: 15
D+ Size: 6.30
Rotation: CW
W plug type: M5
Total length mm: 198.00
Pulley: DP
Regulator type: IR
Prod. info: BN
Servicing: Case

Files

  • OEM
    F032113552, 9515112, 9515122, 9515125, 87326219, 142000090120, 142000090220, 162000090120

  • Normalised article numbler
    a9031, f032113552, 553320ri, 9515112, 9515122, 9515125, 87326219, 635008095, 635008120, 142000090120, 142000090220, 162000090120
  • Description
    Voltage: 14
    Amp: 120
    Terminal: W
    Pulley dist.: 77.00
    Width/holder arm: 50.80
    Bracket hole: 10.20
    Belt. adj. brackethole pos.: 58
    Belt. adj. brackethole pos. 2: 60
    Belt. adj. bracket hole 1: 8.00
    Belt. adj. bracket hole 2: M8
    Pulley dia.: 71.50
    Grooves/pulley: 2
    Radius: 86.00
    Radius 2: 87.00
    Radius 3: 87.00
    B+: M8
    Position/B+ in min.: 15
    D+ Size: 6.30
    Rotation: CW
    W plug type: M5
    Total length mm: 198.00
    Pulley: DP
    Regulator type: IR
    Prod. info: BN
    Servicing: Case

    Files

  • Suitable for these vehicles

    • OEM
      F032113552, 9515112, 9515122, 9515125, 87326219, 142000090120, 142000090220, 162000090120

    • Normalised article numbler
      a9031, f032113552, 553320ri, 9515112, 9515122, 9515125, 87326219, 635008095, 635008120, 142000090120, 142000090220, 162000090120
