Article no.: F032113868

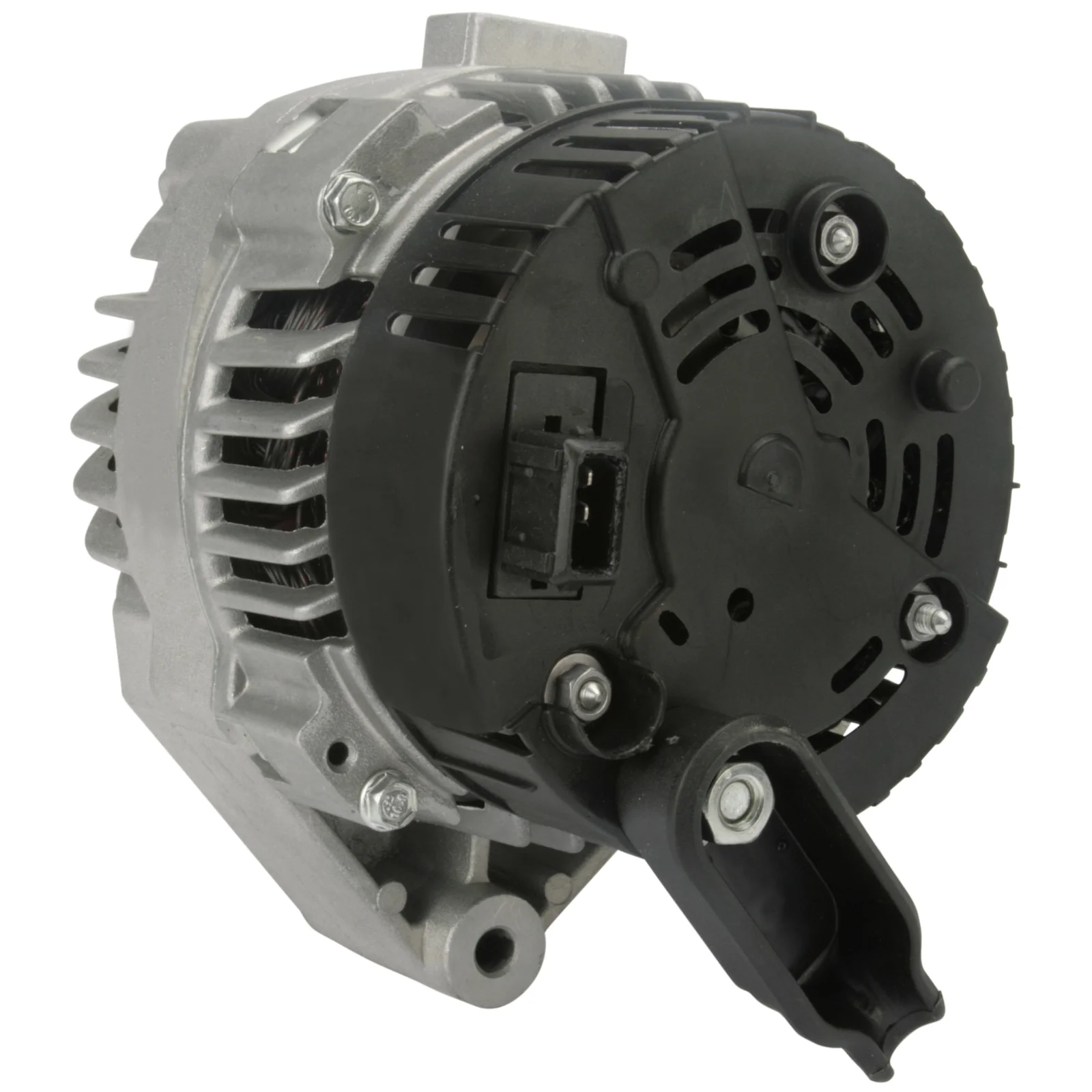

HC-Cargo Alternator

Technical info:

Voltage: 14, Amp: 95, Rotation: CW, Pulley diameter: 54.00

Description

Voltage: 14
Amp: 95
Pulley dist.: 77.50
Width/holder arm: 56.00
Bracket hole: 8.00
Belt. adj. brackethole pos.: 50
Belt. adj. bracket hole 1: 8.00
Pulley dia.: 54.00
Grooves/pulley: 5
Radius: 90.00
Radius 2: 90.00
B+: M8
Position/B+ in min.: 32
D+ Size: Plug
Rotation: CW
Plug no.: PL113
Pulley: SP
Prod. info: BN
Servicing: BMW

Files

  • OEM
    a13vi97, F032113868, 1247ir, 2245576, 2245654, 2541770, 2541770A, 12312245576, 12312245576A, 12312245654

  • Normalised article numbler
    a13vi97, a3066, alth166, cal15231, dra9831, f032113868, f042a0h166, lra01720, na526, 8el012426561, 8el737380001, 1247ir, 4542, 5699, 22720r, 118826, 200143, 200145, 210084, 210084a, 282984, 301247ri, 436607, 439053, 746889, 747894, 2245576, 2245654, 2541770, 2541770a, 12039830, 32039831, 215133952, 0986039831, 12312245576, 12312245576a, 12312245654, 943355019010, 944390398310
  • Description
    Voltage: 14
    Amp: 95
    Pulley dist.: 77.50
    Width/holder arm: 56.00
    Bracket hole: 8.00
    Belt. adj. brackethole pos.: 50
    Belt. adj. bracket hole 1: 8.00
    Pulley dia.: 54.00
    Grooves/pulley: 5
    Radius: 90.00
    Radius 2: 90.00
    B+: M8
    Position/B+ in min.: 32
    D+ Size: Plug
    Rotation: CW
    Plug no.: PL113
    Pulley: SP
    Prod. info: BN
    Servicing: BMW

    Files

  • Suitable for these vehicles

    • OEM
      a13vi97, F032113868, 1247ir, 2245576, 2245654, 2541770, 2541770A, 12312245576, 12312245576A, 12312245654

    • Normalised article numbler
      a13vi97, a3066, alth166, cal15231, dra9831, f032113868, f042a0h166, lra01720, na526, 8el012426561, 8el737380001, 1247ir, 4542, 5699, 22720r, 118826, 200143, 200145, 210084, 210084a, 282984, 301247ri, 436607, 439053, 746889, 747894, 2245576, 2245654, 2541770, 2541770a, 12039830, 32039831, 215133952, 0986039831, 12312245576, 12312245576a, 12312245654, 943355019010, 944390398310
