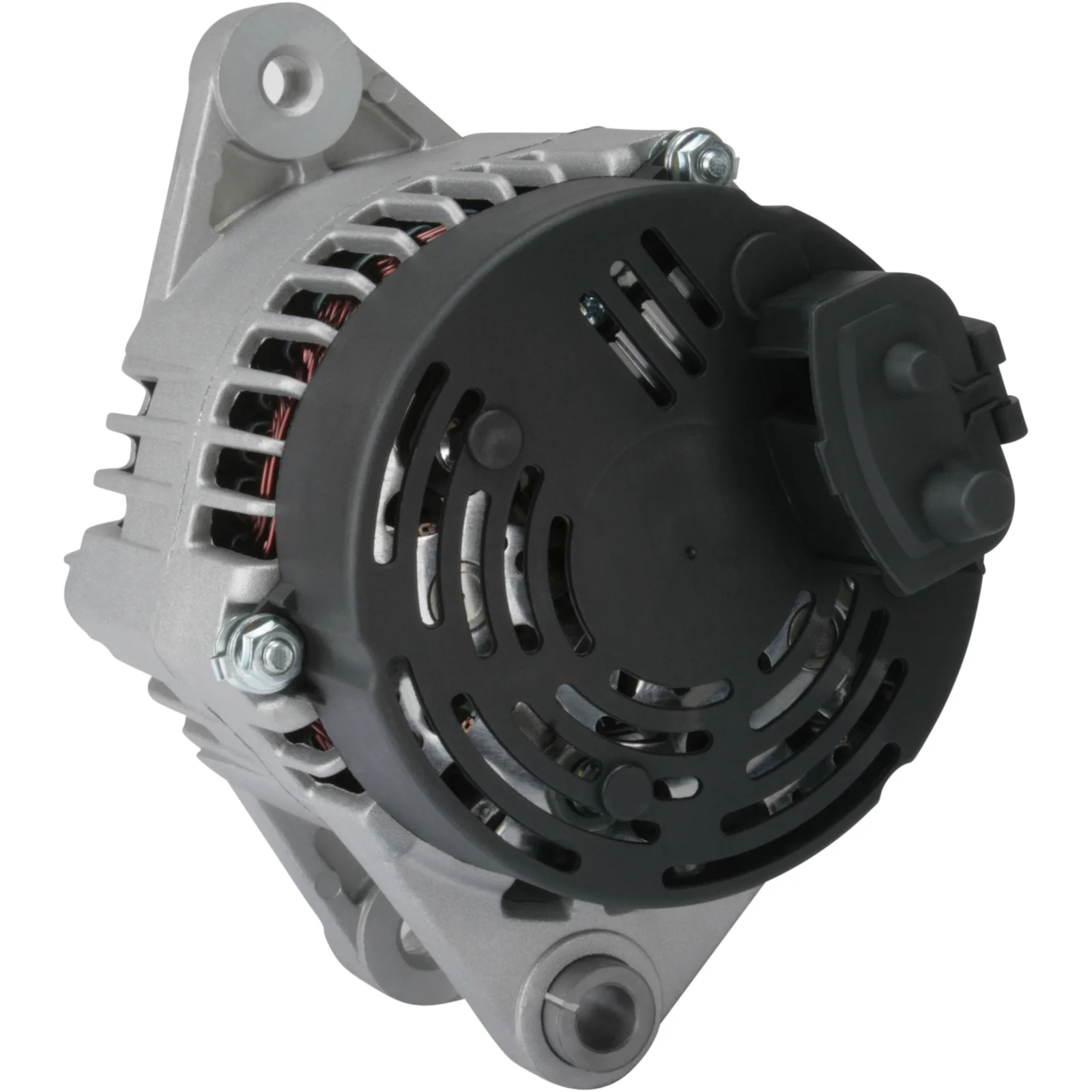

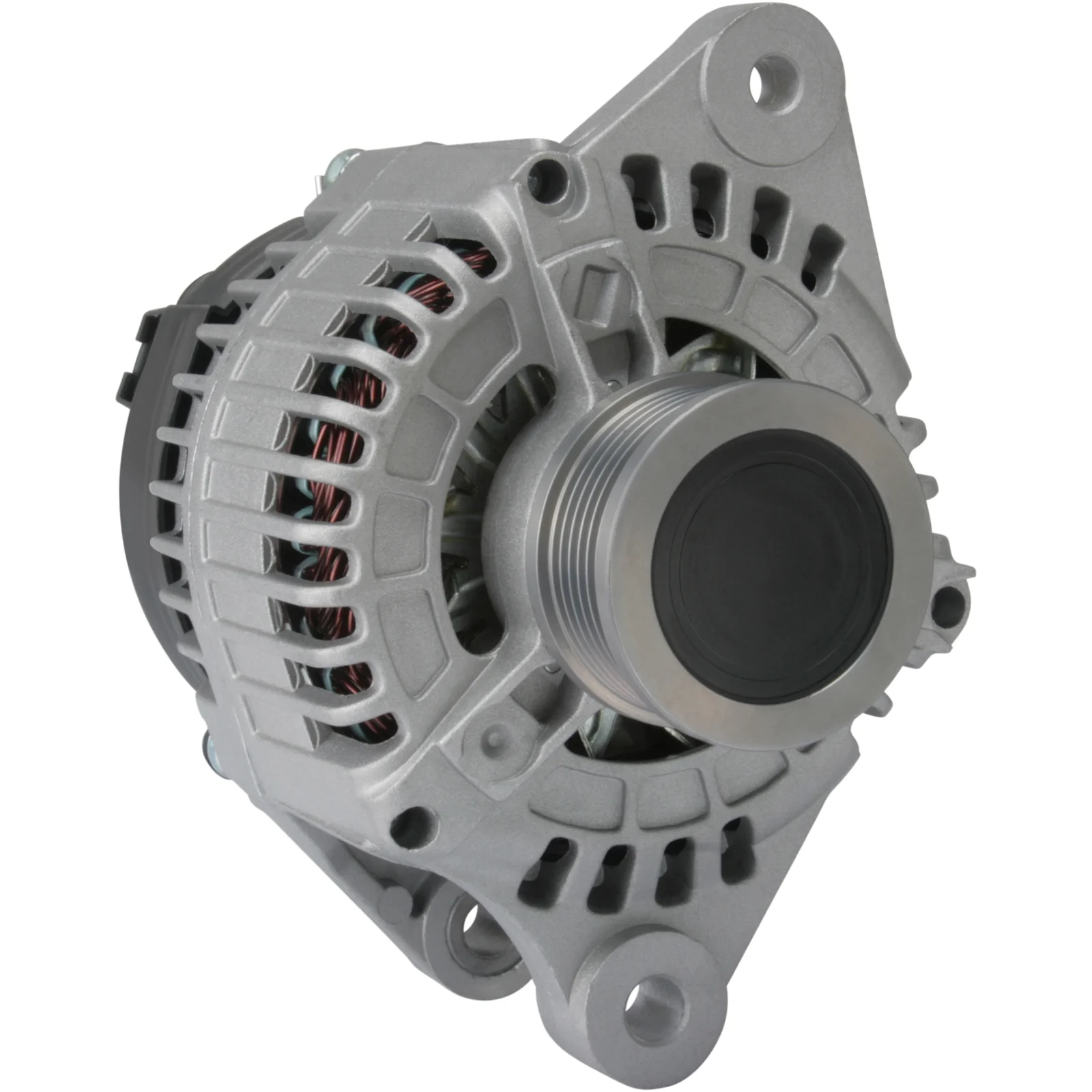

HC-Cargo Alternator
HC-Cargo Alternator
Article no.: F032113943

HC-Cargo Alternator

Technical info:

Voltage: 14, Amp: 100, Rotation: CW, Mounting bracket dist.: 54.70

Description

Voltage: 14
Amp: 100
Pulley dist.: 44.00
Width/holder arm: 22.20
Mount. bracket dist.: 54.70
Bracket hole: 12.20
Belt. adj. brackethole pos.: 3
Belt. adj. bracket hole 1: 10.20
Pulley dia.: 60.50
Grooves/pulley: 6
Radius: 90.00
Radius 2: 90.00
B+: M8
Position/B+ in min.: 12
D+ Size: M5
Rotation: CW
Plug no.: PL106
Pulley: SP/FW
Fan: IF
Regulator type: IR

Files

  • OEM
    F032113943, MAN1101, 1558ir, 1986A00592, 1986A01193, 101210-1510, 46544329, 46554408, 46763533, 46763534, 46765838, 46774430, 46782212, 46782213, 51859053, 60815953, 60816045, 60816557, 63321414, 63321497, 63321501, 63321804, 63321805, 63321806, 63321826, 71780052

  • Normalised article numbler
    a4043, a4043denso, a4043er, a4043p, a4043pina, a4043pr, a4043sr, a4077, alt12065, alt4237, cal30103, cal30186, dan501, dan642, dendan501, dra3399, dra3768, dra3768x, dra4206x, f032113943, f042208019, f042a07029, ga16826, lea0686, lra01887, lra02105, lra03259, man1101, 8el011360301, 8el011710501, 8el011710691, 8el737812001, 1558ir, 1986a00592, 1986a01193, 4497, 23104n, 23105n, 111766, 210263, 210263a, 210863, 210863a, 283750, 284546, 301558ri, 440802, 443066, 443089, 32321859, 46544329, 46554408, 46763533, 46763534, 46765838, 46774430, 46782212, 46782213, 51859053, 60815953, 60816045, 60816557, 63321414, 63321497, 63321501, 63321804, 63321805, 63321806, 063321826, 63321826, 71780052, 105505090, 105505100, 0986049231, 1012101510, 063321729010, 063321806010, 063321819010, 63321819010, 063321826010, 63321826010
  • Description
    Voltage: 14
    Amp: 100
    Pulley dist.: 44.00
    Width/holder arm: 22.20
    Mount. bracket dist.: 54.70
    Bracket hole: 12.20
    Belt. adj. brackethole pos.: 3
    Belt. adj. bracket hole 1: 10.20
    Pulley dia.: 60.50
    Grooves/pulley: 6
    Radius: 90.00
    Radius 2: 90.00
    B+: M8
    Position/B+ in min.: 12
    D+ Size: M5
    Rotation: CW
    Plug no.: PL106
    Pulley: SP/FW
    Fan: IF
    Regulator type: IR

    Files

  • Suitable for these vehicles

    • OEM
      F032113943, MAN1101, 1558ir, 1986A00592, 1986A01193, 101210-1510, 46544329, 46554408, 46763533, 46763534, 46765838, 46774430, 46782212, 46782213, 51859053, 60815953, 60816045, 60816557, 63321414, 63321497, 63321501, 63321804, 63321805, 63321806, 63321826, 71780052

    • Normalised article numbler
      a4043, a4043denso, a4043er, a4043p, a4043pina, a4043pr, a4043sr, a4077, alt12065, alt4237, cal30103, cal30186, dan501, dan642, dendan501, dra3399, dra3768, dra3768x, dra4206x, f032113943, f042208019, f042a07029, ga16826, lea0686, lra01887, lra02105, lra03259, man1101, 8el011360301, 8el011710501, 8el011710691, 8el737812001, 1558ir, 1986a00592, 1986a01193, 4497, 23104n, 23105n, 111766, 210263, 210263a, 210863, 210863a, 283750, 284546, 301558ri, 440802, 443066, 443089, 32321859, 46544329, 46554408, 46763533, 46763534, 46765838, 46774430, 46782212, 46782213, 51859053, 60815953, 60816045, 60816557, 63321414, 63321497, 63321501, 63321804, 63321805, 63321806, 063321826, 63321826, 71780052, 105505090, 105505100, 0986049231, 1012101510, 063321729010, 063321806010, 063321819010, 63321819010, 063321826010, 63321826010
