Article no.: F032111339

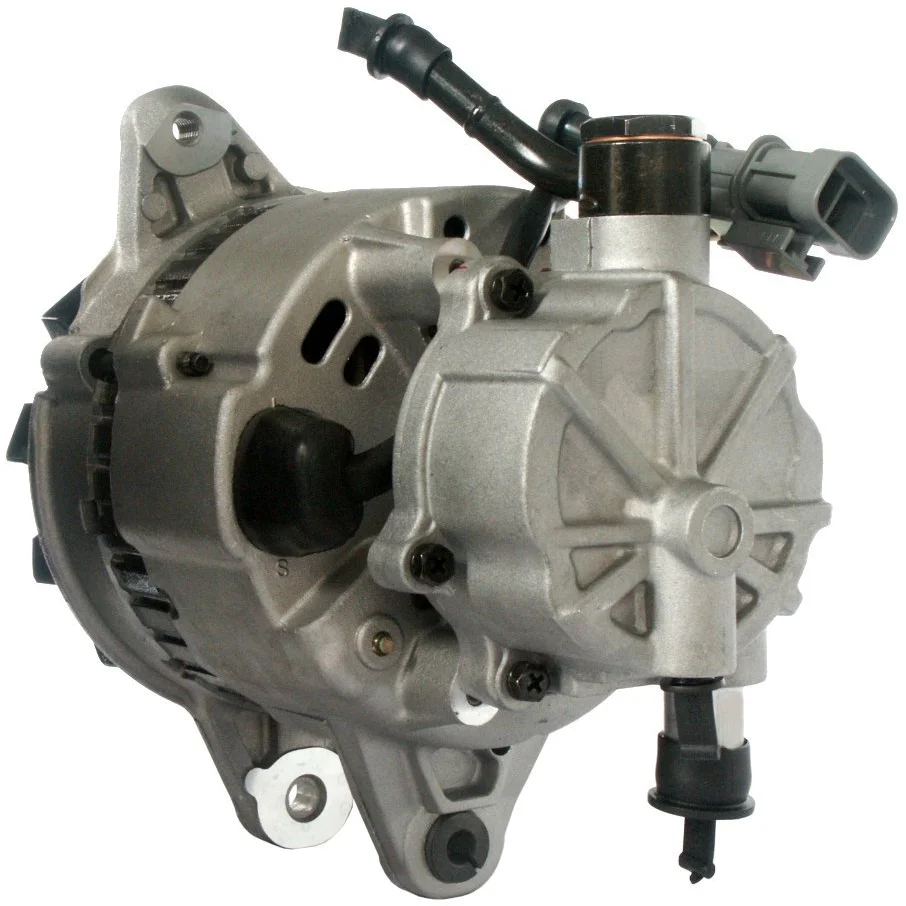

HC-Cargo Alternator

Technical info:

Voltage: 14, Amps: 65, Rotation: CW, Mounting bracket distributor: 54.00

Description

Mitsubishi Generator 12V-65A 12V - 65A, 1V, (S, L) For Yourrex product order 90-380-0674 Voltage: 14 Amp: 65 Pulley distance: 44.50 Width/holder arm: 13.00 Mounting bracket distance: 54.00 Bracket hole: 8.20 Belt adjustment bracket hole position: 3 Belt adjustment bracket hole 1: M8 Pulley diameter: 82.00 Grooves/pulley: 1 Radius: 90.00 Radius 2: 87.00 B+: M6 Position/B+ in min.: 7 Rotation: CW Plug no.: PL07 Total length mm: 275.00 Pulley: P Regulator type: IR Vacuum pump: Yes Product info: BN Servicing: Mitsubishi

Files

  • OEM
    A002T17783, A002T27883, A2T-17783, A2T11783, a2t17783, A2T27883, a2t27883, F032111339, had165504, ja674ir, MD 147245, MD140189, md140189, md147245, TA000A61901, 111339

  • Normalised article numbler
    a002t17783, a002t27883, a2t11783, a2t17783, a2t27883, a5018, alt31056, alth037, cal35117, dra3194, dra3194n, f032111339, f042a0h037, had165504, j5115047, ja674ir, lea0204, lrb00225, md140189, md147245, qa3190, ta000a61901, 8el011711401, 8el726389001, 5359, 12627n, 40674ri, 111339, 119436, 210281, 210281a, 281701, 600003, 2751524, 12060166, 155809065, 226123652, 226126652, 0986042311, 943354007010
  • Description
    Mitsubishi Generator 12V-65A 12V - 65A, 1V, (S, L) For Yourrex product order 90-380-0674 Voltage: 14 Amp: 65 Pulley distance: 44.50 Width/holder arm: 13.00 Mounting bracket distance: 54.00 Bracket hole: 8.20 Belt adjustment bracket hole position: 3 Belt adjustment bracket hole 1: M8 Pulley diameter: 82.00 Grooves/pulley: 1 Radius: 90.00 Radius 2: 87.00 B+: M6 Position/B+ in min.: 7 Rotation: CW Plug no.: PL07 Total length mm: 275.00 Pulley: P Regulator type: IR Vacuum pump: Yes Product info: BN Servicing: Mitsubishi

    Files

  • Suitable for these vehicles

    • OEM
      A002T17783, A002T27883, A2T-17783, A2T11783, a2t17783, A2T27883, a2t27883, F032111339, had165504, ja674ir, MD 147245, MD140189, md140189, md147245, TA000A61901, 111339

    • Normalised article numbler
      a002t17783, a002t27883, a2t11783, a2t17783, a2t27883, a5018, alt31056, alth037, cal35117, dra3194, dra3194n, f032111339, f042a0h037, had165504, j5115047, ja674ir, lea0204, lrb00225, md140189, md147245, qa3190, ta000a61901, 8el011711401, 8el726389001, 5359, 12627n, 40674ri, 111339, 119436, 210281, 210281a, 281701, 600003, 2751524, 12060166, 155809065, 226123652, 226126652, 0986042311, 943354007010
