HC-Cargo Alternator
HC-Cargo Alternator
Article no.: F032112205

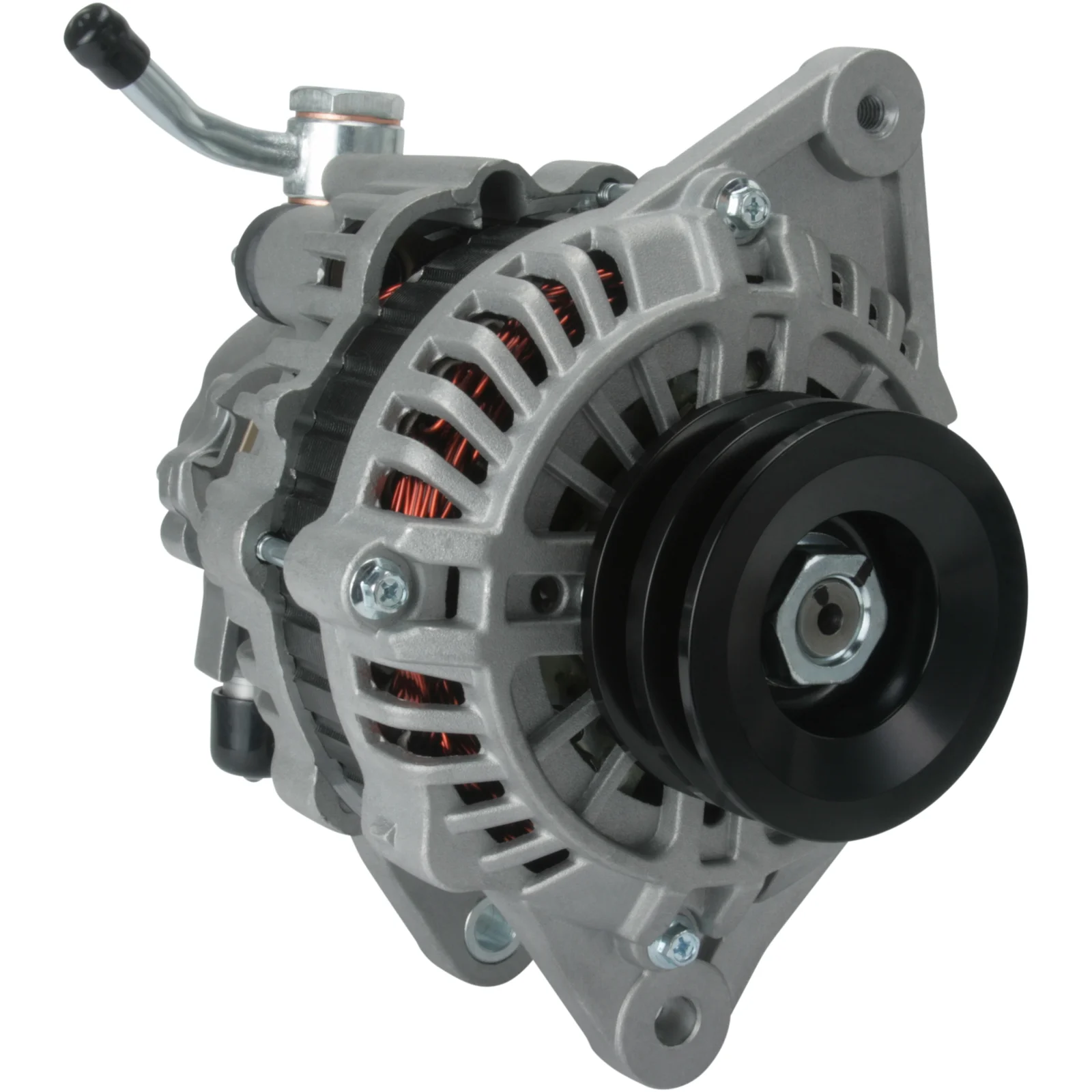

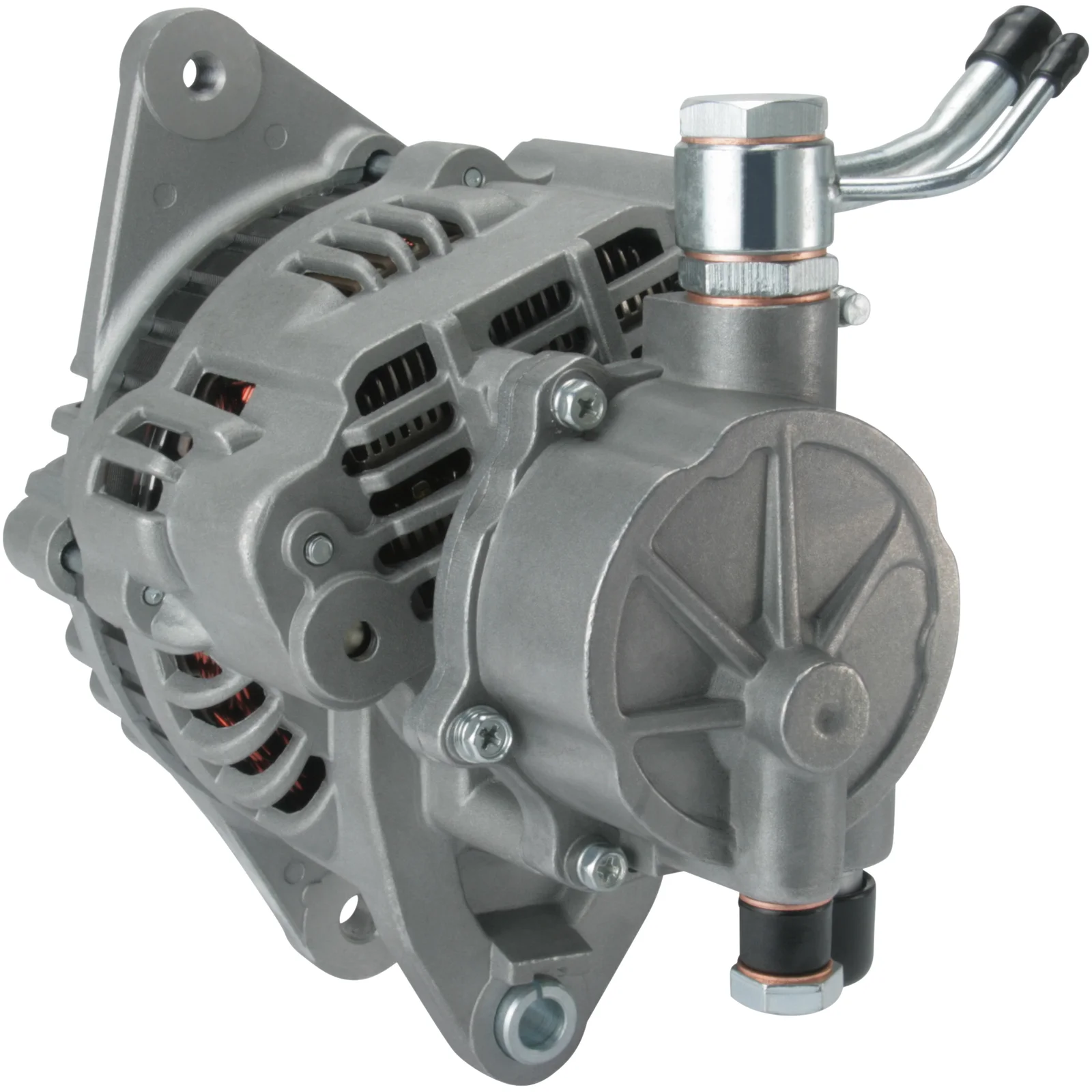

HC-Cargo Alternator

Technical info:

Voltage: 14, Amperes: 90, Rotation: CW, Mounting bracket distributor: 55.00

Description

Voltage: 14
Amp: 90
Pulley dist.: 42.00
Width/holder arm: 13.00
Mount. bracket dist.: 55.00
Bracket hole: 10.60
Belt. adj. brackethole pos.: 5
Belt. adj. bracket hole 1: M8
Pulley dia.: 77.00
Grooves/pulley: 2
Radius: 90.00
Radius 2: 97.00
B+: M8
Position/B+ in min.: 5
D+ Size: Plug
Rotation: CW
Plug no.: PL07
Total length mm: 251.00
Pulley: DP
Regulator type: IR
Vac. pump: Yes
Prod. info: BN
Servicing: Hyundai

Files

  • OEM
    A003TN0699, A003TN0699A, A003TN0899, A003TN1199, a3tn0699, A3TN0699A, a3tn0899, a3tn1199, F032112205, ja1419ir, md320354, md334176, md335227, MN137866, 61920335, 61920402

  • Normalised article numbler
    a003tn0699, a003tn0699a, a003tn0899, a003tn1199, a3526s, a3tn0699, a3tn0699a, a3tn0899, a3tn1199, a5003, a5072, a9164, alt31054, alth086, altv057, cal35110, dra0752, dra3869, f032112205, f042303112, f042a03112, f042a0h086, ja1419ir, lea0108, lra01648, lra03151, md320354, md334176, md335227, mn137866, 8el011711121, 8el737675001, 5777, 12667, 12667n, 12667r, 12667rw, 210114, 210114a, 282848, 285763, 401419ri, 401802ri, 9060501, 12060755, 12060780, 20110236, 61920335, 61920402, 155604105, 526119902, 526129752, 0986045571, 0986049930, 5261191052, 5261341052
  • Description
    Voltage: 14
    Amp: 90
    Pulley dist.: 42.00
    Width/holder arm: 13.00
    Mount. bracket dist.: 55.00
    Bracket hole: 10.60
    Belt. adj. brackethole pos.: 5
    Belt. adj. bracket hole 1: M8
    Pulley dia.: 77.00
    Grooves/pulley: 2
    Radius: 90.00
    Radius 2: 97.00
    B+: M8
    Position/B+ in min.: 5
    D+ Size: Plug
    Rotation: CW
    Plug no.: PL07
    Total length mm: 251.00
    Pulley: DP
    Regulator type: IR
    Vac. pump: Yes
    Prod. info: BN
    Servicing: Hyundai

    Files

  • Suitable for these vehicles

    • OEM
      A003TN0699, A003TN0699A, A003TN0899, A003TN1199, a3tn0699, A3TN0699A, a3tn0899, a3tn1199, F032112205, ja1419ir, md320354, md334176, md335227, MN137866, 61920335, 61920402

    • Normalised article numbler
      a003tn0699, a003tn0699a, a003tn0899, a003tn1199, a3526s, a3tn0699, a3tn0699a, a3tn0899, a3tn1199, a5003, a5072, a9164, alt31054, alth086, altv057, cal35110, dra0752, dra3869, f032112205, f042303112, f042a03112, f042a0h086, ja1419ir, lea0108, lra01648, lra03151, md320354, md334176, md335227, mn137866, 8el011711121, 8el737675001, 5777, 12667, 12667n, 12667r, 12667rw, 210114, 210114a, 282848, 285763, 401419ri, 401802ri, 9060501, 12060755, 12060780, 20110236, 61920335, 61920402, 155604105, 526119902, 526129752, 0986045571, 0986049930, 5261191052, 5261341052
