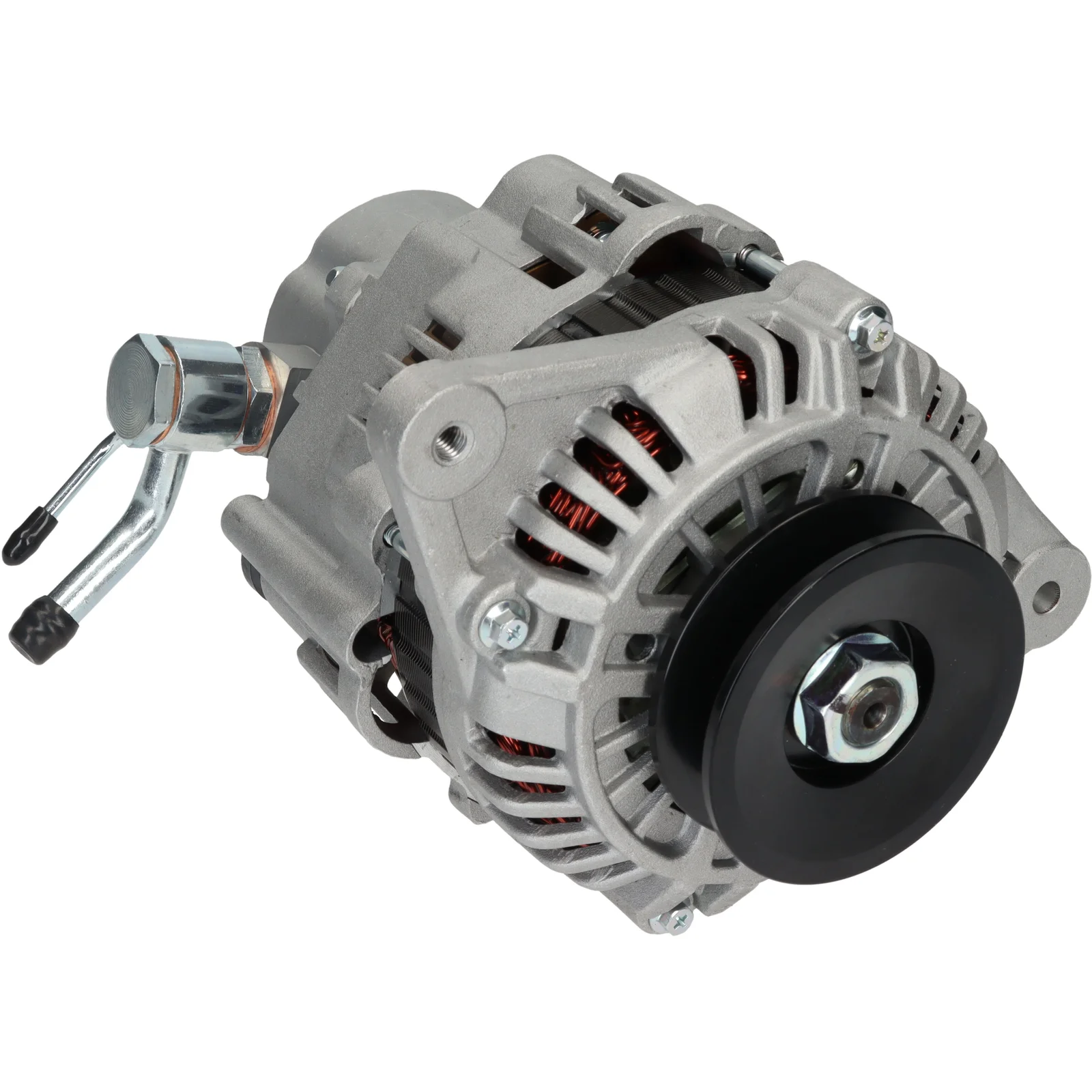

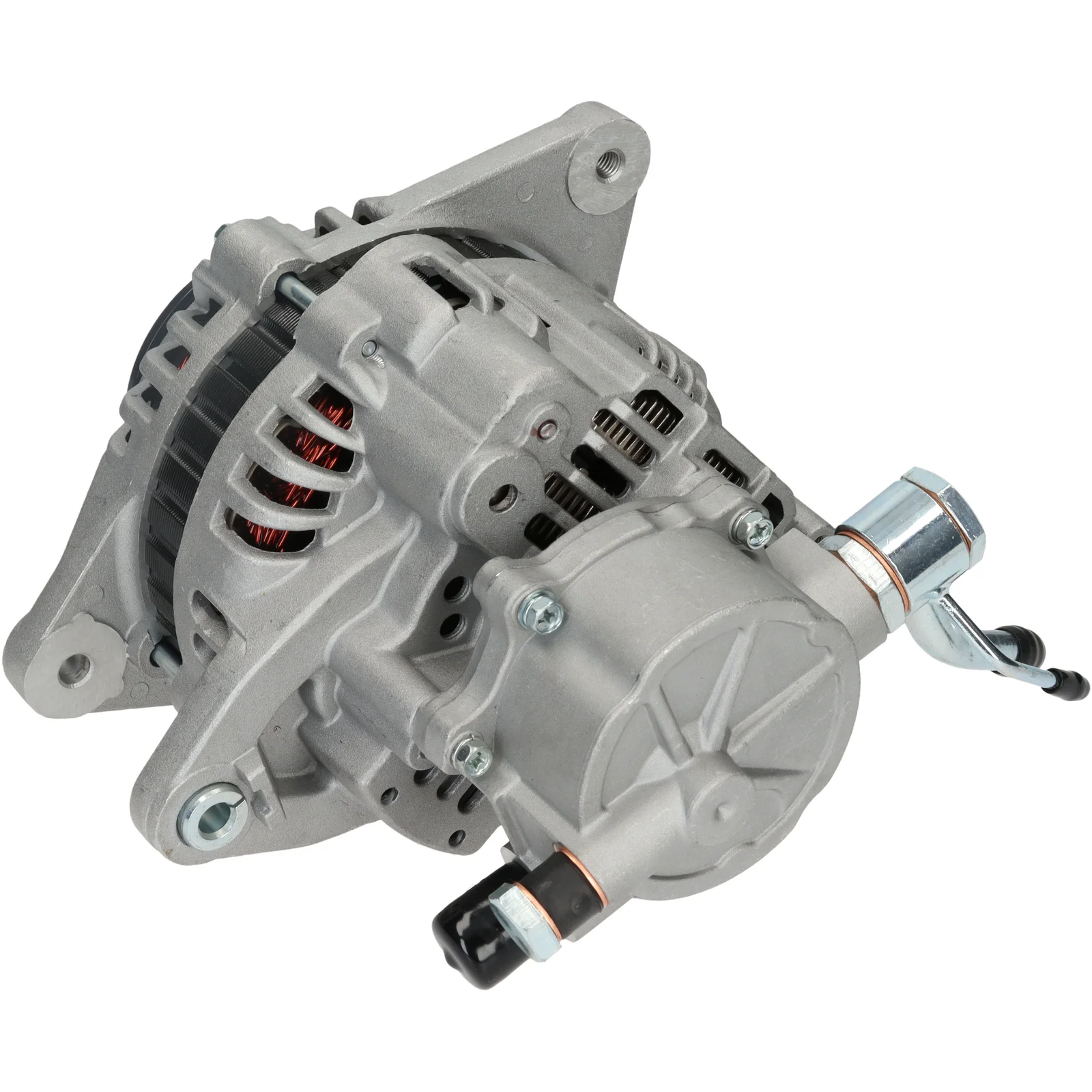

HC-Cargo Alternator
HC-Cargo Alternator
Article no.: F032112129

HC-Cargo Alternator

Technical info:

Voltage: 14, Amperes: 90, Rotation: CW, Mounting bracket distributor: 55.00

Description

Voltage: 14
Amp: 90
Pulley dist.: 45.60
Width/holder arm: 13.00
Mount. bracket dist.: 55.00
Bracket hole: 8.50
Belt. adjustment bracket hole position.: 5
Belt. adjustment bracket hole 1: M8
Pulley diameter: 85.20
Grooves/pulley: 1
Radius: 92.00
Radius 2: 96.00
B+: M8
Position/B+ in min.: 20
Rotation: CW
Plug no.: PL07
Total length mm: 239.00
Pulley: P
Regulator type: IR
Vacuum pump: Yes
Production info: BN
Servicing: Mitsubishi

Files

  • OEM
    A003T07483, a3t07483, F032112129, ja1184ir, md162964, md339609

  • Normalised article numbler
    a003t07483, a3t07483, a5004, alt31011, altv026, cal35108, dra3695, dra3695n, f032112129, f042303103, f042a03103, ja1184ir, lea0645, lra02717, md162964, md339609, qa4211, 8el012428961, 8el737339001, 5672, 23718n, 119825, 210461, 210461a, 282804, 401184ri, 2751538, 12060194, 226137902, 0986080880
  • Description
    Voltage: 14
    Amp: 90
    Pulley dist.: 45.60
    Width/holder arm: 13.00
    Mount. bracket dist.: 55.00
    Bracket hole: 8.50
    Belt. adjustment bracket hole position.: 5
    Belt. adjustment bracket hole 1: M8
    Pulley diameter: 85.20
    Grooves/pulley: 1
    Radius: 92.00
    Radius 2: 96.00
    B+: M8
    Position/B+ in min.: 20
    Rotation: CW
    Plug no.: PL07
    Total length mm: 239.00
    Pulley: P
    Regulator type: IR
    Vacuum pump: Yes
    Production info: BN
    Servicing: Mitsubishi

    Files

  • Suitable for these vehicles

    • OEM
      A003T07483, a3t07483, F032112129, ja1184ir, md162964, md339609

    • Normalised article numbler
      a003t07483, a3t07483, a5004, alt31011, altv026, cal35108, dra3695, dra3695n, f032112129, f042303103, f042a03103, ja1184ir, lea0645, lra02717, md162964, md339609, qa4211, 8el012428961, 8el737339001, 5672, 23718n, 119825, 210461, 210461a, 282804, 401184ri, 2751538, 12060194, 226137902, 0986080880
