Article no.: F032113577

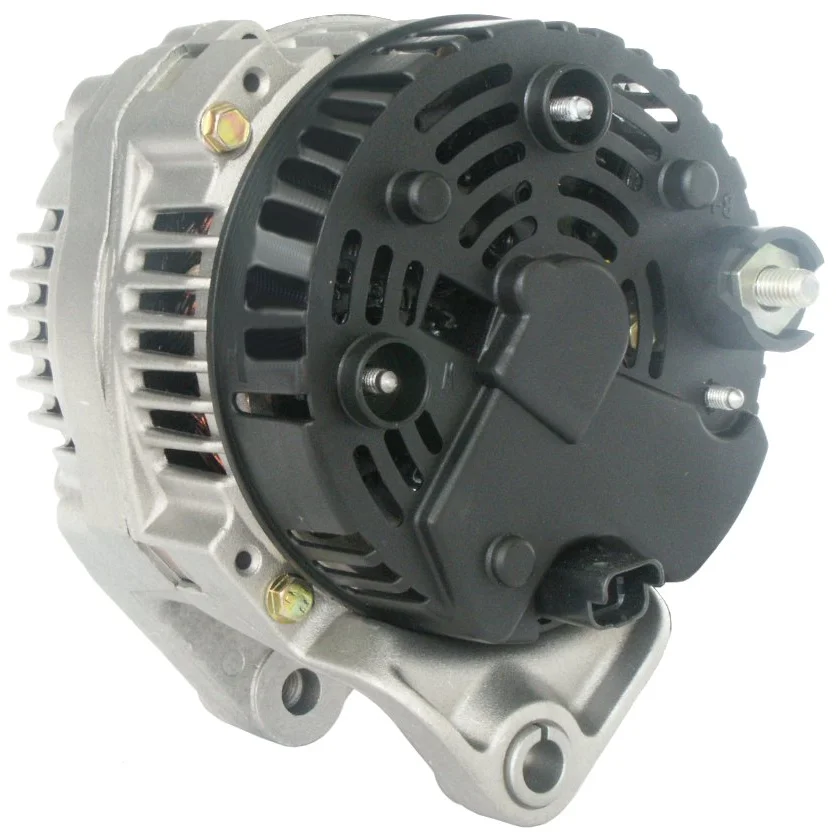

HC-Cargo Alternator

Technical info:

Voltage: 14, Amps: 75, Rotation: CW, Mounting bracket distributor: 64.70

Description

Voltage: 14
Amp: 75
Pulley dist.: 46.20
Width/holder arm: 27.00
Mount. bracket dist.: 64.70
Bracket hole: M10
Belt. adj. brackethole pos.: 50
Belt. adj. bracket hole 1: 9.00x35.50
Pulley dia.: 59.20
Grooves/pulley: 4
Radius: 84.00
Radius 2: 96.00
B+: M8
Position/B+ in min.: 13
D+ Size: Plug
Rotation: CW
Plug no.: PL55
Total length mm: 169.00
Pulley: SP
Alternator type: IR
Prod. info: BN/OE

Files

  • OEM
    a11vi111, a11vi98, F032113577, SG7S028, SG7S074, 1298ir, 2542252, 2542252A, 2542480, 2542480A, 8253534, 7700427880, 7700433069, 7701058244, 7711134216, 8200060488

  • Normalised article numbler
    a11vi111, a11vi98, a3188, alth148, cal15133, dra3714, dra3714x, f032113577, f042a0h148, lra01976, lrb00396, na552, sg7s028, sg7s074, 8el012429981, 8el737438001, 1298ir, 4539, 5938, 22976r, 111610, 118937, 200160, 210285, 210285a, 283877, 301298ri, 437119, 437313, 439308, 746086, 746886, 2542252, 2542252a, 2542480, 2542480a, 8253534, 12045220, 32045221, 230157752, 0986045221, 7700427880, 7700433069, 7701058244, 7711134216, 8200060488, 943354074010
  • Description
    Voltage: 14
    Amp: 75
    Pulley dist.: 46.20
    Width/holder arm: 27.00
    Mount. bracket dist.: 64.70
    Bracket hole: M10
    Belt. adj. brackethole pos.: 50
    Belt. adj. bracket hole 1: 9.00x35.50
    Pulley dia.: 59.20
    Grooves/pulley: 4
    Radius: 84.00
    Radius 2: 96.00
    B+: M8
    Position/B+ in min.: 13
    D+ Size: Plug
    Rotation: CW
    Plug no.: PL55
    Total length mm: 169.00
    Pulley: SP
    Alternator type: IR
    Prod. info: BN/OE

    Files

  • Suitable for these vehicles

    • OEM
      a11vi111, a11vi98, F032113577, SG7S028, SG7S074, 1298ir, 2542252, 2542252A, 2542480, 2542480A, 8253534, 7700427880, 7700433069, 7701058244, 7711134216, 8200060488

    • Normalised article numbler
      a11vi111, a11vi98, a3188, alth148, cal15133, dra3714, dra3714x, f032113577, f042a0h148, lra01976, lrb00396, na552, sg7s028, sg7s074, 8el012429981, 8el737438001, 1298ir, 4539, 5938, 22976r, 111610, 118937, 200160, 210285, 210285a, 283877, 301298ri, 437119, 437313, 439308, 746086, 746886, 2542252, 2542252a, 2542480, 2542480a, 8253534, 12045220, 32045221, 230157752, 0986045221, 7700427880, 7700433069, 7701058244, 7711134216, 8200060488, 943354074010
