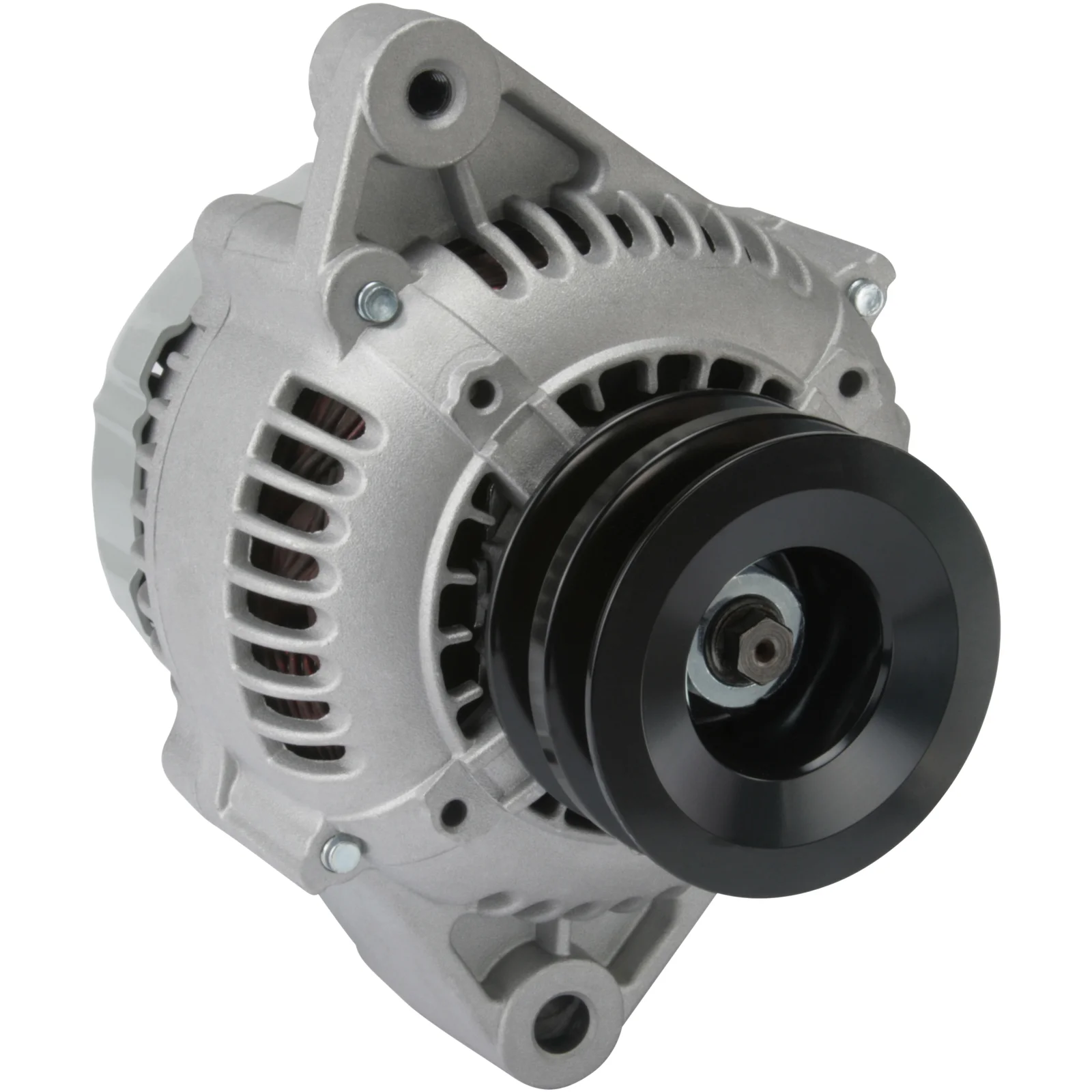

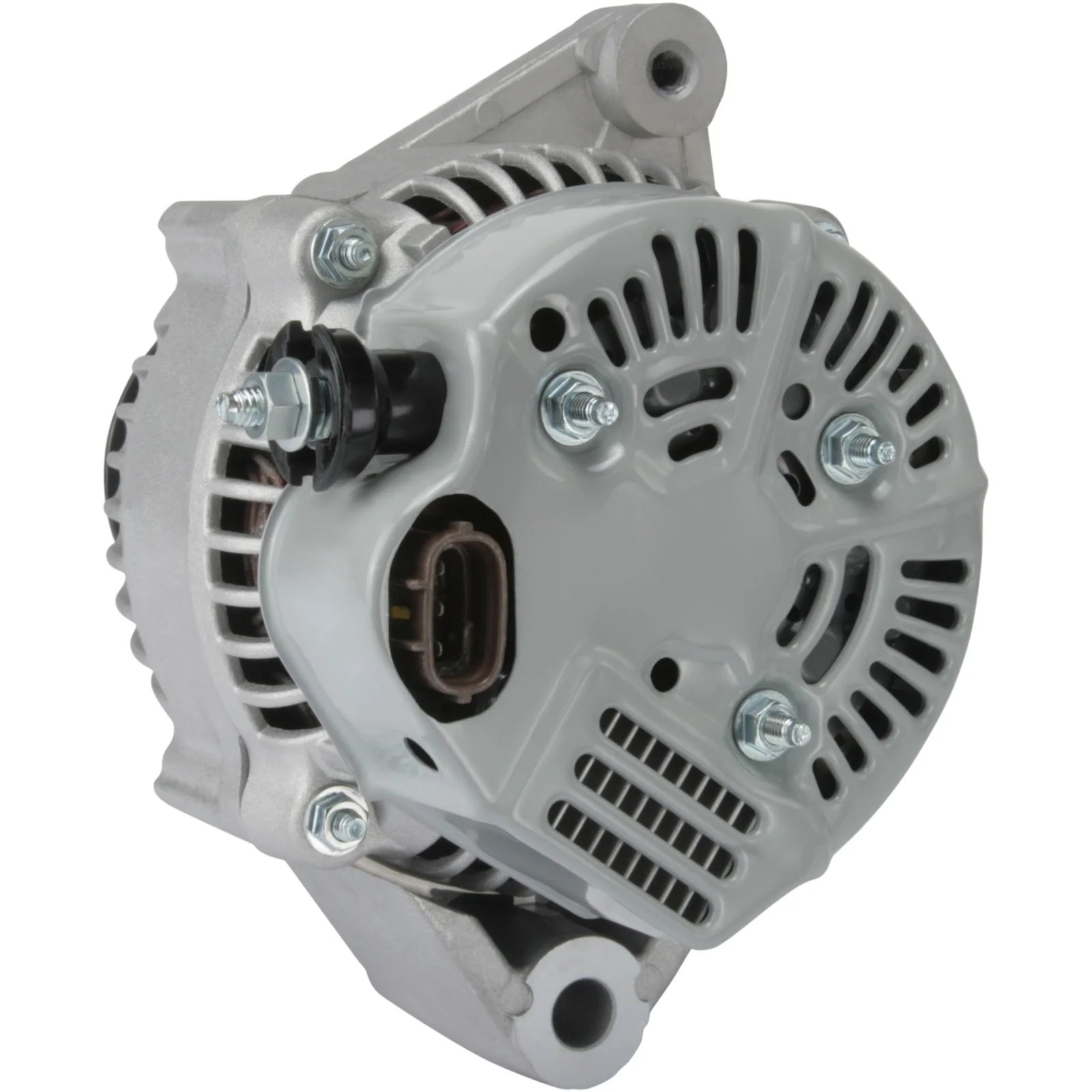

HC-Cargo Alternator
HC-Cargo Alternator
Article no.: F032112063

HC-Cargo Alternator

Technical info:

Voltage: 14, Amp: 70, Rotation: CW, Pulley diameter: 75.00

Description

Voltage: 14
Amp: 70
Pulley dist.: 94.00
Width/holder arm: 58.00
Bracket hole: 10.30
Belt. adj. brackethole pos.: 55
Belt. adj. bracket hole 1: M8
Pulley dia.: 75.00
Grooves/pulley: 2
Radius: 80.00
Radius 2: 83.00
B+: M6
Position/B+ in min.: 48
D+ Size: Plug
Rotation: CW
Plug no.: PL42
Total length mm: 168.00
Pulley: Alternator
Regulator type: IR
Prod. info: BN
Servicing: Toyota

Files

  • OEM
    F032112063, ja1410ir, 27060-67010, 27060-67020, 27060-67030, 27060-67040, 27060-67060, 27060-67070, 27060-67080, 27060-67110, 27060-67120, 27060-67140, 101211-0480, 101211-0481, 101211-0570, 101211-0571, 101211-0962, 101211-0970, 101211-0971, 101211-0972, 101211-5630, 101211-5780, 101211-9620, 102211-1060, 102211-2010, 102211-5000, 102211-5001, 102211-5002, 102211-5003

  • Normalised article numbler
    a6138, alt30051, cal40207, cal40267, drb5891, f032112063, j5112094, ja1410ir, lra02053, 8el012428091, 8el737624001, 5734, 23053r, 23054n, 23054r, 111142, 111540, 119748, 209250, 209250a, 283979, 401410ri, 444239, 9213354, 12060769, 195545070, 195968060, 535135552, 535135702, 0986045891, 1012110480, 1012110481, 1012110570, 1012110571, 1012110962, 1012110970, 1012110971, 1012110972, 1012115630, 1012115780, 1012119620, 1022111060, 1022112010, 1022115000, 1022115001, 1022115002, 1022115003, 2706067010, 2706067020, 2706067030, 2706067040, 2706067060, 2706067070, 2706067080, 2706067110, 2706067120, 2706067140, 944390458910, 944390512940
  • Description
    Voltage: 14
    Amp: 70
    Pulley dist.: 94.00
    Width/holder arm: 58.00
    Bracket hole: 10.30
    Belt. adj. brackethole pos.: 55
    Belt. adj. bracket hole 1: M8
    Pulley dia.: 75.00
    Grooves/pulley: 2
    Radius: 80.00
    Radius 2: 83.00
    B+: M6
    Position/B+ in min.: 48
    D+ Size: Plug
    Rotation: CW
    Plug no.: PL42
    Total length mm: 168.00
    Pulley: Alternator
    Regulator type: IR
    Prod. info: BN
    Servicing: Toyota

    Files

  • Suitable for these vehicles

    • OEM
      F032112063, ja1410ir, 27060-67010, 27060-67020, 27060-67030, 27060-67040, 27060-67060, 27060-67070, 27060-67080, 27060-67110, 27060-67120, 27060-67140, 101211-0480, 101211-0481, 101211-0570, 101211-0571, 101211-0962, 101211-0970, 101211-0971, 101211-0972, 101211-5630, 101211-5780, 101211-9620, 102211-1060, 102211-2010, 102211-5000, 102211-5001, 102211-5002, 102211-5003

    • Normalised article numbler
      a6138, alt30051, cal40207, cal40267, drb5891, f032112063, j5112094, ja1410ir, lra02053, 8el012428091, 8el737624001, 5734, 23053r, 23054n, 23054r, 111142, 111540, 119748, 209250, 209250a, 283979, 401410ri, 444239, 9213354, 12060769, 195545070, 195968060, 535135552, 535135702, 0986045891, 1012110480, 1012110481, 1012110570, 1012110571, 1012110962, 1012110970, 1012110971, 1012110972, 1012115630, 1012115780, 1012119620, 1022111060, 1022112010, 1022115000, 1022115001, 1022115002, 1022115003, 2706067010, 2706067020, 2706067030, 2706067040, 2706067060, 2706067070, 2706067080, 2706067110, 2706067120, 2706067140, 944390458910, 944390512940
