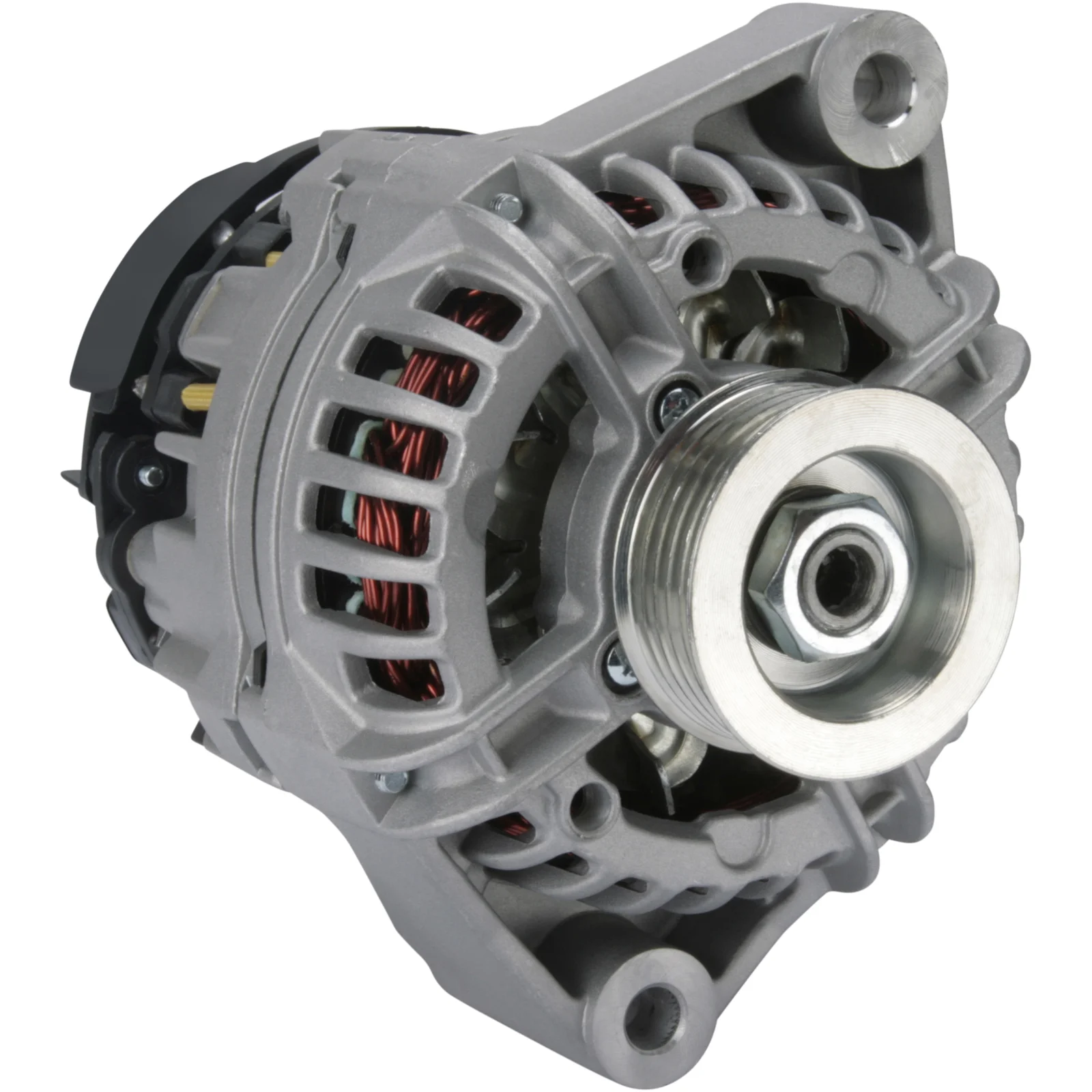

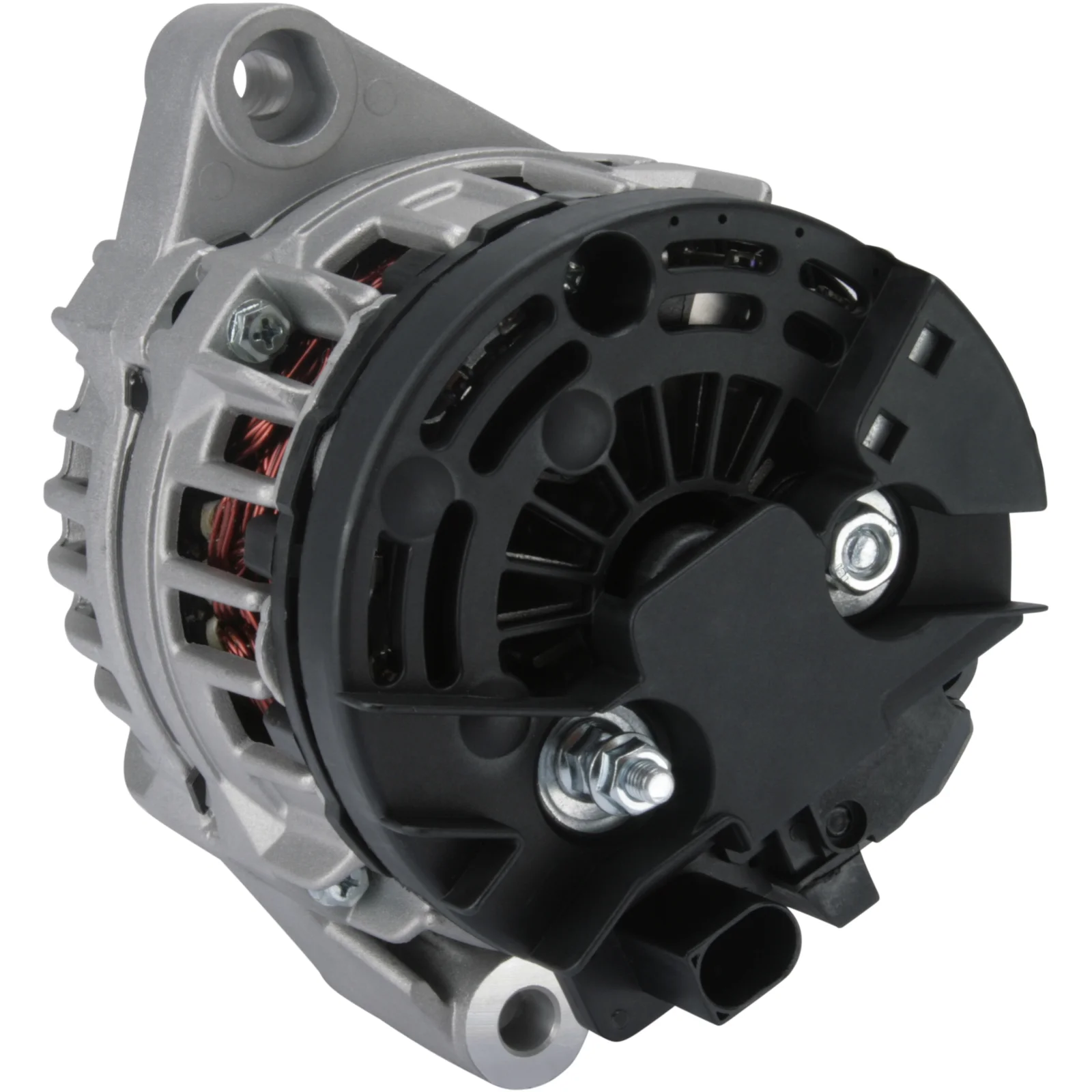

HC-Cargo Alternator
HC-Cargo Alternator
Article no.: F032114040

HC-Cargo Alternator

Technical info:

Voltage: 14, Amp: 85, Rotation: CW, Pulley diameter: 56.00

Description

Voltage: 14
Amp: 85
Pulley dist.: 90.00
Width/holder arm: 58.00
Bracket hole: 10.60
Belt. adj. bracket hole position: 5
Belt. adj. bracket hole 1: 11.00
Pulley diameter: 56.00
Grooves/pulley: 5
Radius: 79.00
Radius 2: 80.00
B+: M6
Position/B+ in minutes: 35
Rotation: CW
Plug no.: PL61
Total length mm: 172.00
Pulley: SP
Voltage regulator type: IR

Files

  • OEM
    A0111548002, A011154800280, A6601540902, A660154090280, F032114040, Q0004717V005, Q0004717V006, 1986A00771, 2024ir, 0004717V005, 0004717V006, 0111548002, 0124225020, 0124225037, 6601540902, 011154800280, 660154090280

  • Normalised article numbler
    a0111548002, a011154800280, a0223, a0223pr, a0223sr, a6601540902, a660154090280, alth186, cal10241, drb4490, f032114040, f042a0h186, q0004717v005, q0004717v006, 8el012428841, 8el738212421, 1986a00771, 2024ir, 0004717v005, 0004717v006, 23901n, 23901r, 111414, 200062, 210707, 210707a, 285515, 302024ri, 12044490, 32044490, 063532250, 0111548002, 0124225020, 0124225037, 0986044490, 0986044493, 6601540902, 011154800280, 063532250200, 660154090280, 944390901430
  • Description
    Voltage: 14
    Amp: 85
    Pulley dist.: 90.00
    Width/holder arm: 58.00
    Bracket hole: 10.60
    Belt. adj. bracket hole position: 5
    Belt. adj. bracket hole 1: 11.00
    Pulley diameter: 56.00
    Grooves/pulley: 5
    Radius: 79.00
    Radius 2: 80.00
    B+: M6
    Position/B+ in minutes: 35
    Rotation: CW
    Plug no.: PL61
    Total length mm: 172.00
    Pulley: SP
    Voltage regulator type: IR

    Files

  • Suitable for these vehicles

    • OEM
      A0111548002, A011154800280, A6601540902, A660154090280, F032114040, Q0004717V005, Q0004717V006, 1986A00771, 2024ir, 0004717V005, 0004717V006, 0111548002, 0124225020, 0124225037, 6601540902, 011154800280, 660154090280

    • Normalised article numbler
      a0111548002, a011154800280, a0223, a0223pr, a0223sr, a6601540902, a660154090280, alth186, cal10241, drb4490, f032114040, f042a0h186, q0004717v005, q0004717v006, 8el012428841, 8el738212421, 1986a00771, 2024ir, 0004717v005, 0004717v006, 23901n, 23901r, 111414, 200062, 210707, 210707a, 285515, 302024ri, 12044490, 32044490, 063532250, 0111548002, 0124225020, 0124225037, 0986044490, 0986044493, 6601540902, 011154800280, 063532250200, 660154090280, 944390901430
