Article no.: F032112720

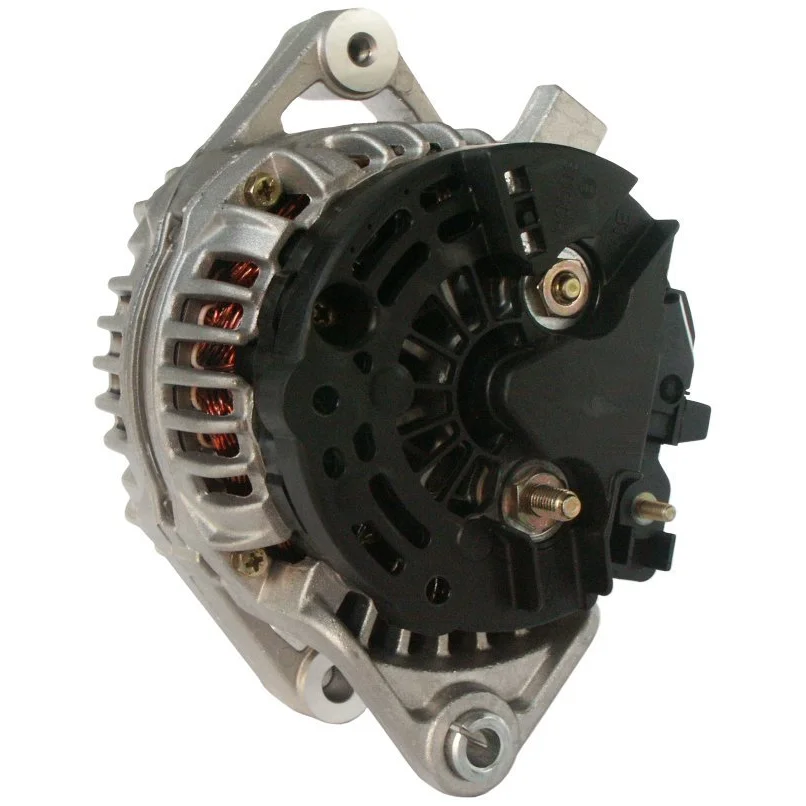

HC-Cargo Alternator

Technical info:

Voltage: 14, Amps: 100, Rotation: CW, Mounting bracket distance: 57.00

Description

Voltage: 14
Amp: 100
Pulley drive: 53.50
Width/holder arm: 33.40
Mounting bracket drive: 57.00
Bracket hole: 10.20
Belt adjustment bracket hole position: 60
Belt adjustment bracket hole 1: M8
Pulley diameter: 62.50
Grooves/pulley: 1
Radius: 93.00
Radius 2: 92.00
B+: M8
Position/B+ in minutes: 30
D+ size: M5
Rotation: CW
Total length mm: 173.00
Pulley: P
Regulator type: IR
Product info: BN
Servicing: Opel

Files

  • OEM
    aak5722, F032112720, R1530039, 11.209.439, 273, 922, 1473ir, 1204054, 3493273, 6204074, 6204124, 9117852, 9119309, 9132653, 9512787, 10457922, 10480273, 93175801, 93175947, 0124415010

  • Normalised article numbler
    a1009, aak5722, alt10291, alt1421, alth119, cal10398, cal12115, dra3904, dra3904n, f032112720, f042a0h119, ia9424, lrb00406, mg447, qa2665, r1530039, 8el012426721, 8el737685001, 273, 922, 1473ir, 5781, 21952n, 210155, 210155a, 283954, 301473ri, 437464, 443294, 746138, 746938, 1204054, 3493273, 6204074, 6204124, 9117852, 9119309, 9132653, 9512787, 10457922, 10480273, 11209439, 12043990, 93175801, 93175947, 0124415010, 0986043990, 0986043993, 2281391002, 944390901300
  • Description
    Voltage: 14
    Amp: 100
    Pulley drive: 53.50
    Width/holder arm: 33.40
    Mounting bracket drive: 57.00
    Bracket hole: 10.20
    Belt adjustment bracket hole position: 60
    Belt adjustment bracket hole 1: M8
    Pulley diameter: 62.50
    Grooves/pulley: 1
    Radius: 93.00
    Radius 2: 92.00
    B+: M8
    Position/B+ in minutes: 30
    D+ size: M5
    Rotation: CW
    Total length mm: 173.00
    Pulley: P
    Regulator type: IR
    Product info: BN
    Servicing: Opel

    Files

  • Suitable for these vehicles

    • OEM
      aak5722, F032112720, R1530039, 11.209.439, 273, 922, 1473ir, 1204054, 3493273, 6204074, 6204124, 9117852, 9119309, 9132653, 9512787, 10457922, 10480273, 93175801, 93175947, 0124415010

    • Normalised article numbler
      a1009, aak5722, alt10291, alt1421, alth119, cal10398, cal12115, dra3904, dra3904n, f032112720, f042a0h119, ia9424, lrb00406, mg447, qa2665, r1530039, 8el012426721, 8el737685001, 273, 922, 1473ir, 5781, 21952n, 210155, 210155a, 283954, 301473ri, 437464, 443294, 746138, 746938, 1204054, 3493273, 6204074, 6204124, 9117852, 9119309, 9132653, 9512787, 10457922, 10480273, 11209439, 12043990, 93175801, 93175947, 0124415010, 0986043990, 0986043993, 2281391002, 944390901300
