Article no.: F032113500

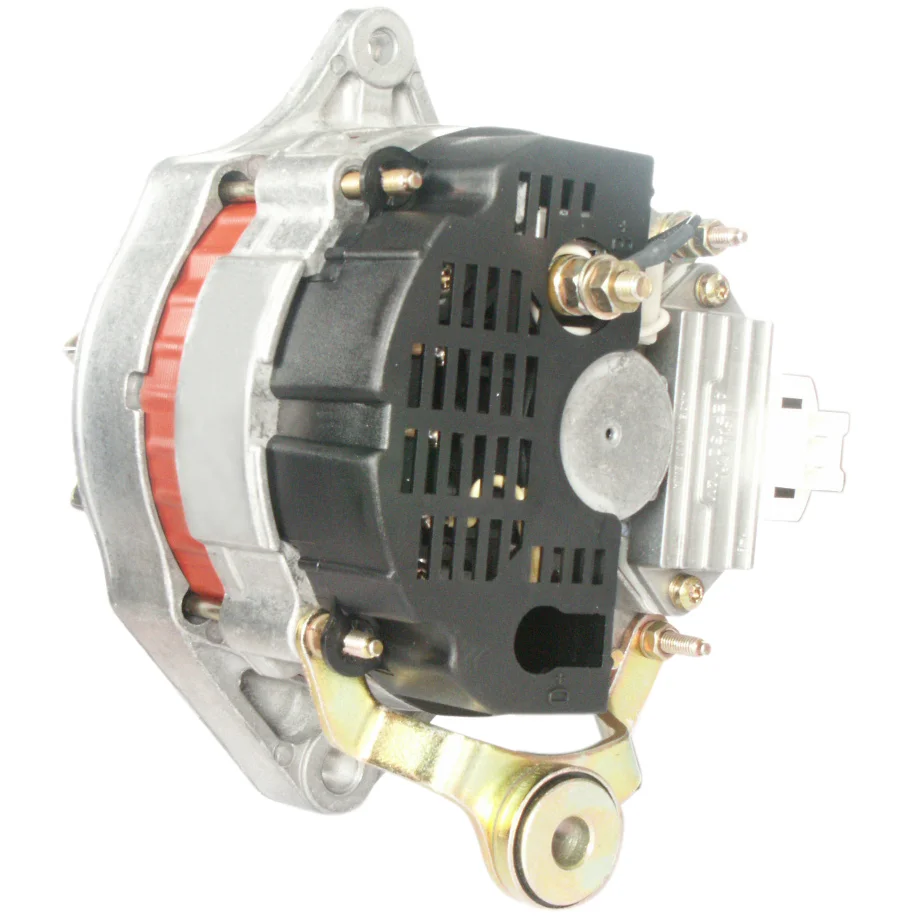

HC-Cargo Alternator

Technical info:

Voltage: 14, Amps: 70, Rotation: CW, Mounting bracket distributor: 65.60

Description

Voltage: 14
Amp: 70
Terminal: W
Pulley dist.: 46.50
Width/holder arm: 27.00
Mount. bracket dist.: 65.60
Bracket hole: 10.30
Belt. adj. brackethole pos.: 60
Belt. adj. bracket hole 1: 8.00
Pulley dia.: 60.00
Grooves/pulley: 6
Radius: 83.00
Radius 2: 86.00
B+: M6
Position/B+ in min.: 26
D+ Size: Plug
Rotation: CW
Plug no.: PL27
W plug type: M5
Total length mm: 165.00
Pulley: SP
Regulator type: IR
Prod. info: BN
Servicing: Renault

Files

  • OEM
    a13n163, a13n164, aak3595, F032113500, 11.201.536, 602ir, 2541124, 8111537, 7700784979, 7701351759, 7701499438, 8982775029

  • Normalised article numbler
    a13n163, a13n164, a3003, a3412s, aak3595, alt14021, alt14028, cal15164, dra3765, dra6941, dra7311, f032113500, ia0536, lra00565, lra01626, mg589, na392, va345, 8el011360571, 8el012429931, 8el725884001, 602ir, 4297, 5165, 22628r, 22630r, 30602ri, 56125, 118676, 200120, 200311, 210179, 210179a, 282797, 433460, 433461, 746024, 746824, 747063, 2541124, 3236941, 3237311, 8111537, 9037311, 11201536, 12036940, 12037310, 32037311, 200120702, 0986036941, 0986037311, 7700784979, 7701351759, 7701499438, 8982775029
  • Description
    Voltage: 14
    Amp: 70
    Terminal: W
    Pulley dist.: 46.50
    Width/holder arm: 27.00
    Mount. bracket dist.: 65.60
    Bracket hole: 10.30
    Belt. adj. brackethole pos.: 60
    Belt. adj. bracket hole 1: 8.00
    Pulley dia.: 60.00
    Grooves/pulley: 6
    Radius: 83.00
    Radius 2: 86.00
    B+: M6
    Position/B+ in min.: 26
    D+ Size: Plug
    Rotation: CW
    Plug no.: PL27
    W plug type: M5
    Total length mm: 165.00
    Pulley: SP
    Regulator type: IR
    Prod. info: BN
    Servicing: Renault

    Files

  • Suitable for these vehicles

    • OEM
      a13n163, a13n164, aak3595, F032113500, 11.201.536, 602ir, 2541124, 8111537, 7700784979, 7701351759, 7701499438, 8982775029

    • Normalised article numbler
      a13n163, a13n164, a3003, a3412s, aak3595, alt14021, alt14028, cal15164, dra3765, dra6941, dra7311, f032113500, ia0536, lra00565, lra01626, mg589, na392, va345, 8el011360571, 8el012429931, 8el725884001, 602ir, 4297, 5165, 22628r, 22630r, 30602ri, 56125, 118676, 200120, 200311, 210179, 210179a, 282797, 433460, 433461, 746024, 746824, 747063, 2541124, 3236941, 3237311, 8111537, 9037311, 11201536, 12036940, 12037310, 32037311, 200120702, 0986036941, 0986037311, 7700784979, 7701351759, 7701499438, 8982775029
