HC-Cargo Alternator

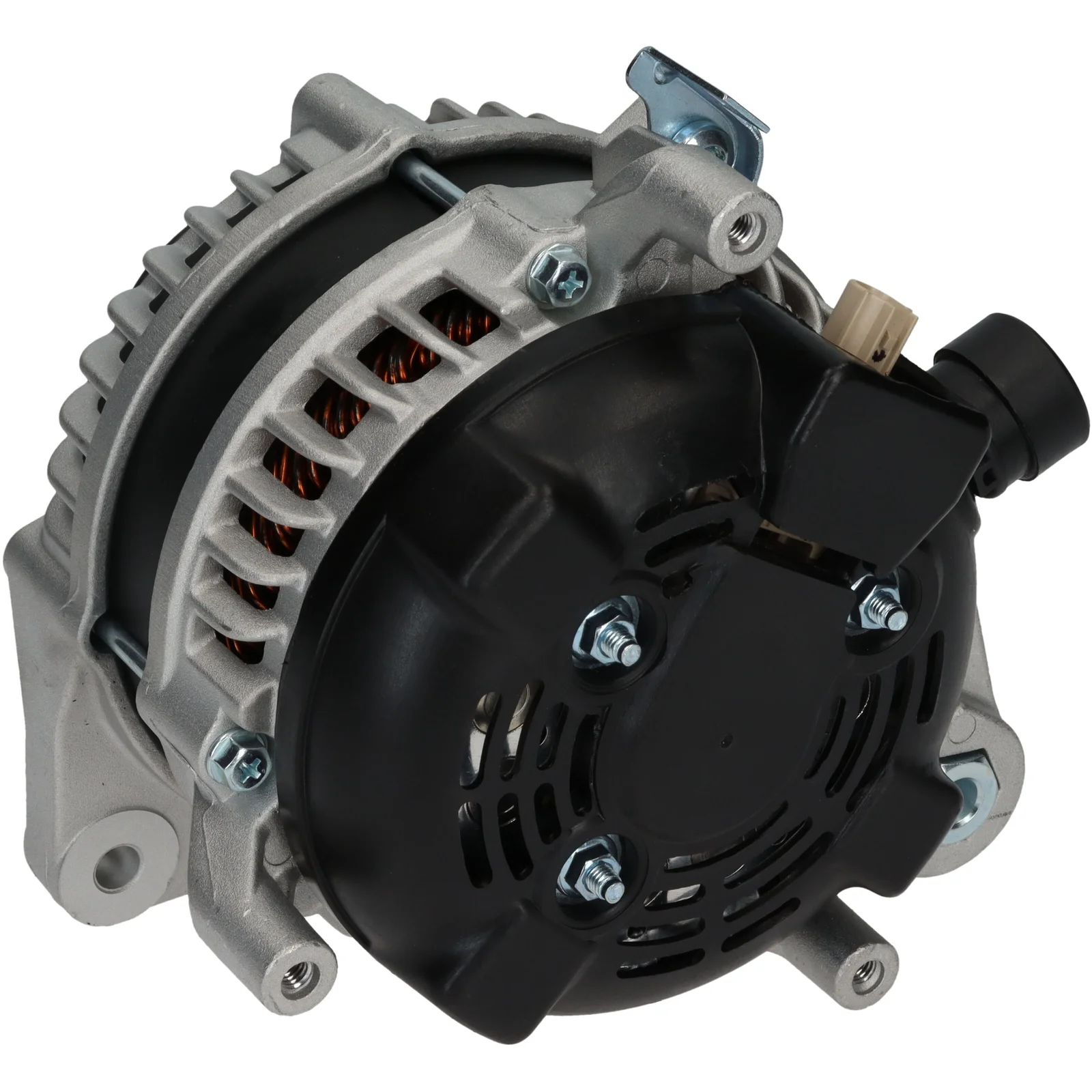

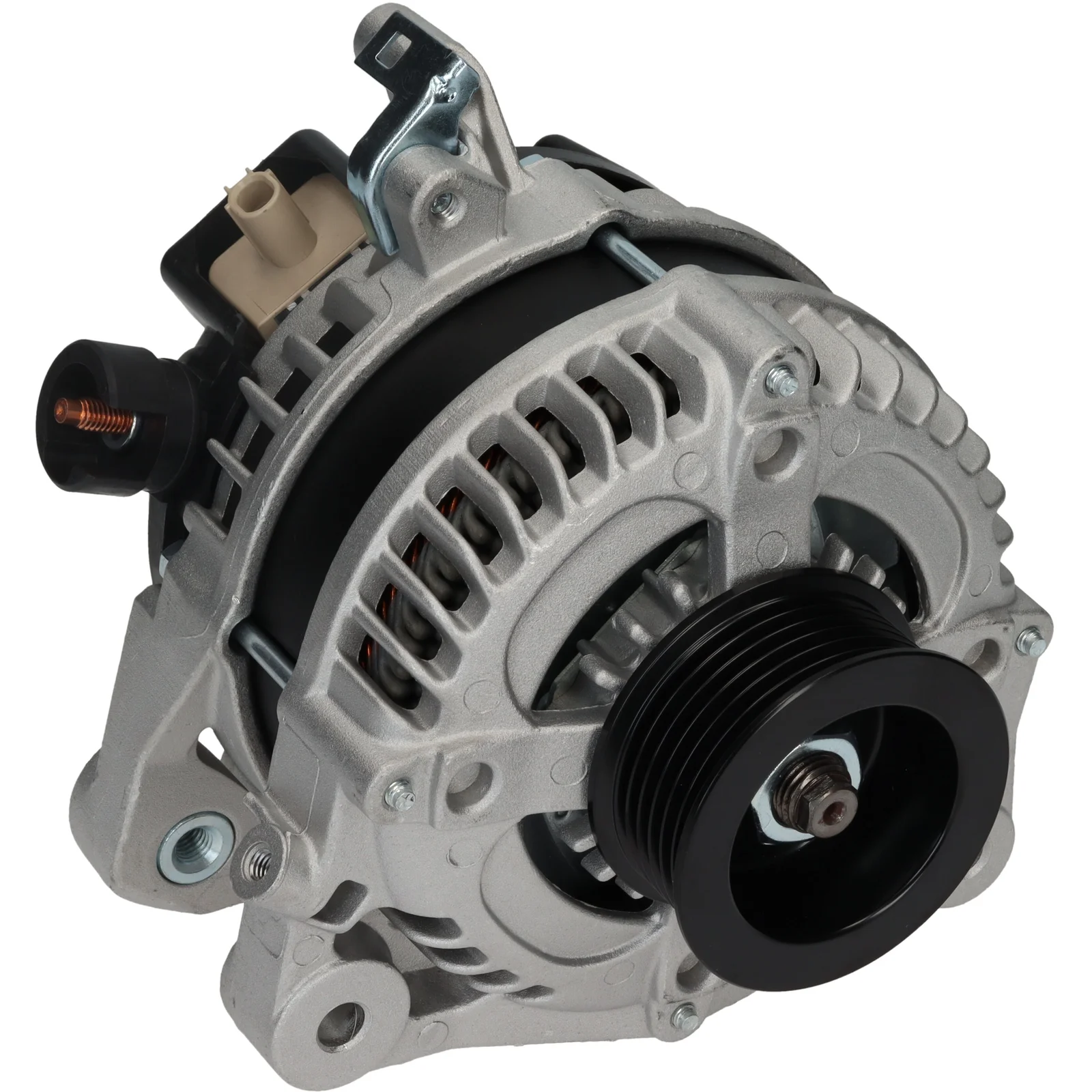

HC-Cargo Alternator
Article no.: F032116590

HC-Cargo Alternator

Technical info:

Voltage: 14, Amp: 105, Rotation: CW, Mounting bracket distance: 38.00

Description

Voltage: 14
Amp: 105
Pulley dist.: 46.00
Width/holder arm: 20.00
Mount. bracket dist.: 38.00
Bracket hole: 9.00
Belt. adj. brackethole pos.: 13
Belt. adj. bracket hole 1: 8.50
Pulley dia.: 60.30
Grooves/pulley: 6
Radius: 85.00
Radius 2: 86.00
B+: M6
Position/B+ in min.: 20
Rotation: CW
Plug no.: PL205
Total length mm: 158.00
Terminal type: COM
Communication: LIN
Pulley: SP
Fan: IF
Regulator type: IR
Remarks: This Alternator has a COM terminal on the voltage regulator. It is recommended that the OEM number is used to check suitability before ordering.

Files

  • OEM
    CSJ54, F032116590, 31100-R1P-H01, 104210-1540

  • Normalised article numbler
    a6232, cal40520, csj54, dan1370, dra1192, f032116590, lra04018, 31100r1ph01, 40211, 287627, 554980, 12061101, 89216716, 125582105, 1042101540
  • Description
    Voltage: 14
    Amp: 105
    Pulley dist.: 46.00
    Width/holder arm: 20.00
    Mount. bracket dist.: 38.00
    Bracket hole: 9.00
    Belt. adj. brackethole pos.: 13
    Belt. adj. bracket hole 1: 8.50
    Pulley dia.: 60.30
    Grooves/pulley: 6
    Radius: 85.00
    Radius 2: 86.00
    B+: M6
    Position/B+ in min.: 20
    Rotation: CW
    Plug no.: PL205
    Total length mm: 158.00
    Terminal type: COM
    Communication: LIN
    Pulley: SP
    Fan: IF
    Regulator type: IR
    Remarks: This Alternator has a COM terminal on the voltage regulator. It is recommended that the OEM number is used to check suitability before ordering.

    Files

  • Suitable for these vehicles

    • OEM
      CSJ54, F032116590, 31100-R1P-H01, 104210-1540

    • Normalised article numbler
      a6232, cal40520, csj54, dan1370, dra1192, f032116590, lra04018, 31100r1ph01, 40211, 287627, 554980, 12061101, 89216716, 125582105, 1042101540
