Article no.: F032111605

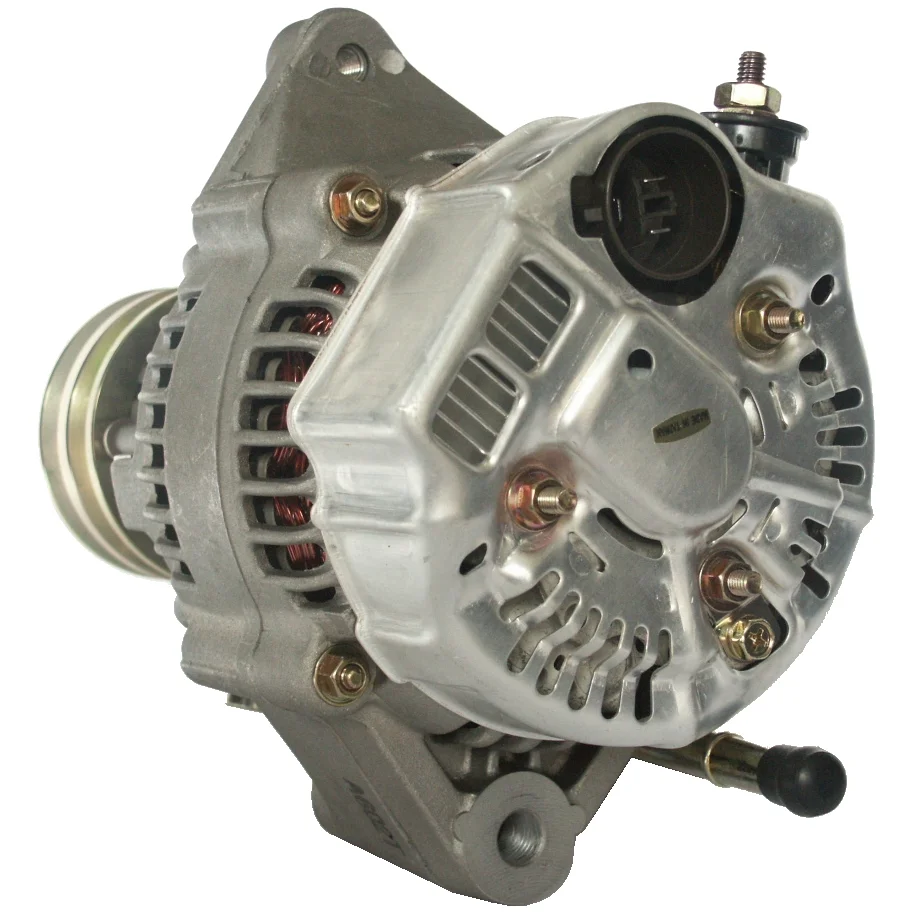

HC-Cargo Alternator

Technical info:

Voltage: 14, Amps: 70, Rotation: CW, Pulley diameter: 76.80

Description

Toyota Van Diesel pump alternator 12V - 70A, 2V, (S, IG, L) For Yourex product order 90-555-5407

Voltage: 14
Amp: 70
Pulley distance: 146.50
Width/holder arm: 69.50
Bracket hole: 10.30
Belt. adj. bracket hole position: 2
Belt. adj. bracket hole 1: M8
Pulley diameter: 76.80
Grooves/pulley: 2
Radius: 77.00
Radius 2: 84.00
B+: M6
Position/B+ in minutes: 5
D+ size: Plug
Rotation: CW
Plug no.: PL12
Total length mm: 231.00
Pulley: DP
Regulator type: IR
Vacuum pump: Yes
Product info: BN
Servicing: Toyota

Files

  • OEM
    F032111605, ja881ir, 27040-54130, 27040-54160, 27040-54170, 27040-54190, 27040-54191, 27040-54210, 27040-54220, 27040-54230, 27040-54231, 27040-54240, 27060-54030, 27060-54070, 27060-54080, 100211-5090, 100213-0941, 100213-1011, 100213-1030, 100213-1040, 100213-1050, 100213-1130, 100213-1140, 100213-1150, 100213-1230, 100213-1240, 100213-1250, 100213-1790, 111605

  • Normalised article numbler
    a6524s, a6525s, alt30024, alt30064, ata458, cal40130, dra3504, f032111605, ja881ir, lra01436, lra01936, qa3057, 8el732727001, 5455, 22435r, 40881ri, 111605, 119551, 119990, 281760, 281942, 283826, 3951285, 12060390, 12060391, 12060732, 235132702, 235132802, 235165702, 235178702, 0986043001, 1002115090, 1002130941, 1002131011, 1002131030, 1002131040, 1002131050, 1002131130, 1002131140, 1002131150, 1002131230, 1002131240, 1002131250, 1002131790, 2704054130, 2704054160, 2704054170, 2704054190, 2704054191, 2704054210, 2704054220, 2704054230, 2704054231, 2704054240, 2706054030, 2706054070, 2706054080
  • Description
    Toyota Van Diesel pump alternator 12V - 70A, 2V, (S, IG, L) For Yourex product order 90-555-5407

    Voltage: 14
    Amp: 70
    Pulley distance: 146.50
    Width/holder arm: 69.50
    Bracket hole: 10.30
    Belt. adj. bracket hole position: 2
    Belt. adj. bracket hole 1: M8
    Pulley diameter: 76.80
    Grooves/pulley: 2
    Radius: 77.00
    Radius 2: 84.00
    B+: M6
    Position/B+ in minutes: 5
    D+ size: Plug
    Rotation: CW
    Plug no.: PL12
    Total length mm: 231.00
    Pulley: DP
    Regulator type: IR
    Vacuum pump: Yes
    Product info: BN
    Servicing: Toyota

    Files

  • Suitable for these vehicles

    • OEM
      F032111605, ja881ir, 27040-54130, 27040-54160, 27040-54170, 27040-54190, 27040-54191, 27040-54210, 27040-54220, 27040-54230, 27040-54231, 27040-54240, 27060-54030, 27060-54070, 27060-54080, 100211-5090, 100213-0941, 100213-1011, 100213-1030, 100213-1040, 100213-1050, 100213-1130, 100213-1140, 100213-1150, 100213-1230, 100213-1240, 100213-1250, 100213-1790, 111605

    • Normalised article numbler
      a6524s, a6525s, alt30024, alt30064, ata458, cal40130, dra3504, f032111605, ja881ir, lra01436, lra01936, qa3057, 8el732727001, 5455, 22435r, 40881ri, 111605, 119551, 119990, 281760, 281942, 283826, 3951285, 12060390, 12060391, 12060732, 235132702, 235132802, 235165702, 235178702, 0986043001, 1002115090, 1002130941, 1002131011, 1002131030, 1002131040, 1002131050, 1002131130, 1002131140, 1002131150, 1002131230, 1002131240, 1002131250, 1002131790, 2704054130, 2704054160, 2704054170, 2704054190, 2704054191, 2704054210, 2704054220, 2704054230, 2704054231, 2704054240, 2706054030, 2706054070, 2706054080
