Article no.: F032111613

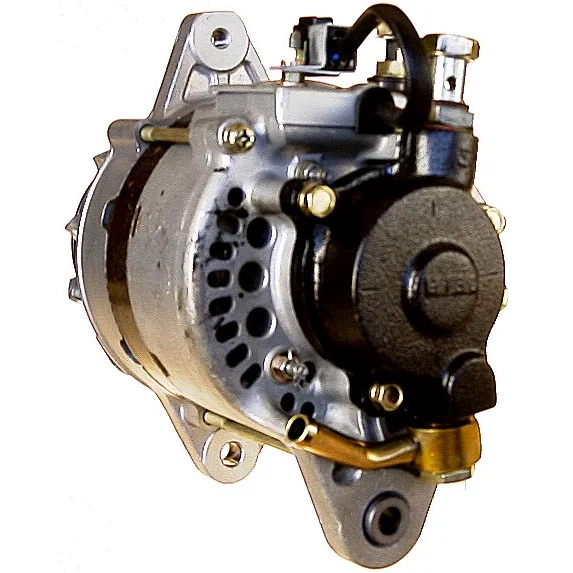

HC-Cargo Alternator

Technical info:

Voltage: 28, Amp: 50, Rotation: CW, Mounting bracket distance: 96.50

Description

Voltage: 28 Amp: 50 Pulley dist.: 63.50 Width/holde arm: 13.00 Mount. bracket dist.: 96.50 Bracket hole: 10.00 Belt. adj. brackethole pos.: 5 Belt. adj. bracket hole 1: M8 Pulley dia.: 95.50 Grooves/pulley: 1 Radius: 88.00 Radius 2: 90.50 B+: M6 Position/B+ in min.: 60 Rotation: CW Plug no.: PL15 Total length mm: 274.00 Pulley: P Regulator: w/o Vac. pump: Yes Prod. info: BN Servicing: Toyota Remarks: Voltage regulator: HC-CARGO 135376

Files

  • OEM
    F032111613, 021000-9850, 021000-9851, 021000-9930, 021000-9931, 27020-56110, 27020-56230, 27030-56080, 27030-56090, 27030-56220, 27030-56250, 27030-56340, 100210-2210, 100210-2211, 100210-2250, 100210-2251, 100210-2570, 100210-2860, 100210-2861, 100210-2990, 100210-2991, 121000-0670

  • Normalised article numbler
    a6620s, alt30145, cal40608, dra3064, dra3345, f032111613, j5112039, 8el730065001, 5361, 40676, 56453, 119553, 470920, 471509, 472748, 3951239, 12060346, 12060347, 12060352, 12060362, 0210009850, 0210009851, 0210009930, 0210009931, 235023254, 235043254, 0986037621, 1002102210, 1002102211, 1002102250, 1002102251, 1002102570, 1002102860, 1002102861, 1002102990, 1002102991, 1210000670, 2702056110, 2702056230, 2703056080, 2703056090, 2703056220, 2703056250, 2703056340
  • Description
    Voltage: 28 Amp: 50 Pulley dist.: 63.50 Width/holde arm: 13.00 Mount. bracket dist.: 96.50 Bracket hole: 10.00 Belt. adj. brackethole pos.: 5 Belt. adj. bracket hole 1: M8 Pulley dia.: 95.50 Grooves/pulley: 1 Radius: 88.00 Radius 2: 90.50 B+: M6 Position/B+ in min.: 60 Rotation: CW Plug no.: PL15 Total length mm: 274.00 Pulley: P Regulator: w/o Vac. pump: Yes Prod. info: BN Servicing: Toyota Remarks: Voltage regulator: HC-CARGO 135376

    Files

  • Suitable for these vehicles

    • OEM
      F032111613, 021000-9850, 021000-9851, 021000-9930, 021000-9931, 27020-56110, 27020-56230, 27030-56080, 27030-56090, 27030-56220, 27030-56250, 27030-56340, 100210-2210, 100210-2211, 100210-2250, 100210-2251, 100210-2570, 100210-2860, 100210-2861, 100210-2990, 100210-2991, 121000-0670

    • Normalised article numbler
      a6620s, alt30145, cal40608, dra3064, dra3345, f032111613, j5112039, 8el730065001, 5361, 40676, 56453, 119553, 470920, 471509, 472748, 3951239, 12060346, 12060347, 12060352, 12060362, 0210009850, 0210009851, 0210009930, 0210009931, 235023254, 235043254, 0986037621, 1002102210, 1002102211, 1002102250, 1002102251, 1002102570, 1002102860, 1002102861, 1002102990, 1002102991, 1210000670, 2702056110, 2702056230, 2703056080, 2703056090, 2703056220, 2703056250, 2703056340
