HC-Cargo Alternator
HC-Cargo Alternator
Article no.: F032116377

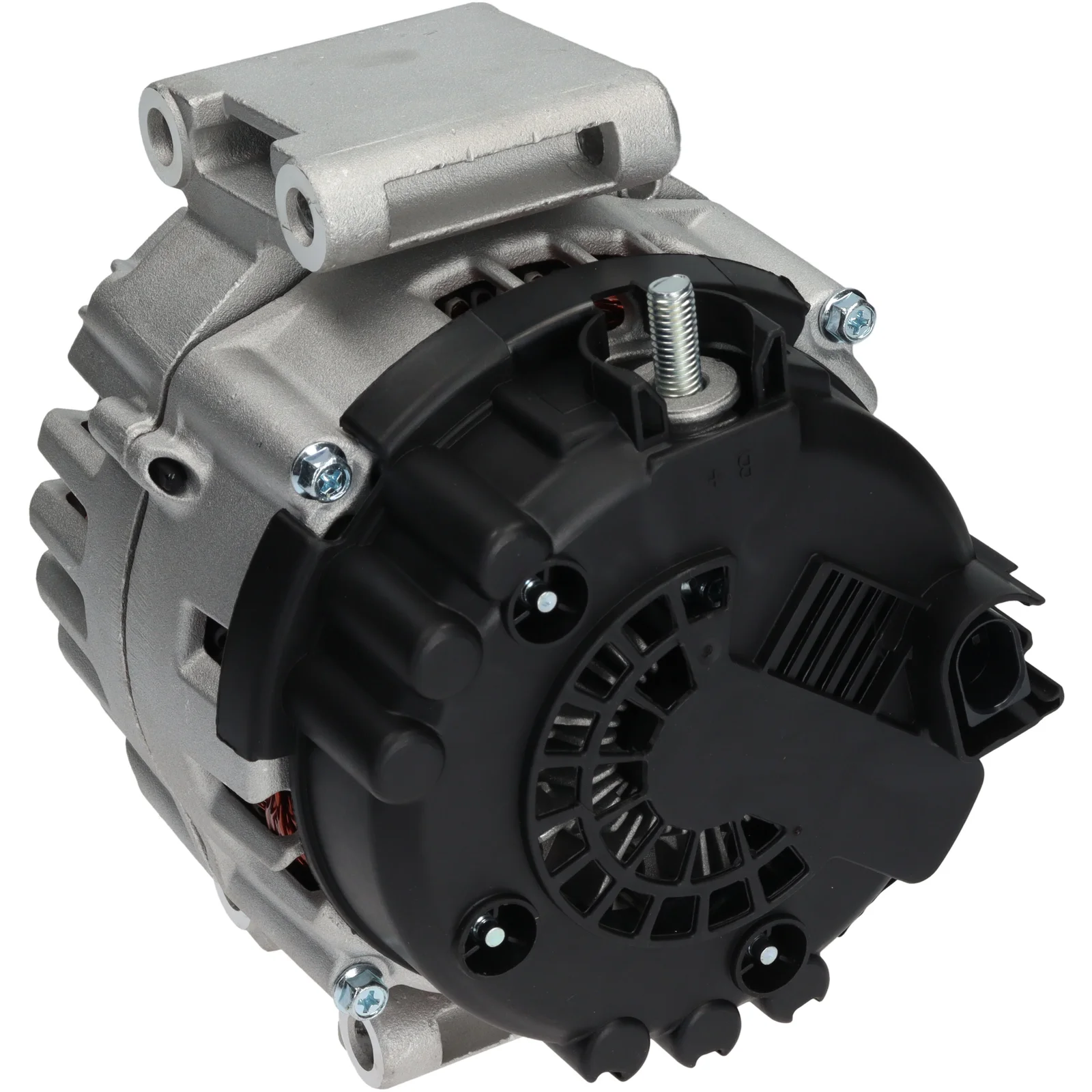

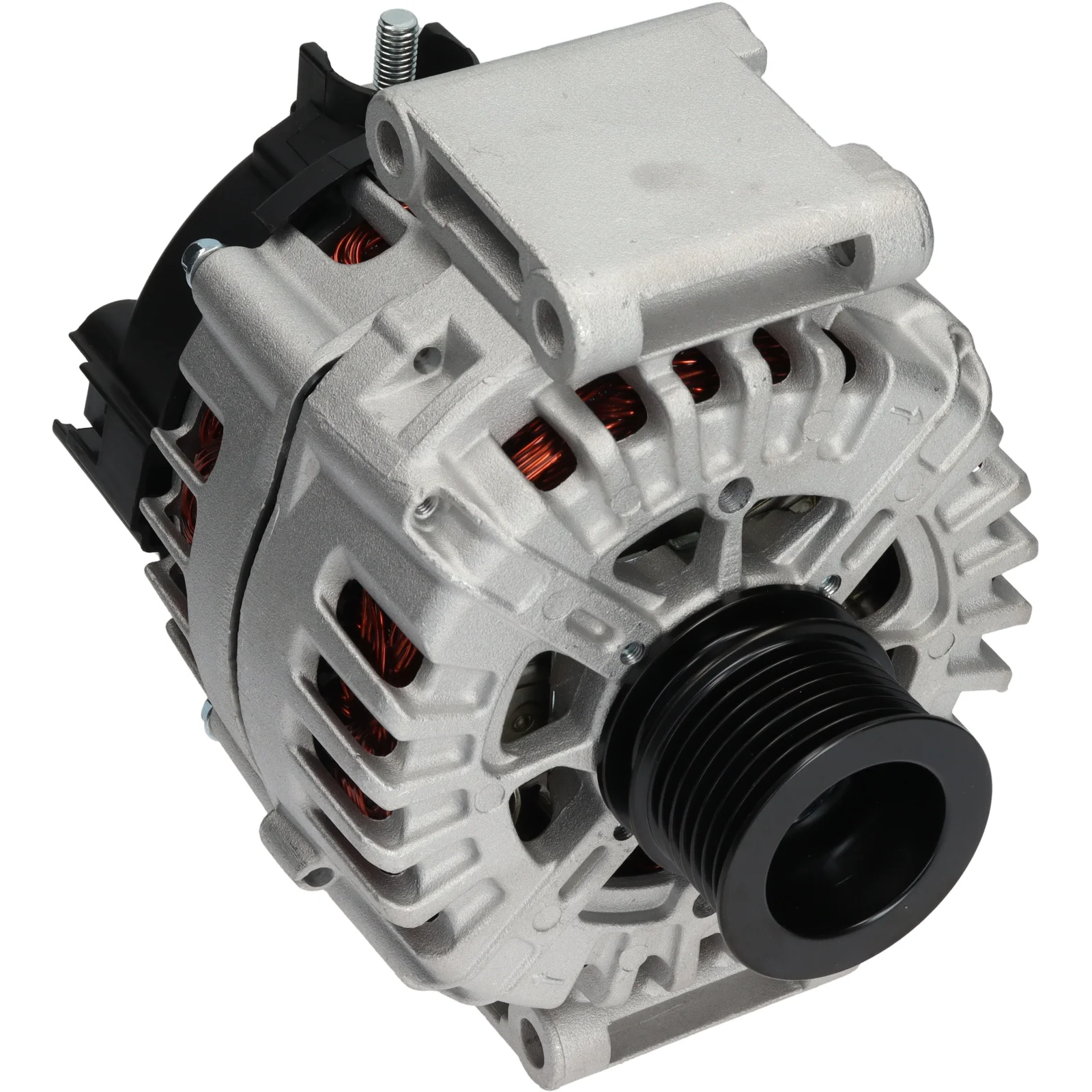

HC-Cargo Alternator

Technical info:

Voltage: 14, Amps: 200, Rotation: CW, Mounting bracket distributor: 56.00

Description

Voltage: 14
Amp: 200
Pulley dist.: 31.50
Width/holder arm: 70.00
Mount. bracket dist.: 56.00
Bracket hole: 9.00
Belt. adj. bracket hole 1: 9.00
Belt. adj. bracket hole 2: 8.50
Pulley dia.: 50.00
Grooves/pulley: 7
Radius: 81.50
Radius 2: 81.50
B+: M8
Position/B+ in min.: 1
Rotation: CW
Plug no.: PL181
Total length mm: 190.00
Terminal type: COM
Communication: LIN
Pulley: SP
Fan: IF
Regulator type: IR
Remarks: This Alternator has a COM terminal on the voltage regulator. It is recommended that the OEM number is used to check suitability before ordering.

Files

  • OEM
    A0009062722, A0009065207, CG20U019, CG20U035, CG20U038, F032116377, 2614781, 2614781A, 0009062722, 0009065207

  • Normalised article numbler
    a0009062722, a0009065207, a3363, a3363valeo, cal15578, cg20u019, cg20u035, cg20u038, dra1555, f032116377, lra4094, 20658, 20658n, 287703, 439895, 440641, 443452, 554275ri, 2614781, 2614781a, 0009062722, 0009065207, 12090724, 555933200, 2251972002
  • Description
    Voltage: 14
    Amp: 200
    Pulley dist.: 31.50
    Width/holder arm: 70.00
    Mount. bracket dist.: 56.00
    Bracket hole: 9.00
    Belt. adj. bracket hole 1: 9.00
    Belt. adj. bracket hole 2: 8.50
    Pulley dia.: 50.00
    Grooves/pulley: 7
    Radius: 81.50
    Radius 2: 81.50
    B+: M8
    Position/B+ in min.: 1
    Rotation: CW
    Plug no.: PL181
    Total length mm: 190.00
    Terminal type: COM
    Communication: LIN
    Pulley: SP
    Fan: IF
    Regulator type: IR
    Remarks: This Alternator has a COM terminal on the voltage regulator. It is recommended that the OEM number is used to check suitability before ordering.

    Files

  • Suitable for these vehicles

    • OEM
      A0009062722, A0009065207, CG20U019, CG20U035, CG20U038, F032116377, 2614781, 2614781A, 0009062722, 0009065207

    • Normalised article numbler
      a0009062722, a0009065207, a3363, a3363valeo, cal15578, cg20u019, cg20u035, cg20u038, dra1555, f032116377, lra4094, 20658, 20658n, 287703, 439895, 440641, 443452, 554275ri, 2614781, 2614781a, 0009062722, 0009065207, 12090724, 555933200, 2251972002
