Article no.: F032110700

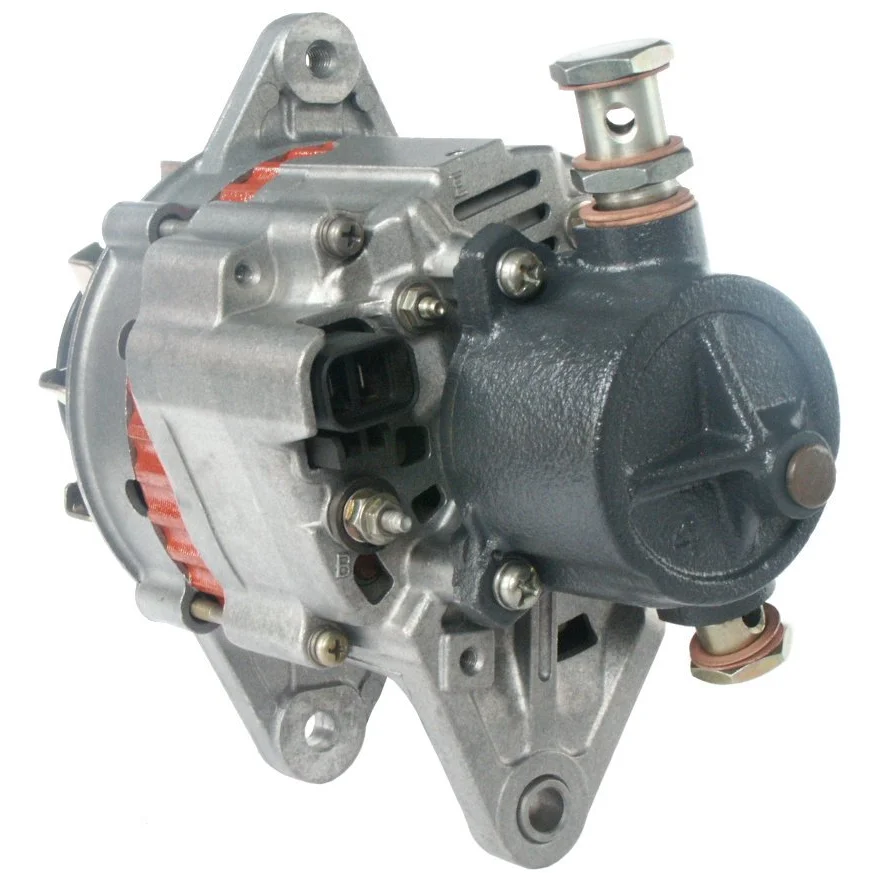

HC-Cargo Alternator

Technical info:

Voltage: 14, Amps: 50, Rotation: CW, Mounting bracket distance: 80.00

Description

Voltage: 14
Amp: 50
Pulley dist.: 42.50
Width/holder arm: 13.00
Mount. bracket dist.: 80.00
Bracket hole: 10.20
Belt. adjustment bracket hole position.: 60
Belt. adjustment bracket hole 1: M8
Pulley diameter: 84.00
Grooves/pulley: 2
Radius: 90.00
Radius 2: 85.50
B+: M6
Position/B+ in min.: 43
D+ Size: Plug
Rotation: CW
Plug no.: PL07
Total length mm: 248.00
Pulley: Alternator
Regulator type: IR
Vacuum pump: Yes
Product info: BN
Servicing: Nissan

Files

  • OEM
    B310M43G06EX, F032110700, ja660ir, lr150-428, LR150-428C, lr150-428e, lr150-428s, lr150-428t, lr150-443s, lr150-443t, 23100-43g04, 23100-43g06, 23100-43g08, 23100-54G01, 23100-92g01

  • Normalised article numbler
    a2012, a2012er, ada392, altv012, altv036, b310m43g06ex, cal20103, dra3208, dra3208n, f032110700, f042305050, f042a05050, ja660ir, lr150428, lr150428c, lr150428e, lr150428s, lr150428t, lr150443s, lr150443t, lra01295, qa1922, 8el012427701, 8el726375001, 5351, 14024r, 40660ri, 56230, 118464, 210104, 210104a, 210342, 210342a, 281570, 2310043g04, 2310043g06, 2310043g08, 2310054g01, 2310092g01, 2851146, 2851157, 227112502, 227140502, 227198502, 0986038930
  • Description
    Voltage: 14
    Amp: 50
    Pulley dist.: 42.50
    Width/holder arm: 13.00
    Mount. bracket dist.: 80.00
    Bracket hole: 10.20
    Belt. adjustment bracket hole position.: 60
    Belt. adjustment bracket hole 1: M8
    Pulley diameter: 84.00
    Grooves/pulley: 2
    Radius: 90.00
    Radius 2: 85.50
    B+: M6
    Position/B+ in min.: 43
    D+ Size: Plug
    Rotation: CW
    Plug no.: PL07
    Total length mm: 248.00
    Pulley: Alternator
    Regulator type: IR
    Vacuum pump: Yes
    Product info: BN
    Servicing: Nissan

    Files

  • Suitable for these vehicles

    • OEM
      B310M43G06EX, F032110700, ja660ir, lr150-428, LR150-428C, lr150-428e, lr150-428s, lr150-428t, lr150-443s, lr150-443t, 23100-43g04, 23100-43g06, 23100-43g08, 23100-54G01, 23100-92g01

    • Normalised article numbler
      a2012, a2012er, ada392, altv012, altv036, b310m43g06ex, cal20103, dra3208, dra3208n, f032110700, f042305050, f042a05050, ja660ir, lr150428, lr150428c, lr150428e, lr150428s, lr150428t, lr150443s, lr150443t, lra01295, qa1922, 8el012427701, 8el726375001, 5351, 14024r, 40660ri, 56230, 118464, 210104, 210104a, 210342, 210342a, 281570, 2310043g04, 2310043g06, 2310043g08, 2310054g01, 2310092g01, 2851146, 2851157, 227112502, 227140502, 227198502, 0986038930
