HC-Cargo Alternator
HC-Cargo Alternator
Article no.: F032116671

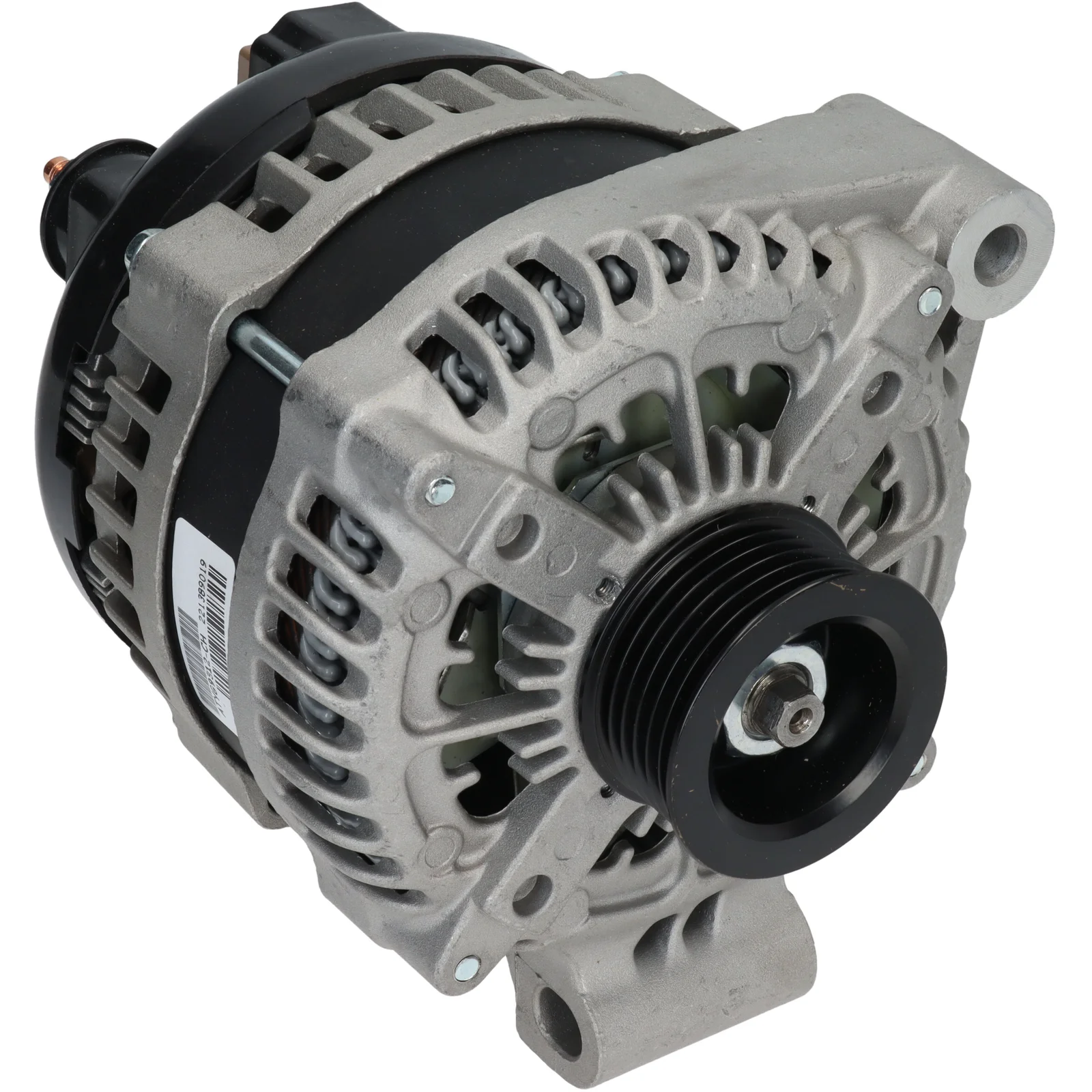

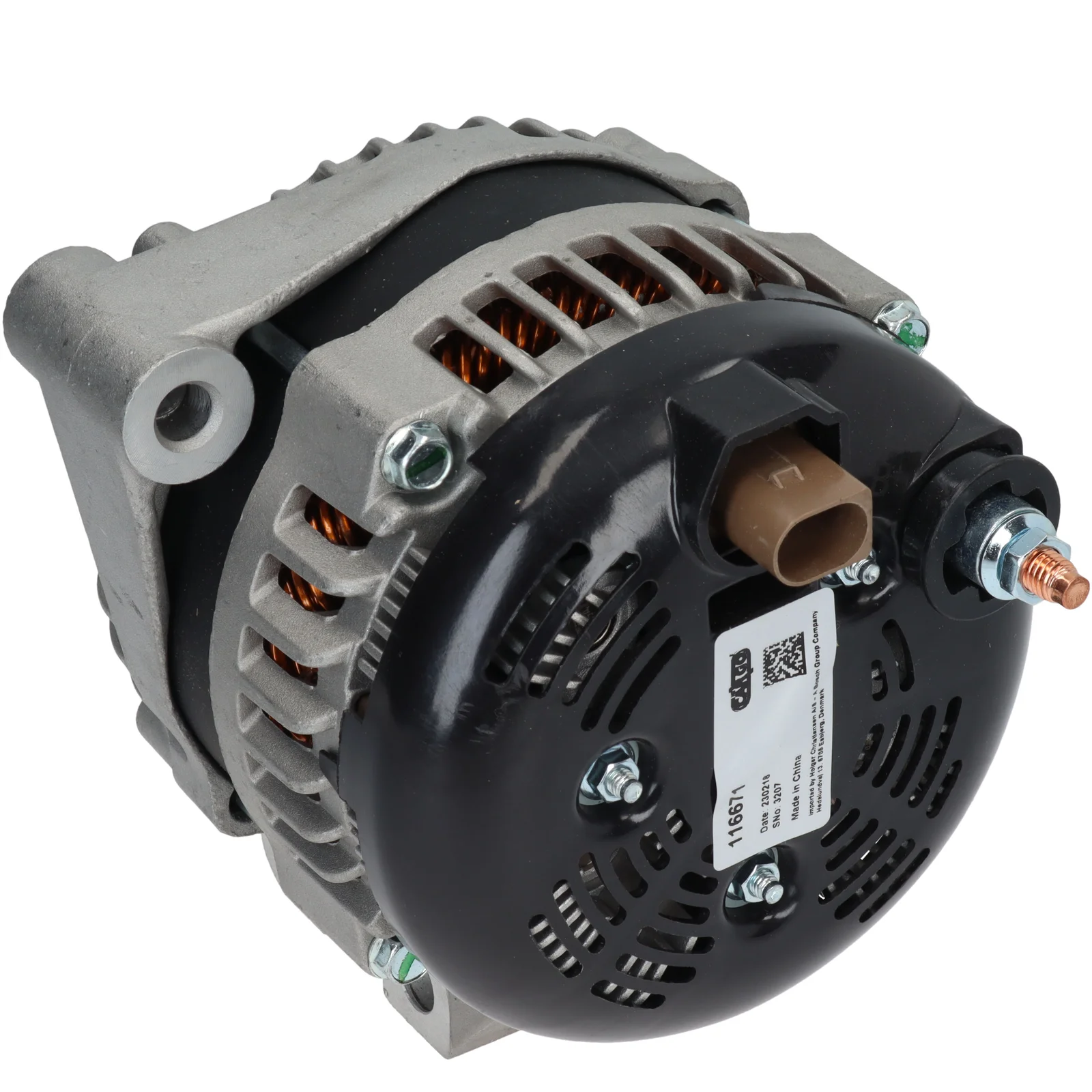

HC-Cargo Alternator

Technical info:

Voltage: 14, Amp: 220, Rotation: CW, Mounting bracket distributor: 47.00

Description

Voltage: 14
Amp: 220
Pulley | Drev. dist.: 22.00
Width/holder arm: 50.00
Mount. bracket dist.: 47.00
Bracket hole: 11.50x14.00
Belt. adj. brackethole pos.: 50
Belt. adj. bracket hole 1: 10.30
Pulley dia.: 52.50
Grooves/pulley: 6
Radius: 84.00
Radius 2: 87.00
B+ Length mm: 13.50
B+: M8
Position/B+ in min.: 10
Rotation: CW
Plug no.: PL174
Total length mm: 194.00
Terminal type: COM
Communication: LIN
Pulley | Drev. → Pulley
Fan: IF
Regulator | Regul. type: IR
Remarks: This Alternator has a COM terminal on the voltage regulator. It is recommended that the OEM number is used to check suitability before ordering.

Files

  • OEM
    BH4210300AC, F032116671, LR022528, LR055316, LR072762, 021080-0250, 104210-6280, 104210-6281

  • Normalised article numbler
    a6403s, bh4210300ac, cal40398, dan1110, dra1655, f032116671, lr022528, lr055316, lr072762, lra03886, 8el015637601, 21023os, 40446, 209430, 209430a, 286996, 444259, 553742ri, 12090754, 32118826, 0210800250, 455533220, 1042106280, 1042106281, 2141842202
  • Description
    Voltage: 14
    Amp: 220
    Pulley | Drev. dist.: 22.00
    Width/holder arm: 50.00
    Mount. bracket dist.: 47.00
    Bracket hole: 11.50x14.00
    Belt. adj. brackethole pos.: 50
    Belt. adj. bracket hole 1: 10.30
    Pulley dia.: 52.50
    Grooves/pulley: 6
    Radius: 84.00
    Radius 2: 87.00
    B+ Length mm: 13.50
    B+: M8
    Position/B+ in min.: 10
    Rotation: CW
    Plug no.: PL174
    Total length mm: 194.00
    Terminal type: COM
    Communication: LIN
    Pulley | Drev. → Pulley
    Fan: IF
    Regulator | Regul. type: IR
    Remarks: This Alternator has a COM terminal on the voltage regulator. It is recommended that the OEM number is used to check suitability before ordering.

    Files

  • Suitable for these vehicles

    • OEM
      BH4210300AC, F032116671, LR022528, LR055316, LR072762, 021080-0250, 104210-6280, 104210-6281

    • Normalised article numbler
      a6403s, bh4210300ac, cal40398, dan1110, dra1655, f032116671, lr022528, lr055316, lr072762, lra03886, 8el015637601, 21023os, 40446, 209430, 209430a, 286996, 444259, 553742ri, 12090754, 32118826, 0210800250, 455533220, 1042106280, 1042106281, 2141842202
