Article no.: F032112360

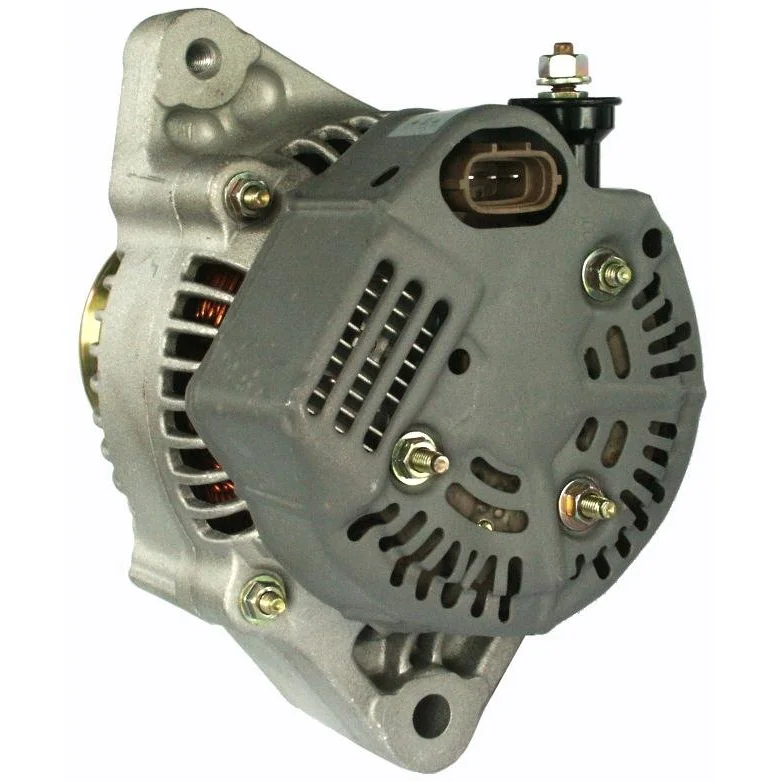

HC-Cargo Alternator

Technical info:

Voltage: 14, Amps: 60, Rotation: CW, Pulley diameter: 71.40

Description

Voltage: 14
Amp: 60
Pulley dist.: 93.50
Width/holder arm: 58.30
Bracket hole: 10.30
Belt. adj. brackethole pos.: 4
Belt. adj. bracket hole 1: M8
Pulley dia.: 71.40
Grooves/pulley: 2
Radius: 79.50
Radius 2: 83.00
B+: M6
Position/B+ in min.: 4
D+ Size: Plug
Rotation: CW
Plug no.: PL42
Total length mm: 164.50
Pulley: DP
Alternator type: IR
Prod. info: Reman
Servicing: Toyota

Files

  • OEM
    F032112360, 27060-17160, 27060-17210, 101211-0270, 101211-0271, 101211-0272, 102211-5110, 102211-5111

  • Normalised article numbler
    a6694s, dra0335, f032112360, j5112110, lra02134, 119952, 284580, 401597ri, 12060871, 535121602, 1012110270, 1012110271, 1012110272, 1022115110, 1022115111, 2706017160, 2706017210
  • Description
    Voltage: 14
    Amp: 60
    Pulley dist.: 93.50
    Width/holder arm: 58.30
    Bracket hole: 10.30
    Belt. adj. brackethole pos.: 4
    Belt. adj. bracket hole 1: M8
    Pulley dia.: 71.40
    Grooves/pulley: 2
    Radius: 79.50
    Radius 2: 83.00
    B+: M6
    Position/B+ in min.: 4
    D+ Size: Plug
    Rotation: CW
    Plug no.: PL42
    Total length mm: 164.50
    Pulley: DP
    Alternator type: IR
    Prod. info: Reman
    Servicing: Toyota

    Files

  • Suitable for these vehicles

    • OEM
      F032112360, 27060-17160, 27060-17210, 101211-0270, 101211-0271, 101211-0272, 102211-5110, 102211-5111

    • Normalised article numbler
      a6694s, dra0335, f032112360, j5112110, lra02134, 119952, 284580, 401597ri, 12060871, 535121602, 1012110270, 1012110271, 1012110272, 1022115110, 1022115111, 2706017160, 2706017210
