Article no.: F032110563

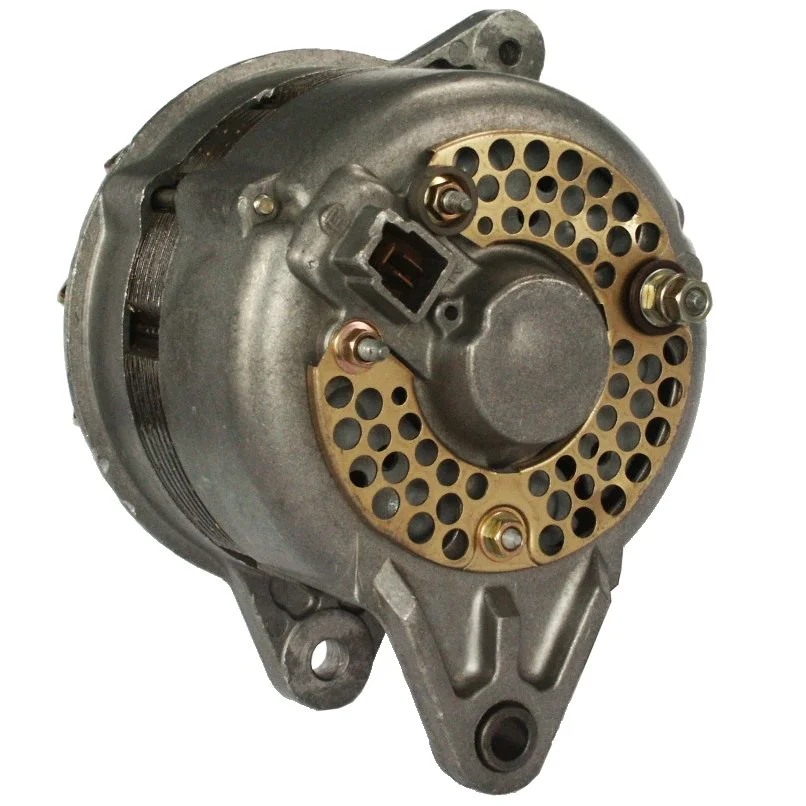

HC-Cargo Alternator

Technical info:

Voltage: 28, Amp: 15, Rotation: CW, Mount. bracket dist.: 76.00

Description

Toyota Truck Alternator 24V-25A 24V - 25A, E/R Voltage regulator = VR-8521 For Yourex product order 90-558-2206

Voltage: 28
Amp: 15
Pulley dist.: 48.20
Width/holder arm: 12.20
Mounting bracket dist.: 76.00
Bracket hole: 10.20
Belt adjustment bracket hole position.: 50
Belt adjustment bracket hole 1: M8
Idler pulley dia.: 84.70
Grooves/pulley: 1
Radius: 87.00
Radius 2: 87.50
B+: M6
Position/B+ in min.: 55
Rotation: CW
Plug no.: PL15
Total length mm: 161.00
Pulley: P
Voltage regulator: without
Product info: BN
Servicing: Toyota
Remarks: Voltage regulator: HC-CARGO 132628.

Files

  • OEM
    F032110563, 11-0563, 021000-4270, 021000-4271, 021000-4510, 021000-4710, 021000-4711, 021000-8910, 27020-10940, 27020-78601-71, 27020-96601

  • Normalised article numbler
    alt30102, cal40609, dra4341, f032110563, 8el730125001, 5421, 12020, 14578, 56238, 110563, 118221, 471588, 1188801nd, 12060558, 32118807, 0210004270, 0210004271, 0210004510, 0210004710, 0210004711, 0210008910, 535001204, 535002204, 0986034341, 2702010940, 2702096601, 270207860171
  • Description
    Toyota Truck Alternator 24V-25A 24V - 25A, E/R Voltage regulator = VR-8521 For Yourex product order 90-558-2206

    Voltage: 28
    Amp: 15
    Pulley dist.: 48.20
    Width/holder arm: 12.20
    Mounting bracket dist.: 76.00
    Bracket hole: 10.20
    Belt adjustment bracket hole position.: 50
    Belt adjustment bracket hole 1: M8
    Idler pulley dia.: 84.70
    Grooves/pulley: 1
    Radius: 87.00
    Radius 2: 87.50
    B+: M6
    Position/B+ in min.: 55
    Rotation: CW
    Plug no.: PL15
    Total length mm: 161.00
    Pulley: P
    Voltage regulator: without
    Product info: BN
    Servicing: Toyota
    Remarks: Voltage regulator: HC-CARGO 132628.

    Files

  • Suitable for these vehicles

    • OEM
      F032110563, 11-0563, 021000-4270, 021000-4271, 021000-4510, 021000-4710, 021000-4711, 021000-8910, 27020-10940, 27020-78601-71, 27020-96601

    • Normalised article numbler
      alt30102, cal40609, dra4341, f032110563, 8el730125001, 5421, 12020, 14578, 56238, 110563, 118221, 471588, 1188801nd, 12060558, 32118807, 0210004270, 0210004271, 0210004510, 0210004710, 0210004711, 0210008910, 535001204, 535002204, 0986034341, 2702010940, 2702096601, 270207860171
