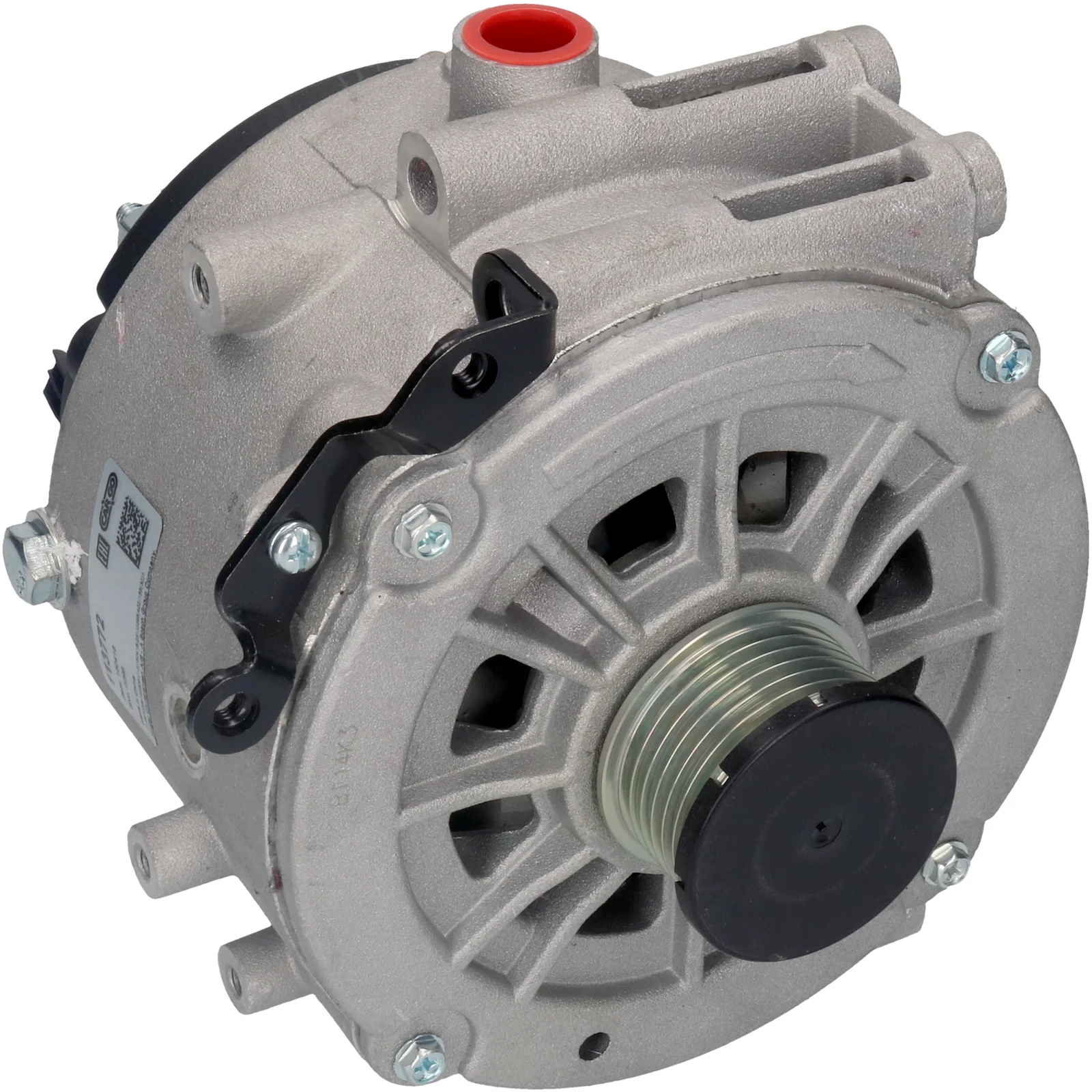

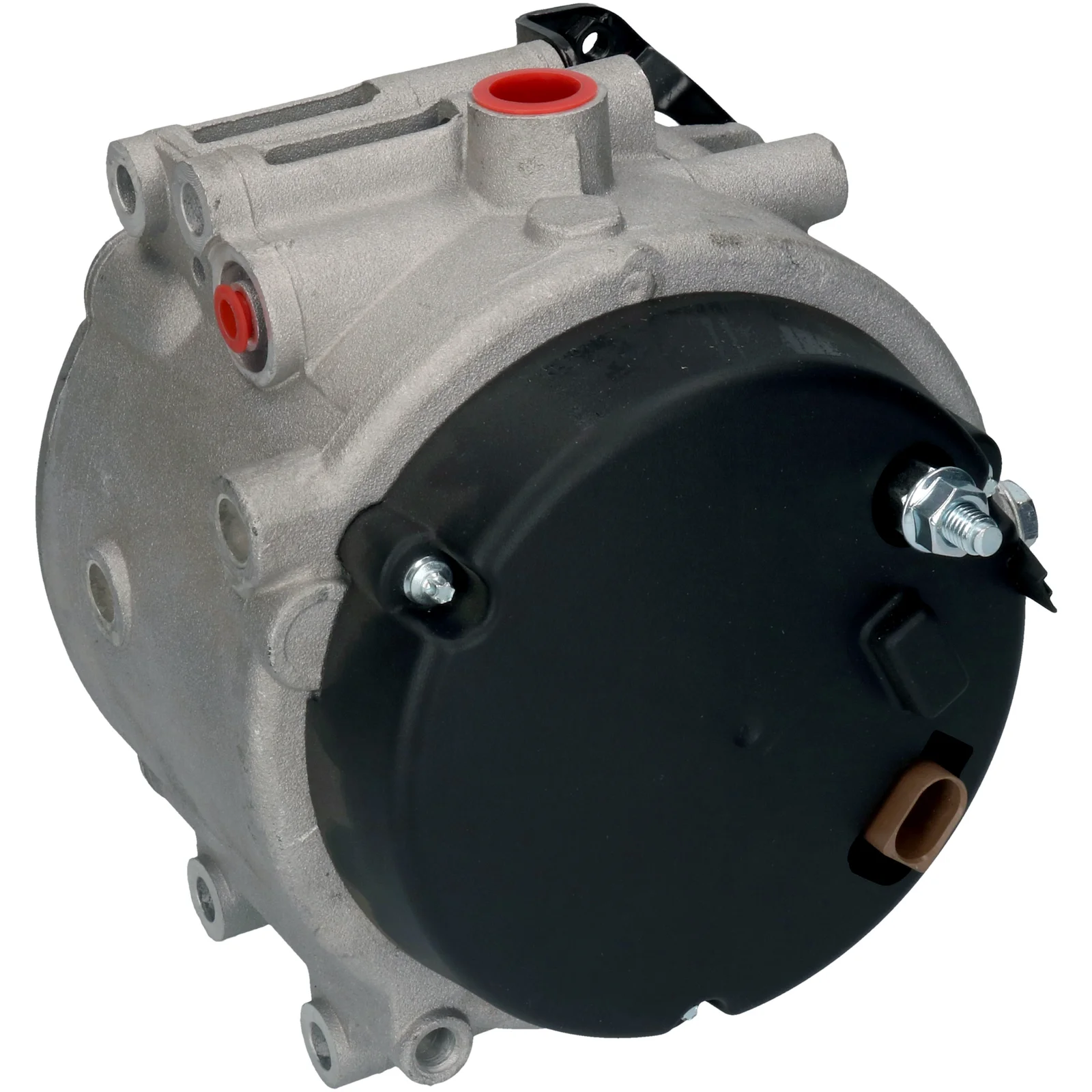

HC-Cargo Alternator
HC-Cargo Alternator
Article no.: F032113772

HC-Cargo Alternator

Technical info:

Voltage: 14, Amp: 190, Rotation: CW, Mounting bracket distance: 56.00

Description

Voltage: 14
Amp: 190
Pulley dist.: 31.00
Width/holder arm: 93.50
Mount. bracket dist.: 56.00
Bracket hole: 8.00
Bracket hole 2: 9.20
Belt. adj. bracket hole pos.: 60
Belt. adj. bracket hole 1: 8.00
Belt. adj. bracket hole 2: 9.20
Pulley dia.: 49.70
Grooves/pulley: 6
B+: M8
Position/B+ in min.: 10
D+ Size: Plug
Rotation: CW
Plug no.: PL112
Total length mm: 195.00
Pulley: SP/FW
Regulator type: IR
Prod. info: BN
Servicing: Mercedes
Remarks: Water cooled.

Files

  • OEM
    A00011502550, A0001501750, A0001502550, aan7112, F032113772, 11.203.632, 1838ir, 0001501750, 0001502550, 10480404, 10480408, 00011502550

  • Normalised article numbler
    a00011502550, a0001501750, a0001502550, a1015, a1015pr, a1015r, aan7112, cal12102, dra4035, dra4035n, f032113772, ia1260, lra02162, 8el011710821, 1838ir, 4817, 23162n, 23162r, 200241, 210383, 210383a, 284616, 301838ri, 440656, 0001501750, 0001502550, 10480404, 10480408, 11203632, 00011502550, 12048990, 32041790, 0986042456, 0986048990, 0986048996, 5251121902, 5251151902
  • Description
    Voltage: 14
    Amp: 190
    Pulley dist.: 31.00
    Width/holder arm: 93.50
    Mount. bracket dist.: 56.00
    Bracket hole: 8.00
    Bracket hole 2: 9.20
    Belt. adj. bracket hole pos.: 60
    Belt. adj. bracket hole 1: 8.00
    Belt. adj. bracket hole 2: 9.20
    Pulley dia.: 49.70
    Grooves/pulley: 6
    B+: M8
    Position/B+ in min.: 10
    D+ Size: Plug
    Rotation: CW
    Plug no.: PL112
    Total length mm: 195.00
    Pulley: SP/FW
    Regulator type: IR
    Prod. info: BN
    Servicing: Mercedes
    Remarks: Water cooled.

    Files

  • Suitable for these vehicles

    • OEM
      A00011502550, A0001501750, A0001502550, aan7112, F032113772, 11.203.632, 1838ir, 0001501750, 0001502550, 10480404, 10480408, 00011502550

    • Normalised article numbler
      a00011502550, a0001501750, a0001502550, a1015, a1015pr, a1015r, aan7112, cal12102, dra4035, dra4035n, f032113772, ia1260, lra02162, 8el011710821, 1838ir, 4817, 23162n, 23162r, 200241, 210383, 210383a, 284616, 301838ri, 440656, 0001501750, 0001502550, 10480404, 10480408, 11203632, 00011502550, 12048990, 32041790, 0986042456, 0986048990, 0986048996, 5251121902, 5251151902
