Article no.: F032113283

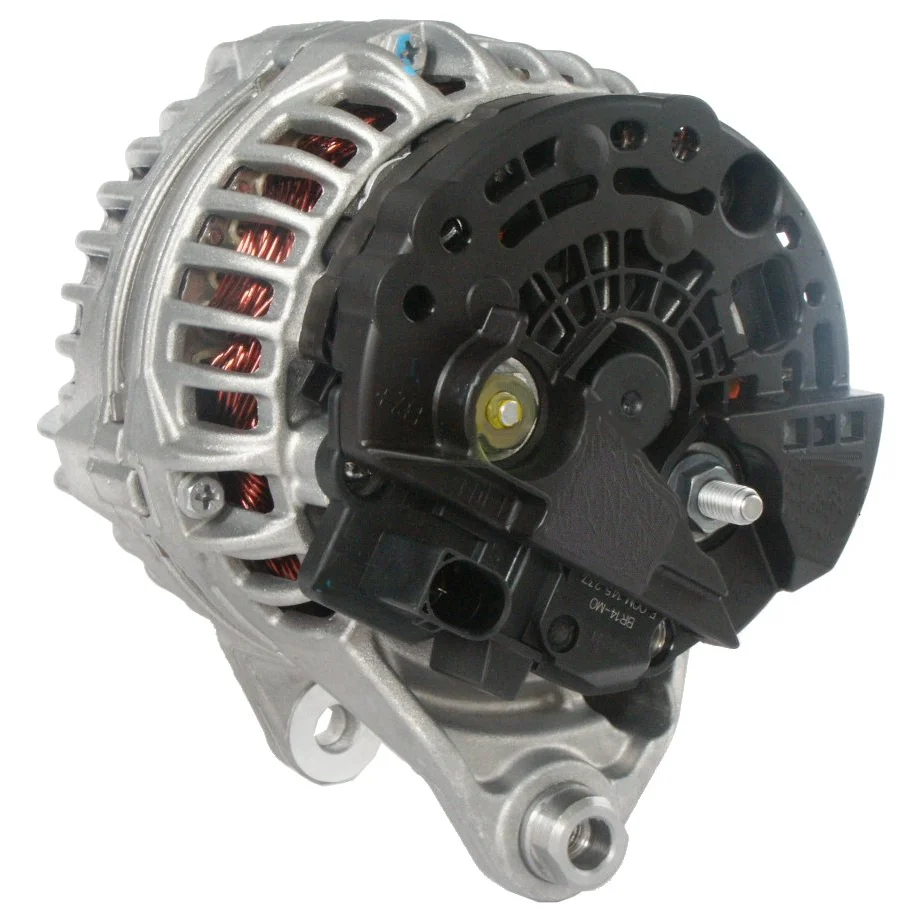

HC-Cargo Alternator

Technical info:

Voltage: 14, Amp: 120, Rotation: CW, Mounting bracket distributor: 82.00

Description

Voltage: 14
Amp: 120
Pulley arrangement: 34.20
Width/holder arm: 14.00
Mounting bracket arrangement: 82.00
Bracket hole: 10.30
Belt tension adjustment bracket hole position: 50
Belt tension adjustment bracket hole 1: 9.70
Pulley diameter: 56.20
Grooves/pulley: 5
Radius: 92.00
Radius 2: 96.00
B+: M8
Position/B+ in minutes: 20
Rotation: CW
Plug no.: PL61
Total length mm: 181.50
Pulley: SP
Regulator type: IR
Servicing: Audi

Files

  • OEM
    A0573S, A3054, ALT-H123, ALT10374, ALT14184, CAL15251, dra0135, DRB4310, F032113283, F042A0H123, LRA01969, 06B903016F, 06B903016G, 8EL012426-111, 8EL737986-001, 28-3868, 038 903 018 F, 211.191.1202, 211.314.1202, 1986A00840, 13931, 13932, 13951, 13951N, 13951R, 23242R, 23244R, 210535, 210535A, 301664RI, 437176, 439263, 2542295, 2542295A, 9044310, 12044310, 32044310, 071903016E, 0124515027, 0124515030, 0124515034, 0986044310, 944390443100

  • Normalised article numbler
    a0573s, a3054, alt10374, alt14184, alth123, cal15251, dra0135, drb4310, f032113283, f042a0h123, lra01969, 06b903016f, 06b903016g, 8el012426111, 8el737986001, 1986a00840, 13931, 13932, 13951, 13951n, 13951r, 23242r, 23244r, 210535, 210535a, 283868, 301664ri, 437176, 439263, 2542295, 2542295a, 9044310, 12044310, 32044310, 038903018f, 071903016e, 0124515027, 0124515030, 0124515034, 0986044310, 2111911202, 2113141202, 944390443100
  • Description
    Voltage: 14
    Amp: 120
    Pulley arrangement: 34.20
    Width/holder arm: 14.00
    Mounting bracket arrangement: 82.00
    Bracket hole: 10.30
    Belt tension adjustment bracket hole position: 50
    Belt tension adjustment bracket hole 1: 9.70
    Pulley diameter: 56.20
    Grooves/pulley: 5
    Radius: 92.00
    Radius 2: 96.00
    B+: M8
    Position/B+ in minutes: 20
    Rotation: CW
    Plug no.: PL61
    Total length mm: 181.50
    Pulley: SP
    Regulator type: IR
    Servicing: Audi

    Files

  • Suitable for these vehicles

    • OEM
      A0573S, A3054, ALT-H123, ALT10374, ALT14184, CAL15251, dra0135, DRB4310, F032113283, F042A0H123, LRA01969, 06B903016F, 06B903016G, 8EL012426-111, 8EL737986-001, 28-3868, 038 903 018 F, 211.191.1202, 211.314.1202, 1986A00840, 13931, 13932, 13951, 13951N, 13951R, 23242R, 23244R, 210535, 210535A, 301664RI, 437176, 439263, 2542295, 2542295A, 9044310, 12044310, 32044310, 071903016E, 0124515027, 0124515030, 0124515034, 0986044310, 944390443100

    • Normalised article numbler
      a0573s, a3054, alt10374, alt14184, alth123, cal15251, dra0135, drb4310, f032113283, f042a0h123, lra01969, 06b903016f, 06b903016g, 8el012426111, 8el737986001, 1986a00840, 13931, 13932, 13951, 13951n, 13951r, 23242r, 23244r, 210535, 210535a, 283868, 301664ri, 437176, 439263, 2542295, 2542295a, 9044310, 12044310, 32044310, 038903018f, 071903016e, 0124515027, 0124515030, 0124515034, 0986044310, 2111911202, 2113141202, 944390443100
