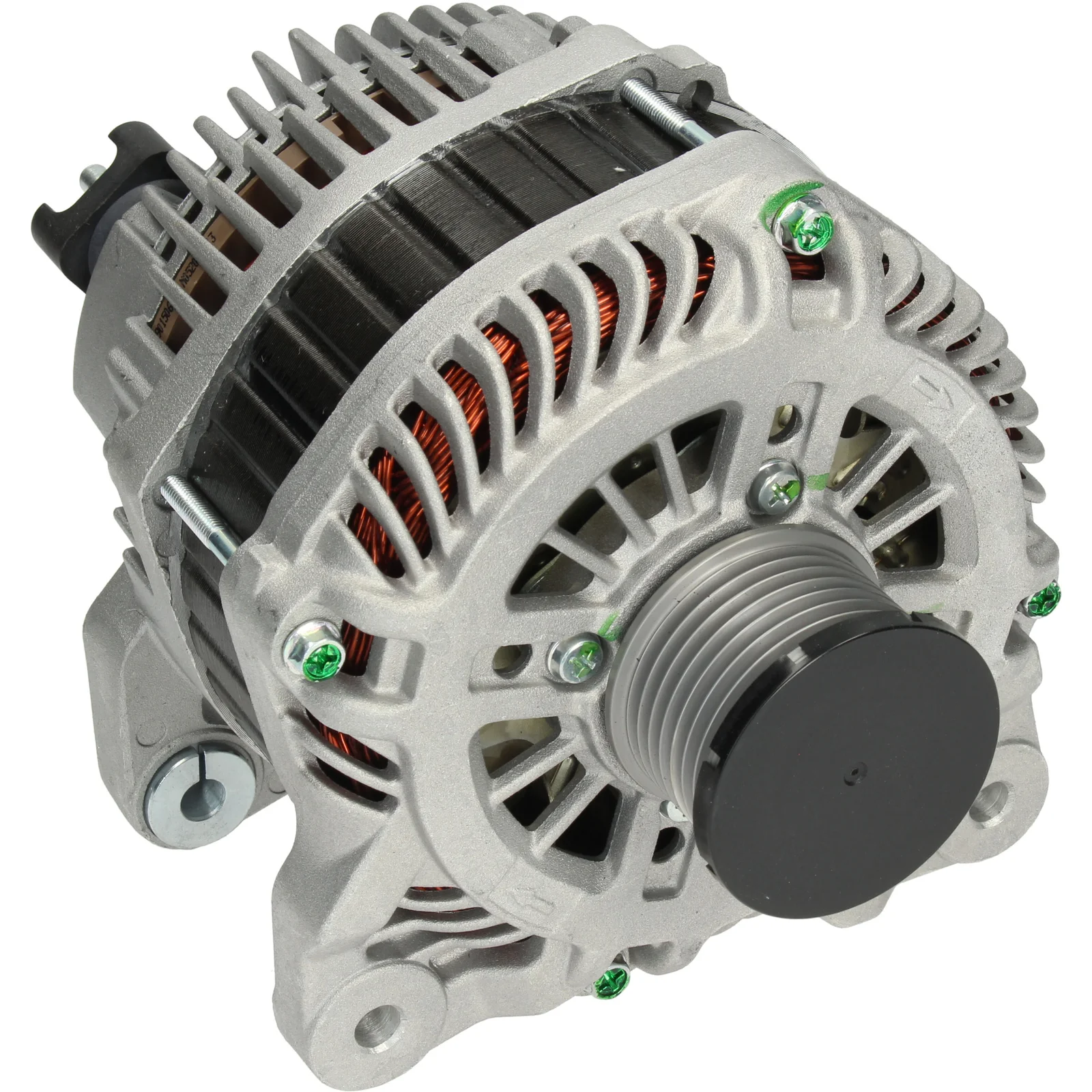

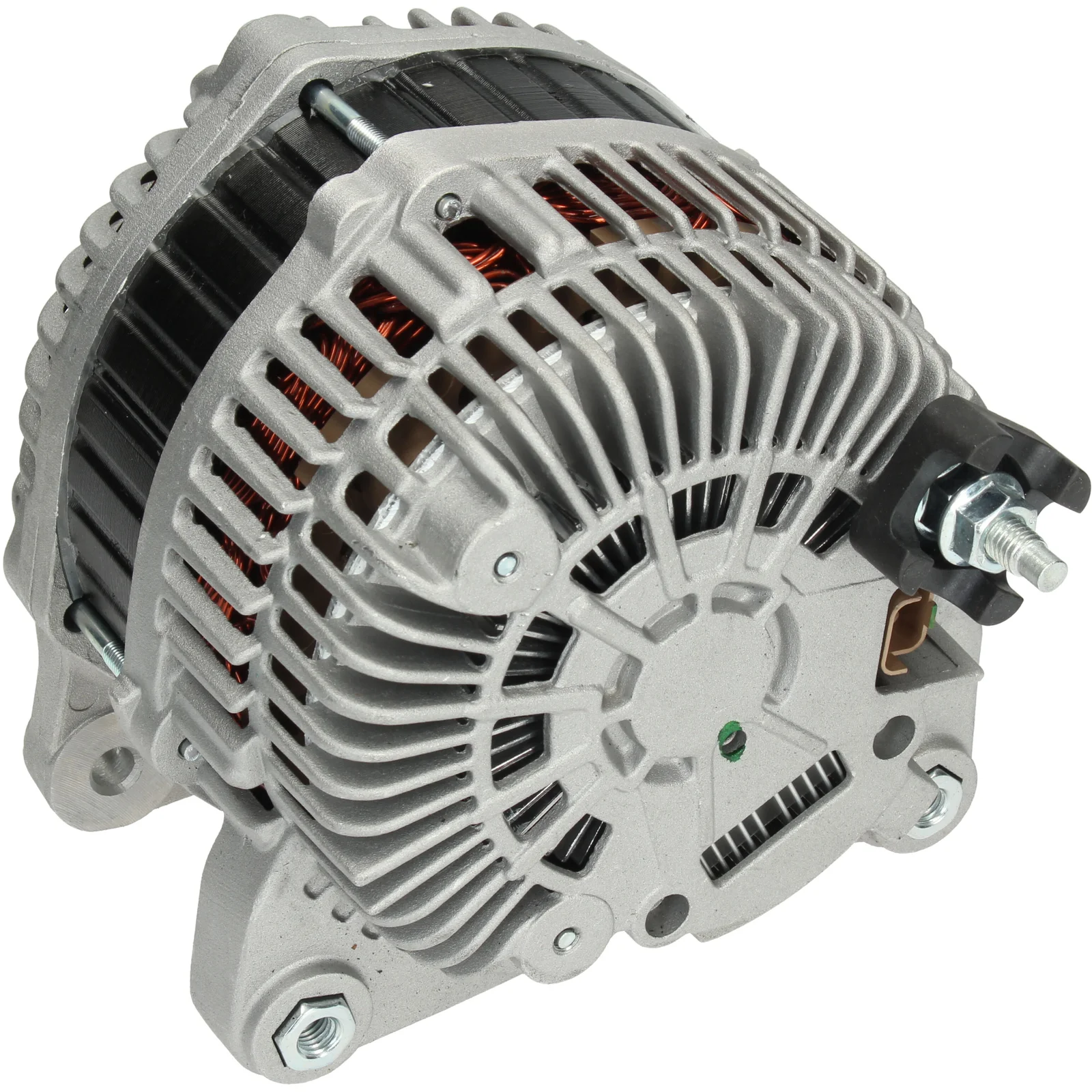

HC-Cargo Alternator
HC-Cargo Alternator
Article no.: F032114670

HC-Cargo Alternator

Technical info:

Voltage: 14, Amps: 210, Rotation: CW, Pulley diameter: 49.00

Description

Voltage: 14
Amps: 210
Pulley distributor: 33.00
Width/holder arm: 14.50
Bracket hole: 8.70
Belt adjustment bracket hole position: 45
Belt adjustment bracket hole 1: 8.70
Pulley diameter: 49.00
Grooves/pulley: 7
Radius: 90.00
Radius 2: 90.00
B+: M8
Position/B+ in minutes: 3
D+ Size: Plug
Rotation: CW
Plug number: PL72
Total length mm: 198.50
Terminal type: L-DF/DFM
Pulley: SP/FW
Fan: IF
Regulator type: IR

Files

  • OEM
    A4TJ0381, a4tj0382, A4TJ0382ZE, F032114670, 7711368438, 8200404464, 8200654789, 8200960538

  • Normalised article numbler
    a4tj0381, a4tj0382, a4tj0382ze, a5410s, cal35259, dra1312, f032114670, 20254r, 286990, 440898, 443373, 12090502, 2303362102, 7711368438, 8200404464, 8200654789, 8200960538
  • Description
    Voltage: 14
    Amps: 210
    Pulley distributor: 33.00
    Width/holder arm: 14.50
    Bracket hole: 8.70
    Belt adjustment bracket hole position: 45
    Belt adjustment bracket hole 1: 8.70
    Pulley diameter: 49.00
    Grooves/pulley: 7
    Radius: 90.00
    Radius 2: 90.00
    B+: M8
    Position/B+ in minutes: 3
    D+ Size: Plug
    Rotation: CW
    Plug number: PL72
    Total length mm: 198.50
    Terminal type: L-DF/DFM
    Pulley: SP/FW
    Fan: IF
    Regulator type: IR

    Files

  • Suitable for these vehicles

    • OEM
      A4TJ0381, a4tj0382, A4TJ0382ZE, F032114670, 7711368438, 8200404464, 8200654789, 8200960538

    • Normalised article numbler
      a4tj0381, a4tj0382, a4tj0382ze, a5410s, cal35259, dra1312, f032114670, 20254r, 286990, 440898, 443373, 12090502, 2303362102, 7711368438, 8200404464, 8200654789, 8200960538
