HC-Cargo Alternator
HC-Cargo Alternator
Article no.: F032113330

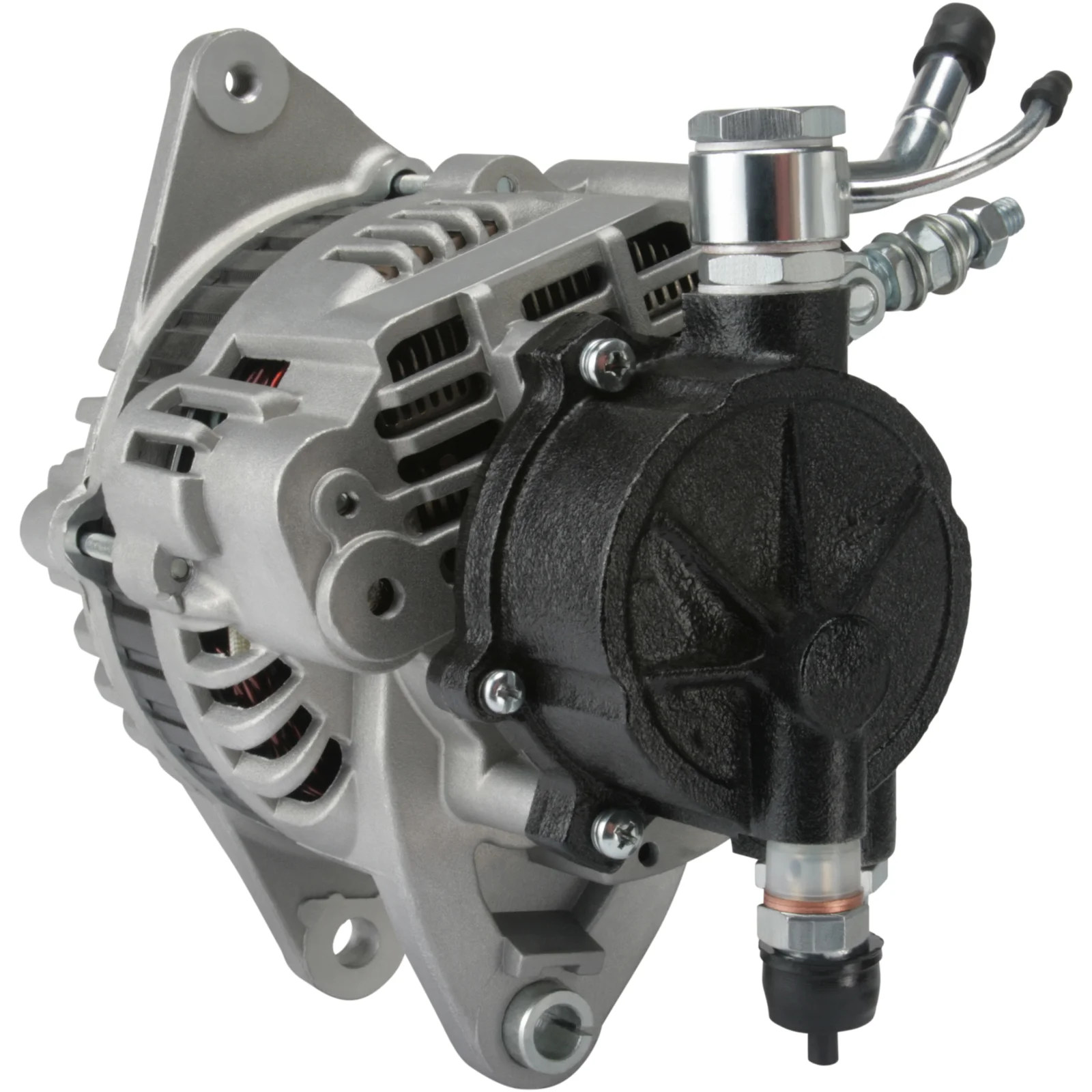

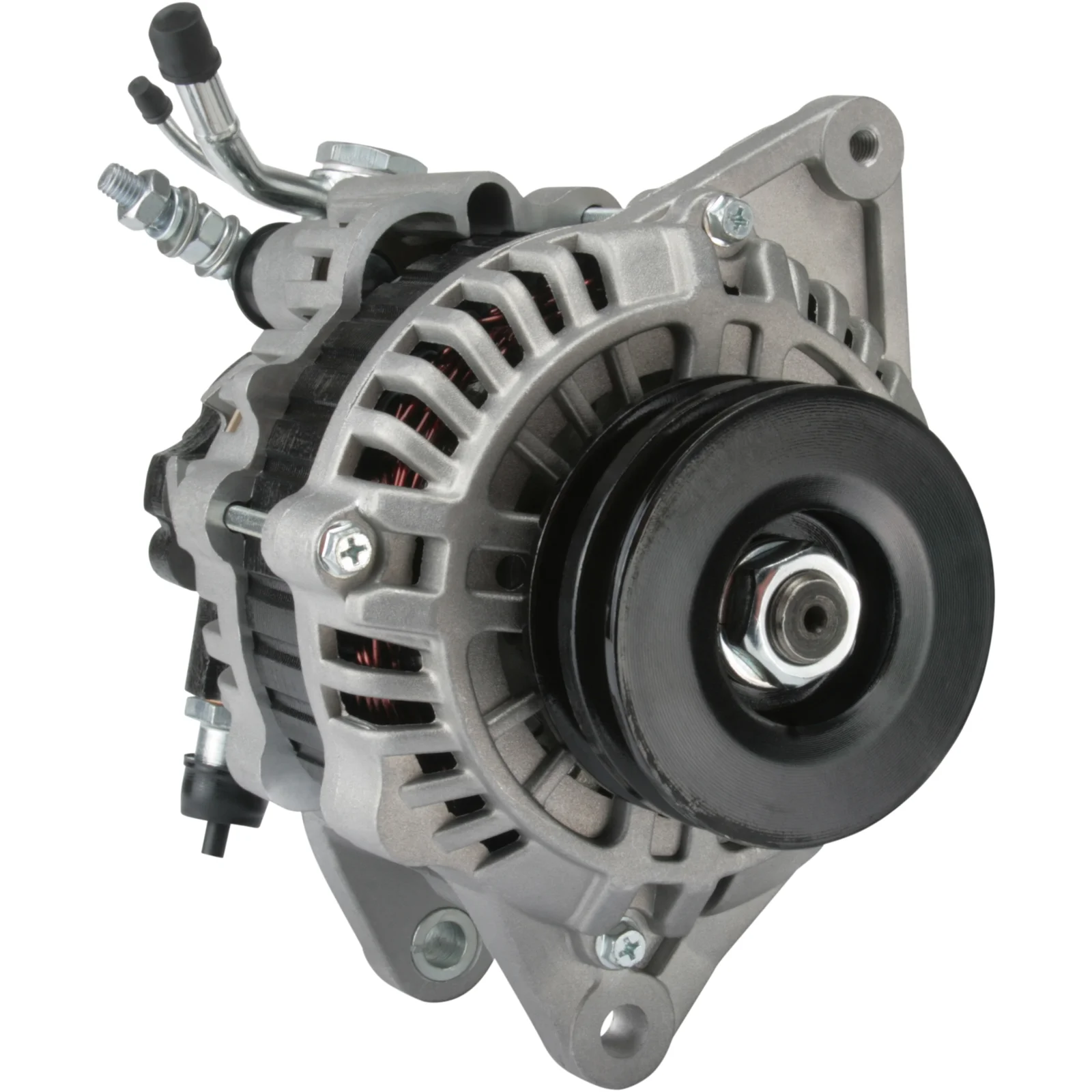

HC-Cargo Alternator

Technical info:

Voltage: 14, Amps: 75, Rotation: CW, Mounting bracket distance: 55.00

Description

Hyndai Diesel Alternator 12V-75A 12V - 75A, 2V pulley, (S, L) WITHOUT A/C / Without Air Conditioner For Your product order 90-228-4245

Voltage: 14
Amp: 75
Pulley dist.: 42.00
Width/holder arm: 13.00
Mount. bracket dist.: 55.00
Bracket hole: 10.70
Belt. adj. brackethole pos.: 5
Belt. adj. bracket hole 1: M8
Pulley dia.: 85.60
Grooves/pulley: 2
Radius: 90.00
Radius 2: 97.00
B+: M8
Position/B+ in min.: 10
D+ Size: Plug
Rotation: CW
Plug no.: PL07
Total length mm: 226.00
Pulley: DP
Regulator type: IR
Vac. pump: Yes
Prod. info: BN
Servicing: Hyundai

Files

  • OEM
    AF 175363, af175363, AF175476, F032113330, F032113519, ja1711ir, TA000A54701, TA000A54702, TA000A57401, TA000A64201, 37300-42451, 37300-42452, 37300-42454, 37300-42455, 37300-42456, 37300-42457, 37300-42458, 37300-42459, 37300-42470, 37300-42471, 37300-42472, 37300-42473, 37300-42474, 37300-42711, 113330, 113519, 2655734

  • Normalised article numbler
    a3243s, a3243valeo, a9145, a9145mando, a9166, af175363, af175476, alt35012, alt7232, alth129, cal32121, cal32147, dra4268, dra4268n, drb9920, f032113330, f032113519, f042a0b039, f042a0h129, j5110506, j5110527, ja1711ir, lra01961, lra02923, ta000a54701, ta000a54702, ta000a57401, ta000a64201, 8el011711241, 8el012240411, 8el012240421, 8el738086001, 9419, 111305, 112542, 113330, 113519, 210372, 210372a, 210801, 210801a, 283859, 285538, 287505, 401711ri, 600010, 600267, 600268, 2655734, 9213471, 12060825, 12060885, 063532609, 526126752, 526147752, 526154752, 0986049920, 3730042451, 3730042452, 3730042454, 3730042455, 3730042456, 3730042457, 3730042458, 3730042459, 3730042470, 3730042471, 3730042472, 3730042473, 3730042474, 3730042711, 063532609010
  • Description
    Hyndai Diesel Alternator 12V-75A 12V - 75A, 2V pulley, (S, L) WITHOUT A/C / Without Air Conditioner For Your product order 90-228-4245

    Voltage: 14
    Amp: 75
    Pulley dist.: 42.00
    Width/holder arm: 13.00
    Mount. bracket dist.: 55.00
    Bracket hole: 10.70
    Belt. adj. brackethole pos.: 5
    Belt. adj. bracket hole 1: M8
    Pulley dia.: 85.60
    Grooves/pulley: 2
    Radius: 90.00
    Radius 2: 97.00
    B+: M8
    Position/B+ in min.: 10
    D+ Size: Plug
    Rotation: CW
    Plug no.: PL07
    Total length mm: 226.00
    Pulley: DP
    Regulator type: IR
    Vac. pump: Yes
    Prod. info: BN
    Servicing: Hyundai

    Files

  • Suitable for these vehicles

    • OEM
      AF 175363, af175363, AF175476, F032113330, F032113519, ja1711ir, TA000A54701, TA000A54702, TA000A57401, TA000A64201, 37300-42451, 37300-42452, 37300-42454, 37300-42455, 37300-42456, 37300-42457, 37300-42458, 37300-42459, 37300-42470, 37300-42471, 37300-42472, 37300-42473, 37300-42474, 37300-42711, 113330, 113519, 2655734

    • Normalised article numbler
      a3243s, a3243valeo, a9145, a9145mando, a9166, af175363, af175476, alt35012, alt7232, alth129, cal32121, cal32147, dra4268, dra4268n, drb9920, f032113330, f032113519, f042a0b039, f042a0h129, j5110506, j5110527, ja1711ir, lra01961, lra02923, ta000a54701, ta000a54702, ta000a57401, ta000a64201, 8el011711241, 8el012240411, 8el012240421, 8el738086001, 9419, 111305, 112542, 113330, 113519, 210372, 210372a, 210801, 210801a, 283859, 285538, 287505, 401711ri, 600010, 600267, 600268, 2655734, 9213471, 12060825, 12060885, 063532609, 526126752, 526147752, 526154752, 0986049920, 3730042451, 3730042452, 3730042454, 3730042455, 3730042456, 3730042457, 3730042458, 3730042459, 3730042470, 3730042471, 3730042472, 3730042473, 3730042474, 3730042711, 063532609010
