HC-Cargo Alternator
HC-Cargo Alternator
Article no.: F032116444

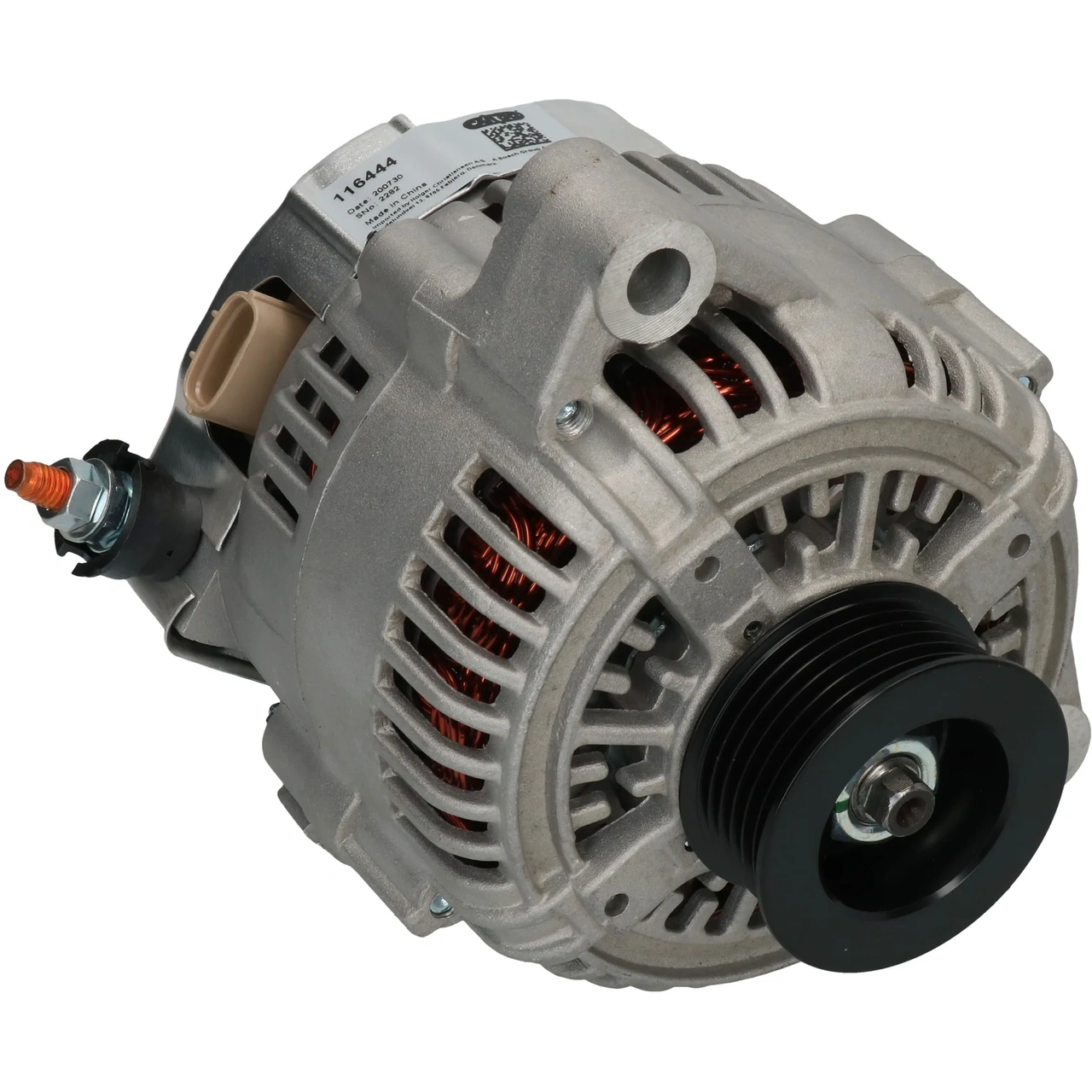

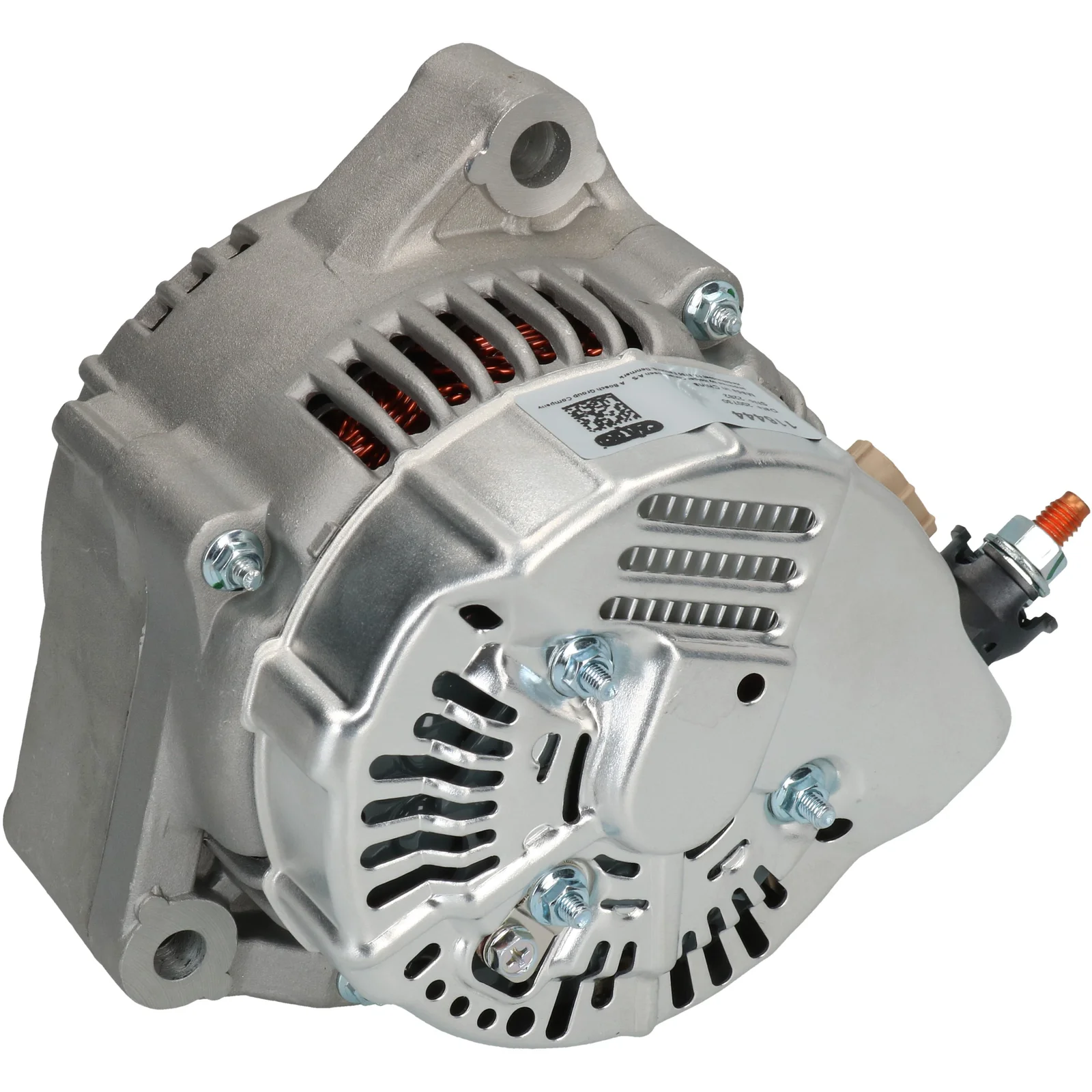

HC-Cargo Alternator

Technical info:

Voltage: 14, Amp: 100, Pulley diameter: 57.00, Radius: 85.00

Description

Voltage: 14
Amp: 100
Pulley dist.: 88.00
Width/holder arm: 56.00
Bracket hole: 10.50
Belt. adj. brackethole pos.: 8
Belt. adj. bracket hole 1: 12.00
Pulley dia.: 57.00
Grooves/pulley: 6
Radius: 85.00
Radius 2: 84.00
B+: M8
Position/B+ in min.: 55
Plug no.: PL42
Total length mm: 170.00
Terminal type: L-IG-S
Lamp type: Inactive
Pulley: SP
Fan: IF

Files

  • OEM
    F032116444, 27060-43220, 27060-46270, 27060-46300, 101211-7310, 101211-7800, 102211-0730

  • Normalised article numbler
    cal40252, dra0657, f032116444, j5112107, lra01927, 13715n, 13791n, 283813, 553725ri, 9062107, 12060746, 195561100, 1012117310, 1012117800, 1022110730, 2706043220, 2706046270, 2706046300
  • Description
    Voltage: 14
    Amp: 100
    Pulley dist.: 88.00
    Width/holder arm: 56.00
    Bracket hole: 10.50
    Belt. adj. brackethole pos.: 8
    Belt. adj. bracket hole 1: 12.00
    Pulley dia.: 57.00
    Grooves/pulley: 6
    Radius: 85.00
    Radius 2: 84.00
    B+: M8
    Position/B+ in min.: 55
    Plug no.: PL42
    Total length mm: 170.00
    Terminal type: L-IG-S
    Lamp type: Inactive
    Pulley: SP
    Fan: IF

    Files

  • Suitable for these vehicles

    • OEM
      F032116444, 27060-43220, 27060-46270, 27060-46300, 101211-7310, 101211-7800, 102211-0730

    • Normalised article numbler
      cal40252, dra0657, f032116444, j5112107, lra01927, 13715n, 13791n, 283813, 553725ri, 9062107, 12060746, 195561100, 1012117310, 1012117800, 1022110730, 2706043220, 2706046270, 2706046300
