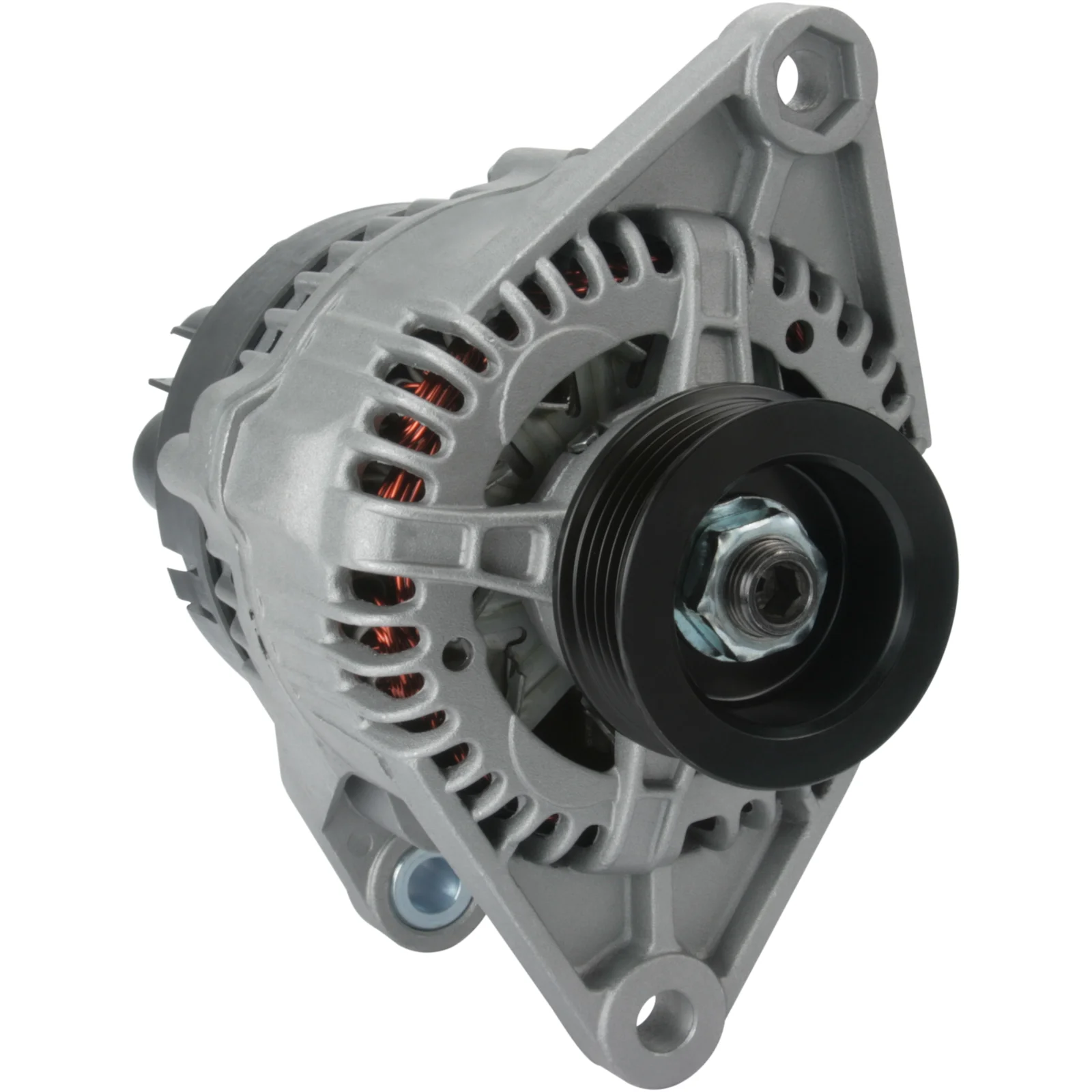

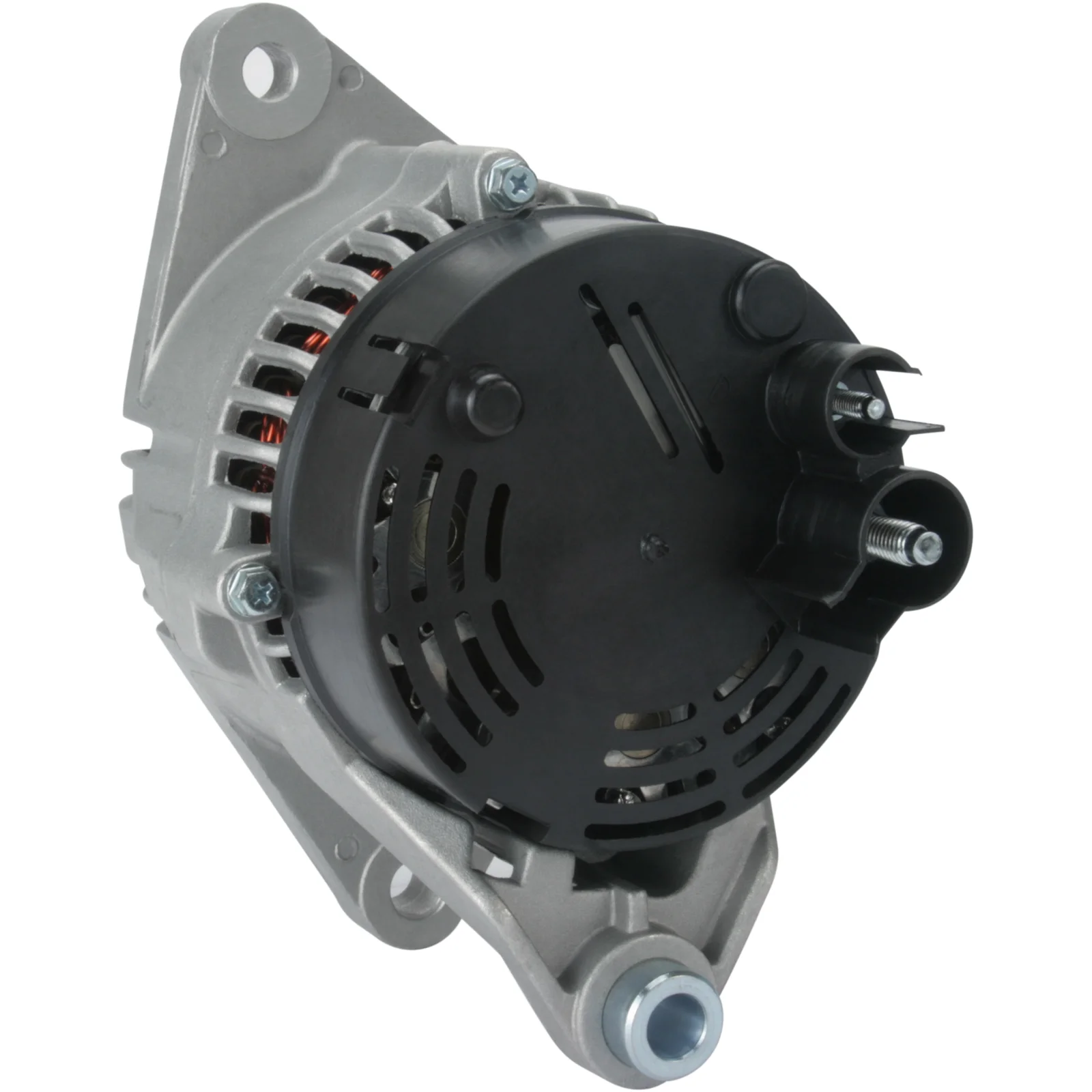

HC-Cargo Alternator
HC-Cargo Alternator
Article no.: F032111802

HC-Cargo Alternator

Technical info:

Voltage: 14, Amps: 75, Rotation: CW, Mounting bracket distance: 81.80

Description

Voltage: 14
Amp: 75
Pulley diameter: 40.50
Width/holder arm: 17.00
Mounting bracket distance: 81.80
Bracket hole: 12.30
Belt adjustment bracket hole position: 3
Belt adjustment bracket hole 1: 11.30
Pulley diameter: 62.40
Grooves/pulley: 5
Radius: 90.00
Radius 2: 90.00
B+: M8
Position/B+ in min.: 15
D+ Size: M5
Rotation: CW
Total length mm: 187.00
Pulley: SP
Regulator type: IR
Product information: BN
Servicing: Fiat

Files

  • OEM
    F032111802, 1258ir, 46430110, 63321205, 63321276, 63321361, 63321617, 1305709080, 1315060080

  • Normalised article numbler
    a4006, a4006pr, a4006r, alt12013, bao3271, cal30126, dan627, dra3424, dra3646, f032111802, fra943, lrb00292, qa3187, 8el737405001, 1258ir, 5921, 21292n, 119702, 210079, 210079a, 282845, 301258ri, 437851, 12090028, 32321620, 46430110, 63321205, 63321276, 63321361, 63321617, 063321620, 218165752, 943321617, 1305709080, 1315060080, 063321617010, 063321620010, 944390900310
  • Description
    Voltage: 14
    Amp: 75
    Pulley diameter: 40.50
    Width/holder arm: 17.00
    Mounting bracket distance: 81.80
    Bracket hole: 12.30
    Belt adjustment bracket hole position: 3
    Belt adjustment bracket hole 1: 11.30
    Pulley diameter: 62.40
    Grooves/pulley: 5
    Radius: 90.00
    Radius 2: 90.00
    B+: M8
    Position/B+ in min.: 15
    D+ Size: M5
    Rotation: CW
    Total length mm: 187.00
    Pulley: SP
    Regulator type: IR
    Product information: BN
    Servicing: Fiat

    Files

  • Suitable for these vehicles

    • OEM
      F032111802, 1258ir, 46430110, 63321205, 63321276, 63321361, 63321617, 1305709080, 1315060080

    • Normalised article numbler
      a4006, a4006pr, a4006r, alt12013, bao3271, cal30126, dan627, dra3424, dra3646, f032111802, fra943, lrb00292, qa3187, 8el737405001, 1258ir, 5921, 21292n, 119702, 210079, 210079a, 282845, 301258ri, 437851, 12090028, 32321620, 46430110, 63321205, 63321276, 63321361, 63321617, 063321620, 218165752, 943321617, 1305709080, 1315060080, 063321617010, 063321620010, 944390900310
