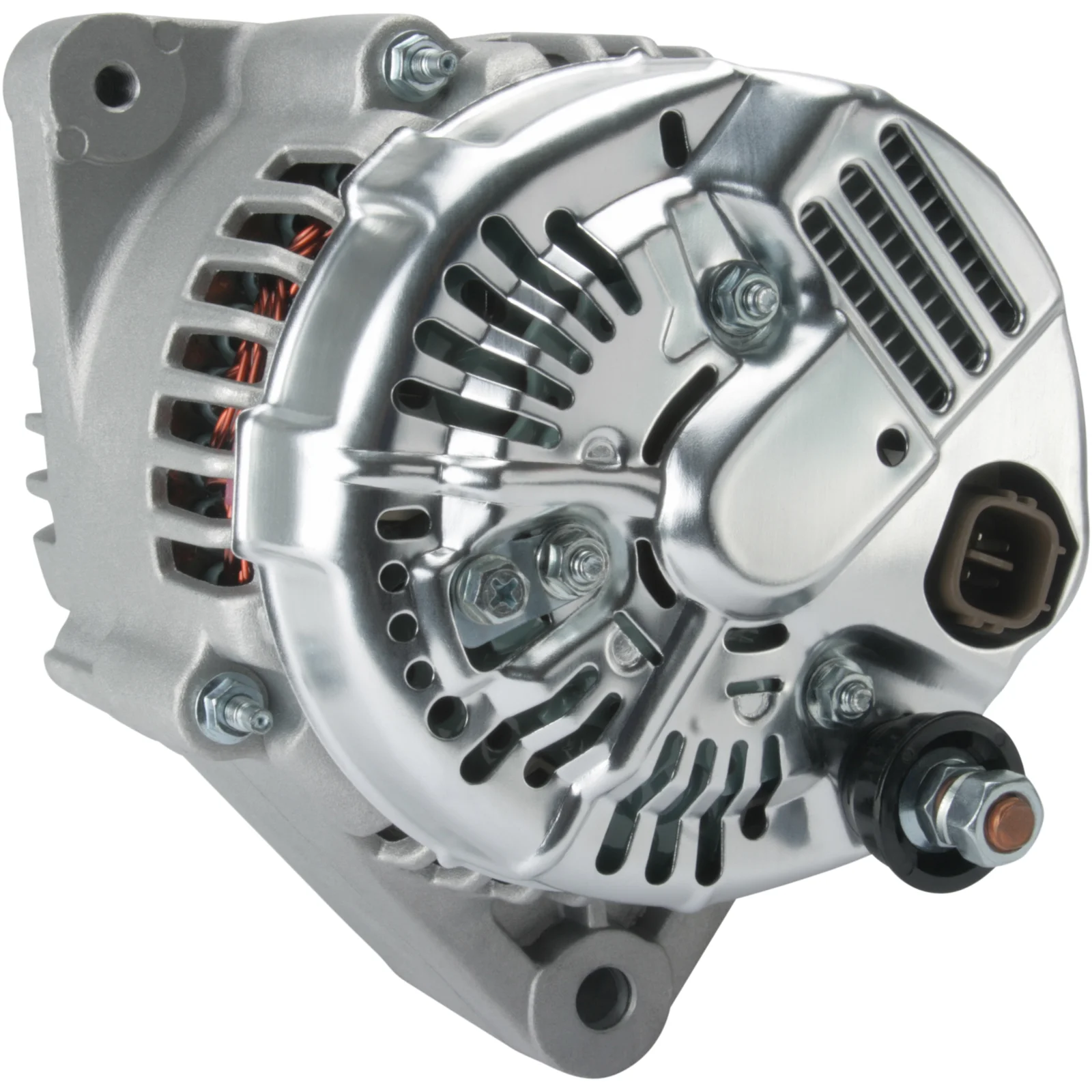

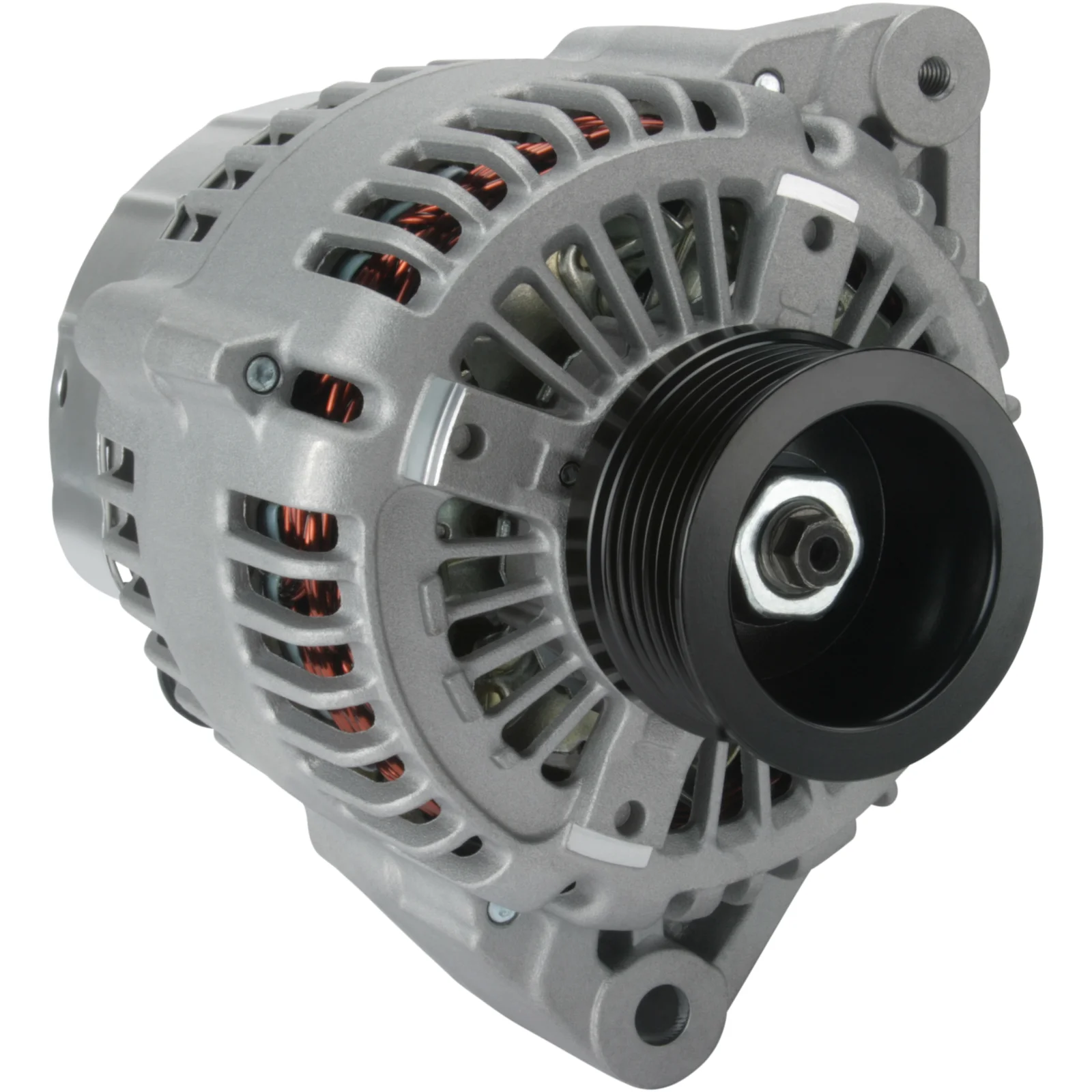

HC-Cargo Alternator
HC-Cargo Alternator
Article no.: F032115788

HC-Cargo Alternator

Technical info:

Voltage: 14, Amp: 120, Rotation: CW, Pulley dia.: 59.00

Description

Voltage: 14
Amp: 120
Pulley dist.: 97.00
Width/holder arm: 58.00
Bracket hole: 10.50
Belt. adj. bracket hole position.: 7
Belt. adj. bracket hole 1: M8
Pulley dia.: 59.00
Grooves/pulley: 6
Radius: 86.00
Radius 2: 86.00
B+: M8
Position/B+ in min.: 25
D+ Size: Plug
Rotation: CW
Plug no.: PL60
Total length mm: 197.00
Pulley: SP
Regulator type: IR
Prod. info: BN

Files

  • OEM
    c2s40072, F032115788, XR822418, 1X4310300BD, 102211-086, 102211-0860, 102211-0861

  • Normalised article numbler
    a6029, alt30134, c2s40072, cal40224, dan1407, dra0433, f032115788, lra03195, xr822418, 1x4310300bd, 13925, 13925r, 112996, 209411, 209411a, 285807, 9090664, 12060982, 102211086, 845503120, 1022110860, 1022110861, 2141671202
  • Description
    Voltage: 14
    Amp: 120
    Pulley dist.: 97.00
    Width/holder arm: 58.00
    Bracket hole: 10.50
    Belt. adj. bracket hole position.: 7
    Belt. adj. bracket hole 1: M8
    Pulley dia.: 59.00
    Grooves/pulley: 6
    Radius: 86.00
    Radius 2: 86.00
    B+: M8
    Position/B+ in min.: 25
    D+ Size: Plug
    Rotation: CW
    Plug no.: PL60
    Total length mm: 197.00
    Pulley: SP
    Regulator type: IR
    Prod. info: BN

    Files

  • Suitable for these vehicles

    • OEM
      c2s40072, F032115788, XR822418, 1X4310300BD, 102211-086, 102211-0860, 102211-0861

    • Normalised article numbler
      a6029, alt30134, c2s40072, cal40224, dan1407, dra0433, f032115788, lra03195, xr822418, 1x4310300bd, 13925, 13925r, 112996, 209411, 209411a, 285807, 9090664, 12060982, 102211086, 845503120, 1022110860, 1022110861, 2141671202
