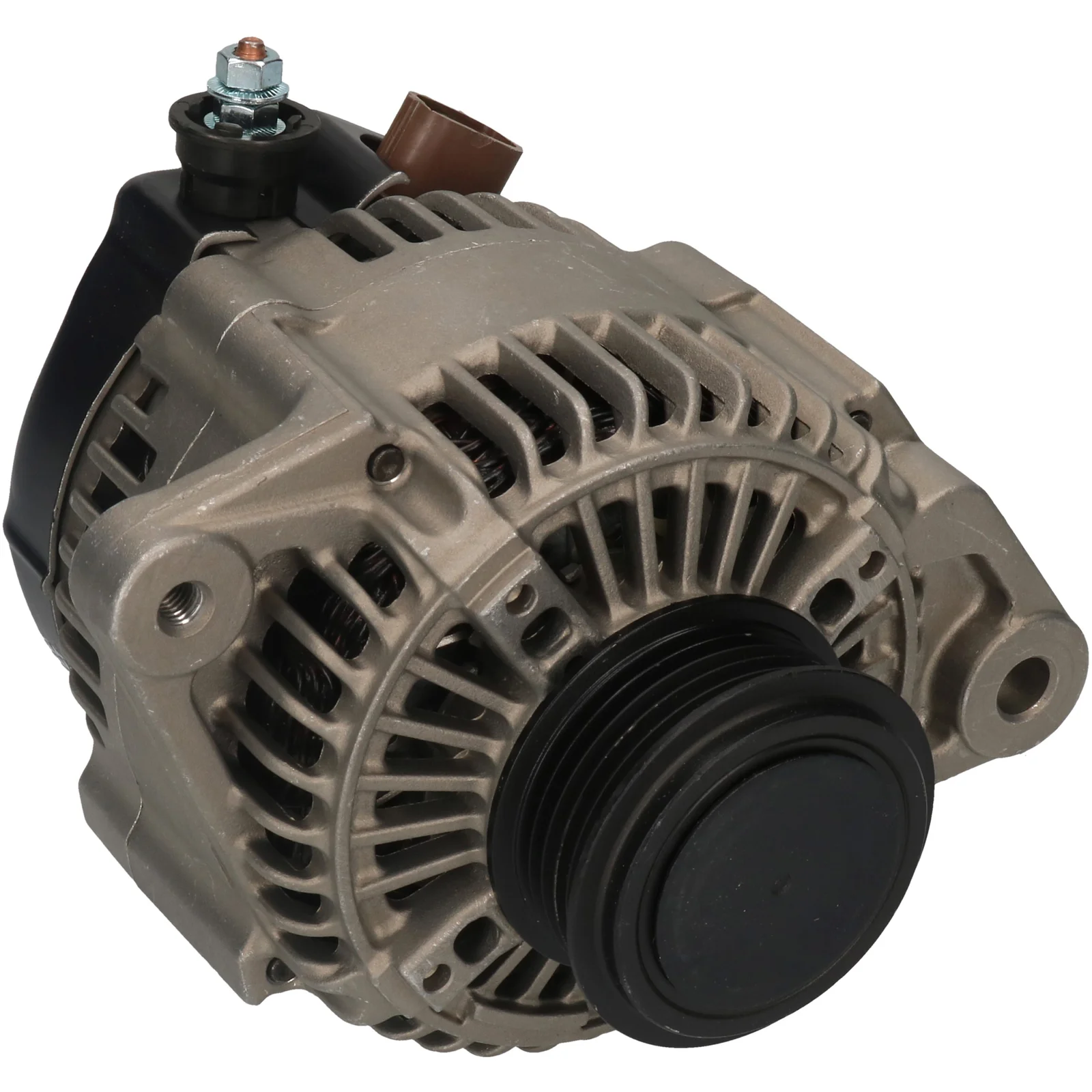

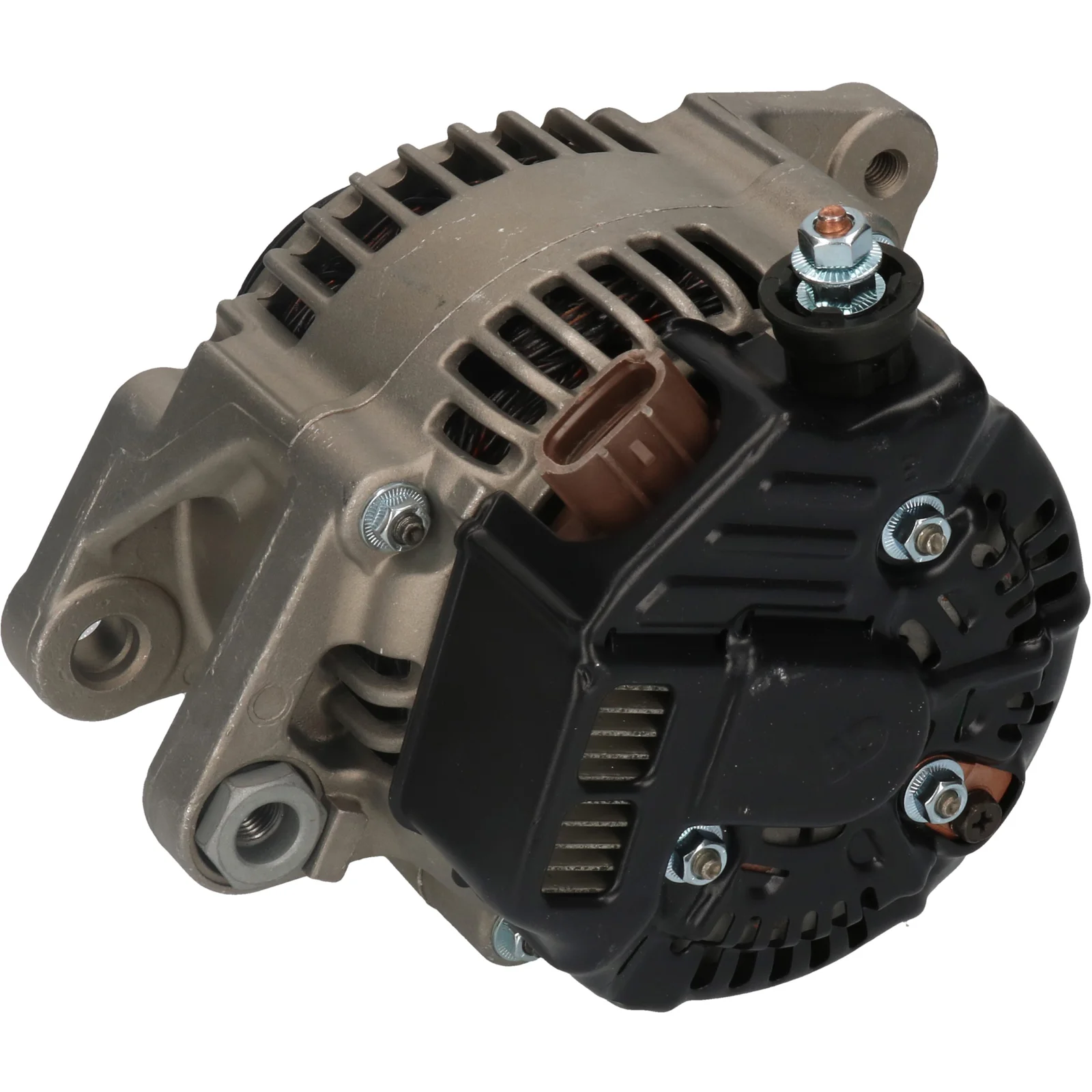

HC-Cargo Alternator
HC-Cargo Alternator
Article no.: F032114206

HC-Cargo Alternator

Technical info:

Voltage: 14, Amp: 90, Rotation: CW, Mount. bracket dist.: 42.00

Description

Voltage: 14
Amp: 90
Pulley dist.: 31.50
Width/holder arm: 18.00
Mount. bracket dist.: 42.00
Bracket hole: 11.00
Bracket hole 2: M10
Belt. adj. brackethole pos.: 3
Belt. adj. bracket hole 1: M8
Pulley dia.: 68.00
Grooves/pulley: 5
Radius: 81.00
Radius 2: 80.50
B+: M6
Position/B+ in min.: 10
D+ Size: Plug
Rotation: CW
Plug no.: PL67
Total length mm: 159.00
Pulley: Alternator/Water pump
Servicing: Toyota

Files

  • OEM
    F032114206, ja1891ir, 27060-33040, 102211-2780

  • Normalised article numbler
    a6015, cal40158, dendan965, dra0121, f032114206, ja1891ir, 8el011711361, 23859n, 23859r, 112610, 210677, 210677a, 284922, 401891ri, 440521, 9212696, 12060840, 0986082890, 1022112780, 2706033040, 063377505010
  • Description
    Voltage: 14
    Amp: 90
    Pulley dist.: 31.50
    Width/holder arm: 18.00
    Mount. bracket dist.: 42.00
    Bracket hole: 11.00
    Bracket hole 2: M10
    Belt. adj. brackethole pos.: 3
    Belt. adj. bracket hole 1: M8
    Pulley dia.: 68.00
    Grooves/pulley: 5
    Radius: 81.00
    Radius 2: 80.50
    B+: M6
    Position/B+ in min.: 10
    D+ Size: Plug
    Rotation: CW
    Plug no.: PL67
    Total length mm: 159.00
    Pulley: Alternator/Water pump
    Servicing: Toyota

    Files

  • Suitable for these vehicles

    • OEM
      F032114206, ja1891ir, 27060-33040, 102211-2780

    • Normalised article numbler
      a6015, cal40158, dendan965, dra0121, f032114206, ja1891ir, 8el011711361, 23859n, 23859r, 112610, 210677, 210677a, 284922, 401891ri, 440521, 9212696, 12060840, 0986082890, 1022112780, 2706033040, 063377505010
