Article no.: F032111267

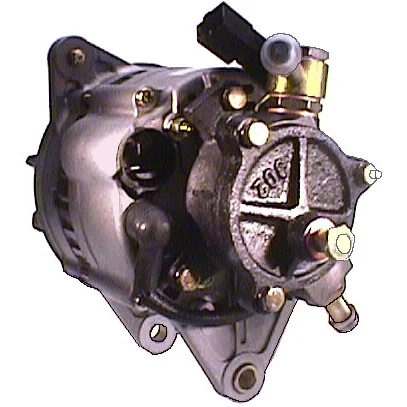

HC-Cargo Alternator

Technical info:

Voltage: 14, Amp: 50, Rotation: CW, Mounting bracket distributor: 81.50

Description

Isuzu Campo Diesel Alternator 50A 12V - 50A, the same alternator with pump = 90-250-0434. For Yourex product order 90-250-0078

Voltage: 14
Amp: 50
Pulley diameter: 49.00
Width/holder arm: 13.00
Mounting bracket diameter: 81.50
Bracket hole: 10.00
Belt adjustment bracket hole position: 5
Belt adjustment bracket hole 1: M8
Pulley diameter: 82.00
Grooves/pulley: 1
Radius: 89.00
B+: 9.30
Rotation: CW
Plug number: PL32
Total length mm: 238.00
Pulley: P
Regulator type: IR
Vacuum pump: Yes
Product info: BN
Servicing: Opel

Files

  • OEM
    F032111267, ja761ir, LR140-426, lr140-427, lr140-433, lr140-433b, lr150-421, lr150-421c, LR150-434, lr150-434, LR150-434B, lr150-434b, LR150-441, lr150-441, LR150-441B, lr150-441c, lr150-441e, lr150-442, lr150-444, lr150-444b, lr150-448, LR150-448B, lr150-449, lr150-449b, lr150-449c, LR150-449E, LR150-453, LR150-453B, LR150-78, lr150-78, lr150-78b, LR150-78C, lr150-78c, lr150-78e, R1030068, R1530063, 8-94122-4884, 8-97073924-0, 8-97073924-1, 111267, 6204169, 9119720, 09119721, 9512268, 9512813, 93175833, 93175976, 94382059, 94419519, 97113770, 97187653, 8941224883, 8941224884, 8943820590, 8943820591, 8943820600, 8944195190, 8944195191, 8970377241, 8970739241, 8971137700, 8971370090, 8971876540, 8971876570, 8971876571

  • Normalised article numbler
    a2004, alt23003, alt32046, altv019, aua901, bao3148, cal20109, dra3376, dra3376n, f032111267, f042305039, f042a05039, ga12421, j5119013, ja761ir, lr140426, lr140427, lr140433, lr140433b, lr150421, lr150421c, lr150434, lr150434b, lr150441, lr150441b, lr150441c, lr150441e, lr150442, lr150444, lr150444b, lr150448, lr150448b, lr150449, lr150449b, lr150449c, lr150449e, lr150453, lr150453b, lr15078, lr15078b, lr15078c, lr15078e, lra01245, lra01514, lra01563, lra02656, lrb00199, qa1027, r1030068, r1530063, 8el012427761, 8el730094001, 0986an0628, 5392, 21262n, 21262r, 22246n, 22246r, 40761ri, 56475, 111267, 119169, 280908, 281743, 281795, 282584, 282681, 437113, 2651913, 6204169, 9051913, 9119720, 09119721, 9512268, 9512813, 12060448, 12060721, 93175833, 93175976, 94382059, 94419519, 97113770, 97187653, 135804070, 234120502, 243103502, 243111502, 243120502, 243123502, 243126502, 0986038491, 0986038493, 0986045073, 8941224883, 8941224884, 8943820590, 8943820591, 8943820600, 8944195190, 8944195191, 8970377241, 8970739240, 8970739241, 8971137700, 8971370090, 8971876540, 8971876570, 8971876571, 943346160010
  • Description
    Isuzu Campo Diesel Alternator 50A 12V - 50A, the same alternator with pump = 90-250-0434. For Yourex product order 90-250-0078

    Voltage: 14
    Amp: 50
    Pulley diameter: 49.00
    Width/holder arm: 13.00
    Mounting bracket diameter: 81.50
    Bracket hole: 10.00
    Belt adjustment bracket hole position: 5
    Belt adjustment bracket hole 1: M8
    Pulley diameter: 82.00
    Grooves/pulley: 1
    Radius: 89.00
    B+: 9.30
    Rotation: CW
    Plug number: PL32
    Total length mm: 238.00
    Pulley: P
    Regulator type: IR
    Vacuum pump: Yes
    Product info: BN
    Servicing: Opel

    Files

  • Suitable for these vehicles

    • OEM
      F032111267, ja761ir, LR140-426, lr140-427, lr140-433, lr140-433b, lr150-421, lr150-421c, LR150-434, lr150-434, LR150-434B, lr150-434b, LR150-441, lr150-441, LR150-441B, lr150-441c, lr150-441e, lr150-442, lr150-444, lr150-444b, lr150-448, LR150-448B, lr150-449, lr150-449b, lr150-449c, LR150-449E, LR150-453, LR150-453B, LR150-78, lr150-78, lr150-78b, LR150-78C, lr150-78c, lr150-78e, R1030068, R1530063, 8-94122-4884, 8-97073924-0, 8-97073924-1, 111267, 6204169, 9119720, 09119721, 9512268, 9512813, 93175833, 93175976, 94382059, 94419519, 97113770, 97187653, 8941224883, 8941224884, 8943820590, 8943820591, 8943820600, 8944195190, 8944195191, 8970377241, 8970739241, 8971137700, 8971370090, 8971876540, 8971876570, 8971876571

    • Normalised article numbler
      a2004, alt23003, alt32046, altv019, aua901, bao3148, cal20109, dra3376, dra3376n, f032111267, f042305039, f042a05039, ga12421, j5119013, ja761ir, lr140426, lr140427, lr140433, lr140433b, lr150421, lr150421c, lr150434, lr150434b, lr150441, lr150441b, lr150441c, lr150441e, lr150442, lr150444, lr150444b, lr150448, lr150448b, lr150449, lr150449b, lr150449c, lr150449e, lr150453, lr150453b, lr15078, lr15078b, lr15078c, lr15078e, lra01245, lra01514, lra01563, lra02656, lrb00199, qa1027, r1030068, r1530063, 8el012427761, 8el730094001, 0986an0628, 5392, 21262n, 21262r, 22246n, 22246r, 40761ri, 56475, 111267, 119169, 280908, 281743, 281795, 282584, 282681, 437113, 2651913, 6204169, 9051913, 9119720, 09119721, 9512268, 9512813, 12060448, 12060721, 93175833, 93175976, 94382059, 94419519, 97113770, 97187653, 135804070, 234120502, 243103502, 243111502, 243120502, 243123502, 243126502, 0986038491, 0986038493, 0986045073, 8941224883, 8941224884, 8943820590, 8943820591, 8943820600, 8944195190, 8944195191, 8970377241, 8970739240, 8970739241, 8971137700, 8971370090, 8971876540, 8971876570, 8971876571, 943346160010
