HC-Cargo Alternator
HC-Cargo Alternator
Article no.: F032115478

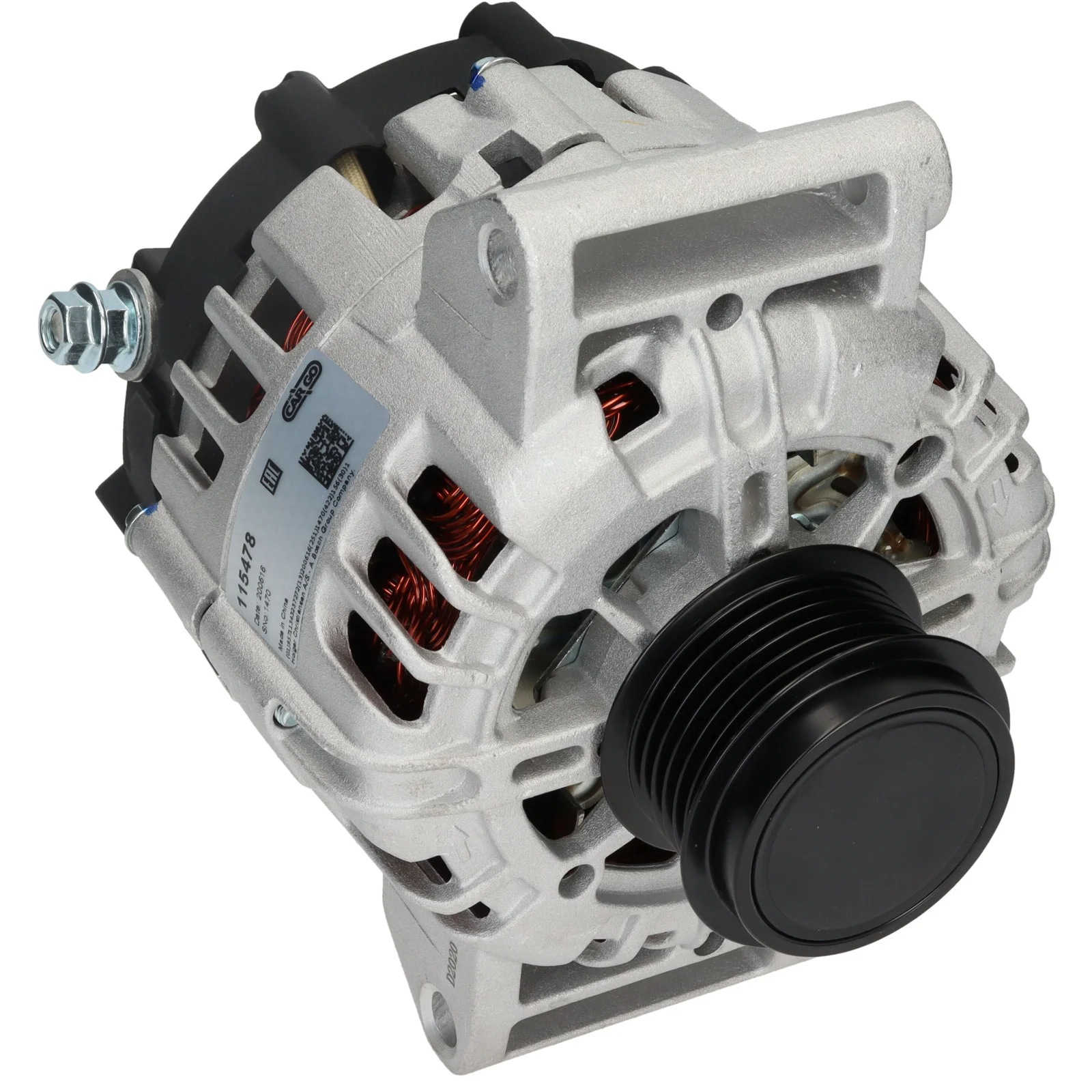

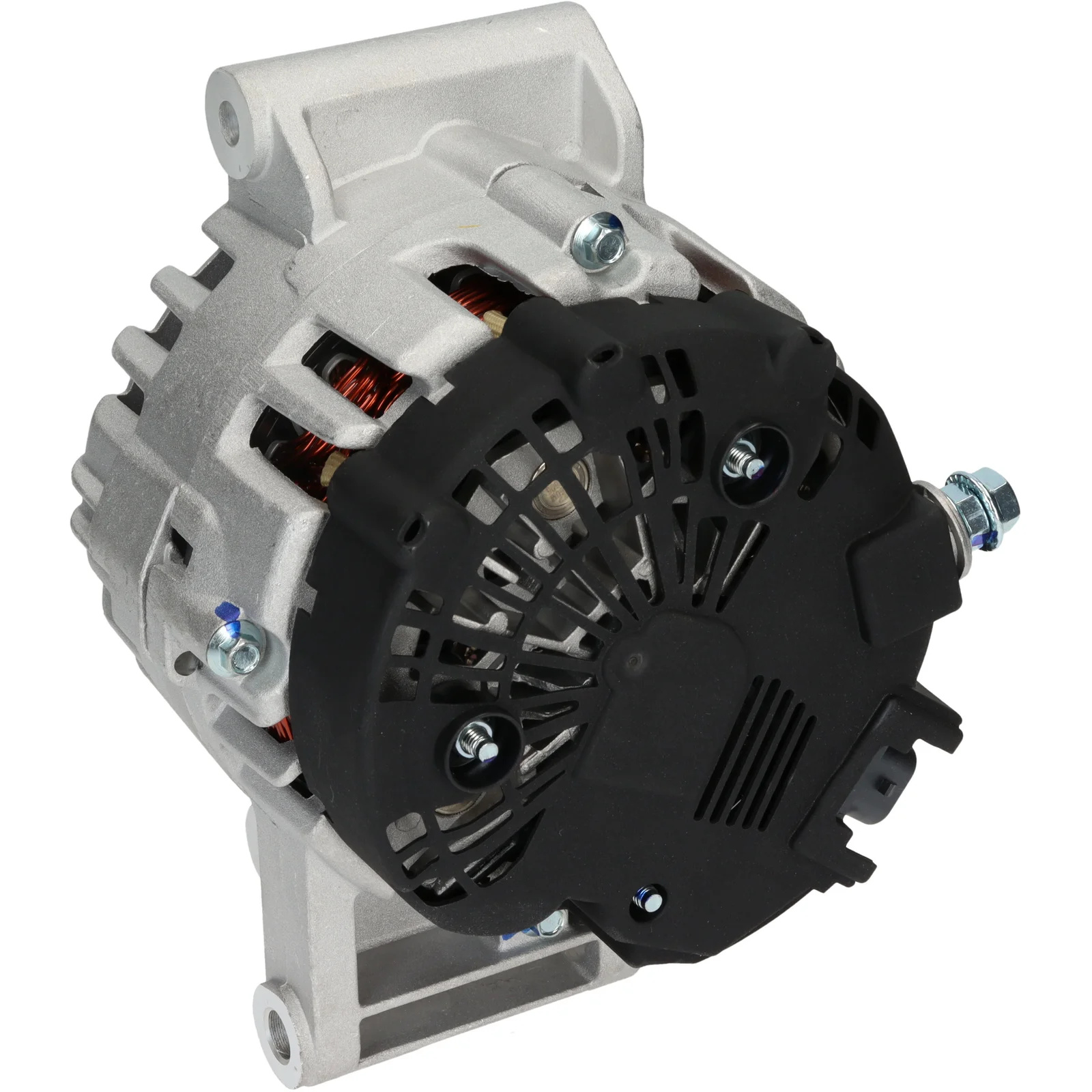

HC-Cargo Alternator

Technical info:

Voltage: 14, Amperes: 120, Rotation: CW, Mounting bracket distance: 52.00

Description

Voltage: 14
Amp: 120
Pulley distance: 32.00
Width/holder arm: 79.00
Mounting bracket distance: 52.00
Bracket hole: 8.50
Belt adjustment bracket hole 1: 9.00
Pulley diameter: 55.00
Grooves/pulley: 6
Radius: 78.00
Radius 2: 81.50
B+: M8
Position/B+ in min.: 22
Rotation: CW
Plug number: PL180
Total length mm: 175.00
Terminal type: L-F
Communication: PWM
Pulley: SP/FW
Fan: IF
Remarks: This Alternator has a PWM terminal on the Voltage regulator. It is recommended that the OEM number is used to check suitability before ordering.

Files

  • OEM
    F032115478, TG12C066, TG12C176, 1202330, 1204650, 2605325a, 13500331, 13588324

  • Normalised article numbler
    a3329, a3329valeo, cal15020, dra1042, f032115478, f042205147, tg12c066, tg12c176, 11826n, 11826r, 287538, 440617, 849116, 849163, 1202330, 1204650, 2605325a, 12090602, 13500331, 13588324, 135592120, 2283041202
  • Description
    Voltage: 14
    Amp: 120
    Pulley distance: 32.00
    Width/holder arm: 79.00
    Mounting bracket distance: 52.00
    Bracket hole: 8.50
    Belt adjustment bracket hole 1: 9.00
    Pulley diameter: 55.00
    Grooves/pulley: 6
    Radius: 78.00
    Radius 2: 81.50
    B+: M8
    Position/B+ in min.: 22
    Rotation: CW
    Plug number: PL180
    Total length mm: 175.00
    Terminal type: L-F
    Communication: PWM
    Pulley: SP/FW
    Fan: IF
    Remarks: This Alternator has a PWM terminal on the Voltage regulator. It is recommended that the OEM number is used to check suitability before ordering.

    Files

  • Suitable for these vehicles

    • OEM
      F032115478, TG12C066, TG12C176, 1202330, 1204650, 2605325a, 13500331, 13588324

    • Normalised article numbler
      a3329, a3329valeo, cal15020, dra1042, f032115478, f042205147, tg12c066, tg12c176, 11826n, 11826r, 287538, 440617, 849116, 849163, 1202330, 1204650, 2605325a, 12090602, 13500331, 13588324, 135592120, 2283041202
