Article no.: F032111831

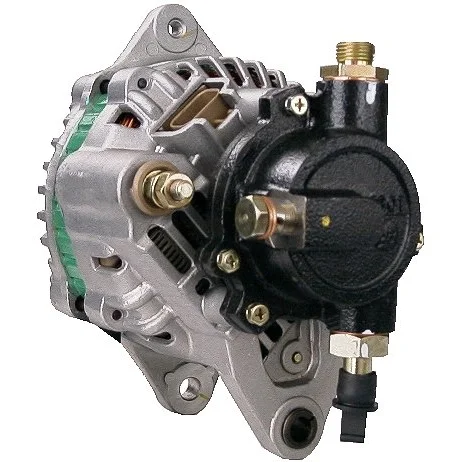

HC-Cargo Alternator

Technical info:

Voltage: 14, Amperage: 100, Rotation: CW, Mounting bracket distributor: 77.00

Description

Voltage: 14
Ampere: 100
Terminal: W
Pulley diameter: 42.00
Width/holder arm: 13.00
Mounting bracket distance: 77.00
Bracket hole: 10.50
Belt adjustment bracket hole position: 60
Belt adjustment bracket hole 1: M8
Pulley diameter: 80.50
Grooves/pulley: 1
Radius: 88.50
Radius 2: 84.00
B+: M8
Position/B+ in min.: 55
Rotation: CW
Plug number: PL50
W plug type: Plug
Total length mm: 213.00
Pulley: P
Regulator type: IR
Vacuum pump: Yes
Product information: BN
Servicing: Opel

Files

  • OEM
    F032111831, ja1370ir, lr1100-501, lr1100-501b, R1030094, 6204043, 6204047, 9512039, 90371768, 90371770, 97150201, 8971502010, 8971502011

  • Normalised article numbler
    a2016, alt32043, alt32088, altv002, cal20107, dra3789, dra3789n, f032111831, f042305029, f042a05029, ja1370ir, lr1100501, lr1100501b, lrb00299, mg727, r1030094, 8el011711111, 8el737570001, 6029, 21303n, 119661, 210103, 210103a, 282659, 401370ri, 437180, 6204043, 6204047, 9512039, 12060702, 32043941, 90371768, 90371770, 97150201, 0986043941, 0986043943, 2281311002, 8971502010, 8971502011, 944390900170
  • Description
    Voltage: 14
    Ampere: 100
    Terminal: W
    Pulley diameter: 42.00
    Width/holder arm: 13.00
    Mounting bracket distance: 77.00
    Bracket hole: 10.50
    Belt adjustment bracket hole position: 60
    Belt adjustment bracket hole 1: M8
    Pulley diameter: 80.50
    Grooves/pulley: 1
    Radius: 88.50
    Radius 2: 84.00
    B+: M8
    Position/B+ in min.: 55
    Rotation: CW
    Plug number: PL50
    W plug type: Plug
    Total length mm: 213.00
    Pulley: P
    Regulator type: IR
    Vacuum pump: Yes
    Product information: BN
    Servicing: Opel

    Files

  • Suitable for these vehicles

    • OEM
      F032111831, ja1370ir, lr1100-501, lr1100-501b, R1030094, 6204043, 6204047, 9512039, 90371768, 90371770, 97150201, 8971502010, 8971502011

    • Normalised article numbler
      a2016, alt32043, alt32088, altv002, cal20107, dra3789, dra3789n, f032111831, f042305029, f042a05029, ja1370ir, lr1100501, lr1100501b, lrb00299, mg727, r1030094, 8el011711111, 8el737570001, 6029, 21303n, 119661, 210103, 210103a, 282659, 401370ri, 437180, 6204043, 6204047, 9512039, 12060702, 32043941, 90371768, 90371770, 97150201, 0986043941, 0986043943, 2281311002, 8971502010, 8971502011, 944390900170
