HC-Cargo Alternator
HC-Cargo Alternator
Article no.: F032110385

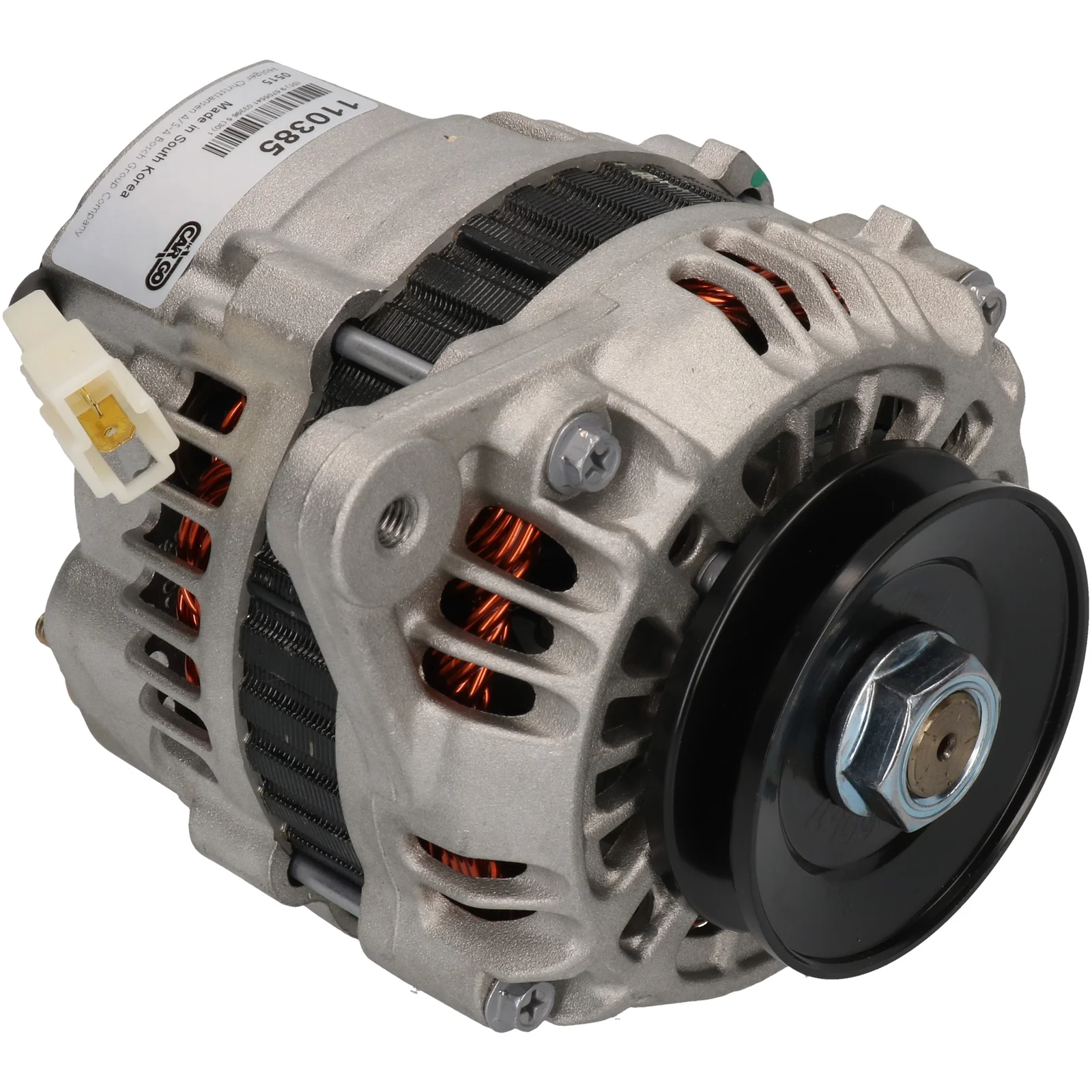

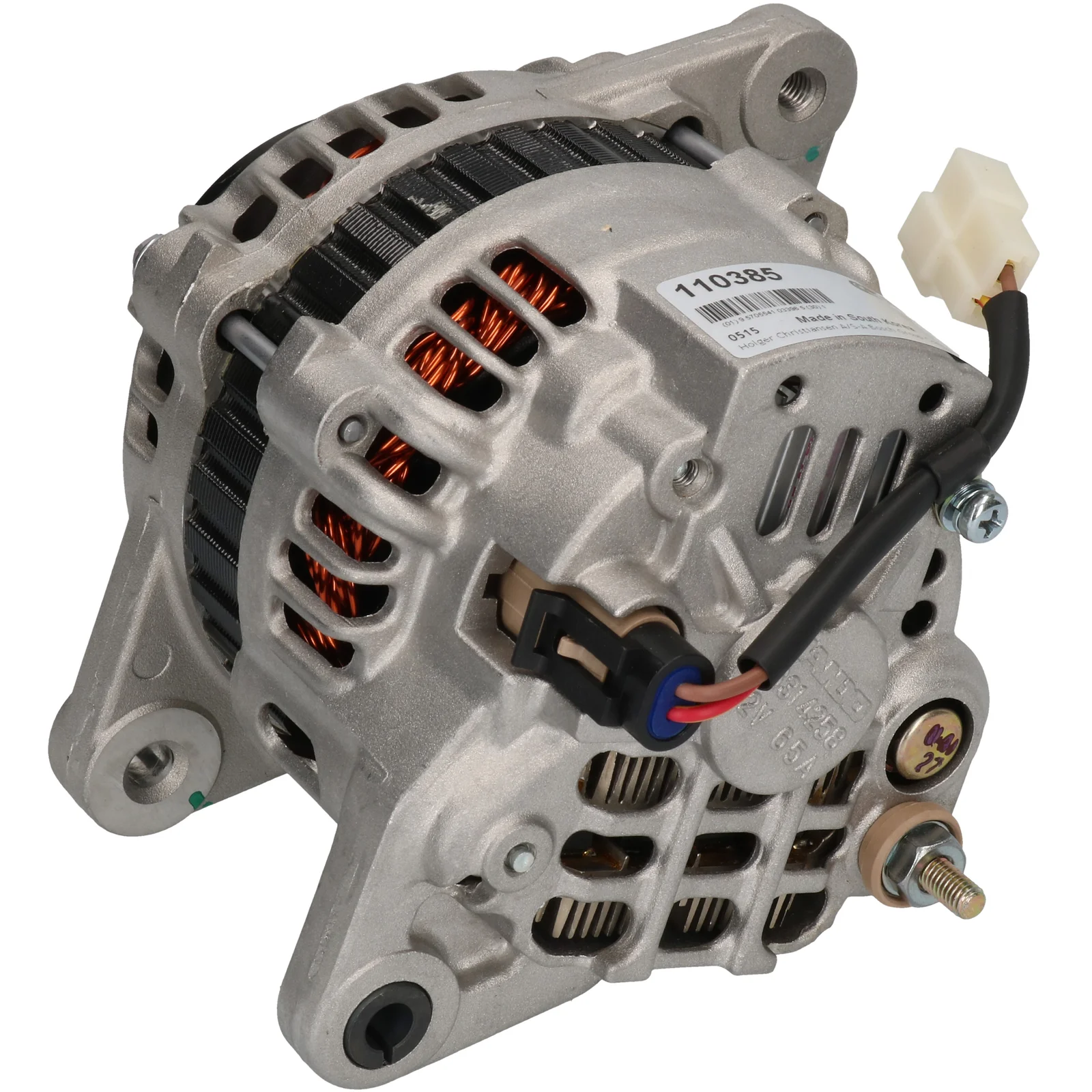

HC-Cargo Alternator

Technical info:

Voltage: 14, Amp: 40, Rotation: CW, Mounting bracket distributor: 66.00

Description

Subaru/Suzuki Alternator 12V-40A 12V - 40A, 1V, (IGN, L) For Yourrex product order 90-528-0171

Voltage: 14
Amp: 40
Pulley dist.: 41.00
Width/holder arm: 15.00
Mount. bracket dist.: 66.00
Bracket hole: 8.50
Belt. adjust. bracket hole position.: 60
Belt. adjust. bracket hole 1: M8
Pulley dia.: 73.00
Grooves/pulley: 1
Radius: 78.00
Radius 2: 78.00
B+: M6
Position/B+ in min.: 2
Rotation: CW
Plug no.: PL10
Total length mm: 144.00
Pulley: P
Voltage regulator type: IR
Product info: BN
Servicing: Suzuki

Files

  • OEM
    A001T33771, A1T-33771, a1t33771, E9SFBA, F032110385, ja171ir, LR140-128, lr140-128, LRA 536, LRA 950, 3C2411000AA, 3C2Z11002AA, 31400-80010, 31400-80011, 42990-5600, 110385, 1516881R

  • Normalised article numbler
    a001t33771, a1t33771, a2075, a5028, a5250, alt31041, alth004, asa395, aza412, cal20110, dra3217, dra6501, e9sfba, f032110385, f042a0h004, fra655, j5118005, ja171ir, lr140128, lra00536, lra00950, lra02637, lra536, lra950, qa1405, va237, 3c2411000aa, 3c2z11002aa, 8el726316001, 2539, 3268n, 20536r, 40171ri, 56057, 110385, 118343, 210107, 210107a, 281529, 281675, 437162, 1516881r, 3651701, 3751805, 9051701, 12060310, 12060460, 233101402, 245101402, 429905600, 0986036501, 0986036503, 3140080010, 3140080011, 943346067010, 944390518050
  • Description
    Subaru/Suzuki Alternator 12V-40A 12V - 40A, 1V, (IGN, L) For Yourrex product order 90-528-0171

    Voltage: 14
    Amp: 40
    Pulley dist.: 41.00
    Width/holder arm: 15.00
    Mount. bracket dist.: 66.00
    Bracket hole: 8.50
    Belt. adjust. bracket hole position.: 60
    Belt. adjust. bracket hole 1: M8
    Pulley dia.: 73.00
    Grooves/pulley: 1
    Radius: 78.00
    Radius 2: 78.00
    B+: M6
    Position/B+ in min.: 2
    Rotation: CW
    Plug no.: PL10
    Total length mm: 144.00
    Pulley: P
    Voltage regulator type: IR
    Product info: BN
    Servicing: Suzuki

    Files

  • Suitable for these vehicles

    • OEM
      A001T33771, A1T-33771, a1t33771, E9SFBA, F032110385, ja171ir, LR140-128, lr140-128, LRA 536, LRA 950, 3C2411000AA, 3C2Z11002AA, 31400-80010, 31400-80011, 42990-5600, 110385, 1516881R

    • Normalised article numbler
      a001t33771, a1t33771, a2075, a5028, a5250, alt31041, alth004, asa395, aza412, cal20110, dra3217, dra6501, e9sfba, f032110385, f042a0h004, fra655, j5118005, ja171ir, lr140128, lra00536, lra00950, lra02637, lra536, lra950, qa1405, va237, 3c2411000aa, 3c2z11002aa, 8el726316001, 2539, 3268n, 20536r, 40171ri, 56057, 110385, 118343, 210107, 210107a, 281529, 281675, 437162, 1516881r, 3651701, 3751805, 9051701, 12060310, 12060460, 233101402, 245101402, 429905600, 0986036501, 0986036503, 3140080010, 3140080011, 943346067010, 944390518050
