HC-Cargo Alternator
HC-Cargo Alternator
Article no.: F032116488

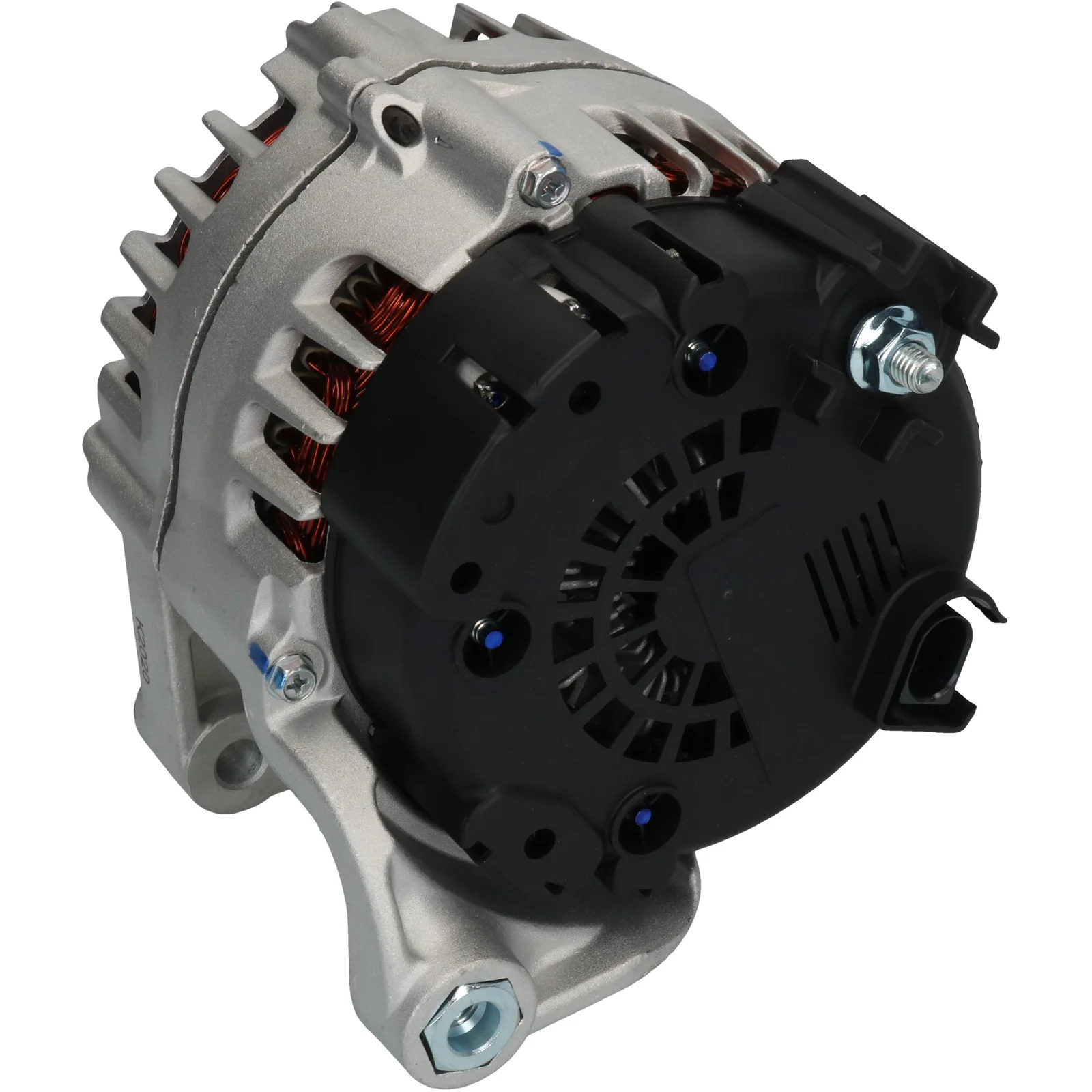

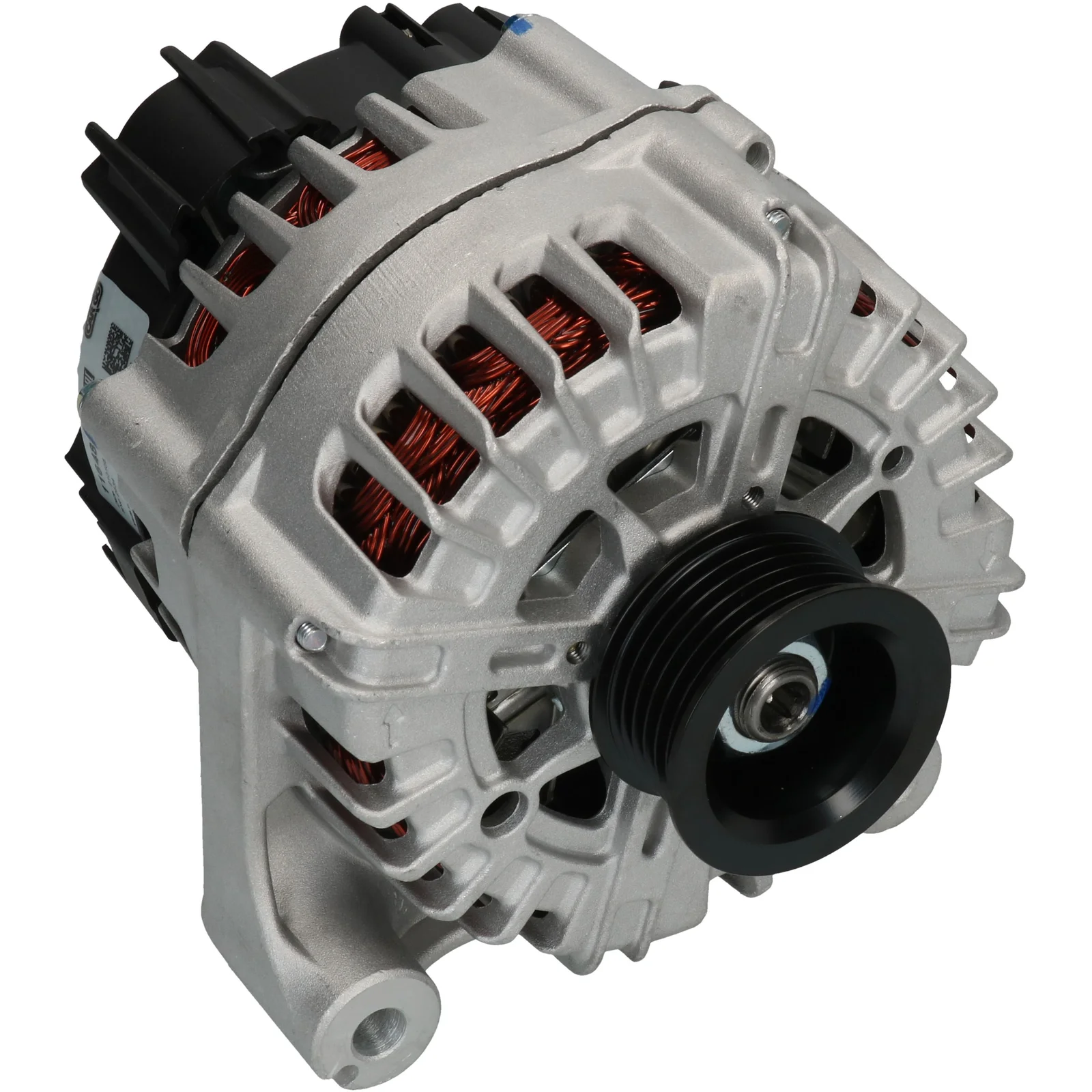

HC-Cargo Alternator

Technical info:

Voltage: 14, Amps: 180, Rotation: CW, Mounting bracket distributor: 75.40

Description

Voltage: 14
Amp: 180
Pulley designer: 60.00
Width/holder arm: 28.00
Mounting bracket designer: 75.40
Bracket hole: 11.00
Belt adjustment bracket hole position: 44
Belt adjustment bracket hole 1: M10
Pulley diameter: 52.00
Grooves/pulley: 6
Radius: 93.00
Radius 2: 93.00
B+: M8
Position/B+ in minutes: 59
Rotation: CW
Plug no.: PL125
Total length mm: 180.50
Terminal type: COM
ID Code: 53
Communication: BSS
Pulley: SP
Fan: IF
Regulator type: IR
Remarks: This Alternator has a COM terminal on the voltage regulator. It is recommended that the OEM number is used to check suitability before ordering.

Files

  • OEM
    F032116488, FG18S014, FGN18S014, 2543424, 2543424A, 2543424C, 12317837981, 12317838656

  • Normalised article numbler
    a3438s, cal15484, dra0758, f032116488, fg18s014, fgn18s014, lra03300, 11450r, 209171, 209171a, 285912, 439675, 440252, 554216ri, 2543424, 2543424a, 2543424c, 9090715, 12090456, 215541180, 2151901802, 12317837981, 12317838656
  • Description
    Voltage: 14
    Amp: 180
    Pulley designer: 60.00
    Width/holder arm: 28.00
    Mounting bracket designer: 75.40
    Bracket hole: 11.00
    Belt adjustment bracket hole position: 44
    Belt adjustment bracket hole 1: M10
    Pulley diameter: 52.00
    Grooves/pulley: 6
    Radius: 93.00
    Radius 2: 93.00
    B+: M8
    Position/B+ in minutes: 59
    Rotation: CW
    Plug no.: PL125
    Total length mm: 180.50
    Terminal type: COM
    ID Code: 53
    Communication: BSS
    Pulley: SP
    Fan: IF
    Regulator type: IR
    Remarks: This Alternator has a COM terminal on the voltage regulator. It is recommended that the OEM number is used to check suitability before ordering.

    Files

  • Suitable for these vehicles

    • OEM
      F032116488, FG18S014, FGN18S014, 2543424, 2543424A, 2543424C, 12317837981, 12317838656

    • Normalised article numbler
      a3438s, cal15484, dra0758, f032116488, fg18s014, fgn18s014, lra03300, 11450r, 209171, 209171a, 285912, 439675, 440252, 554216ri, 2543424, 2543424a, 2543424c, 9090715, 12090456, 215541180, 2151901802, 12317837981, 12317838656
