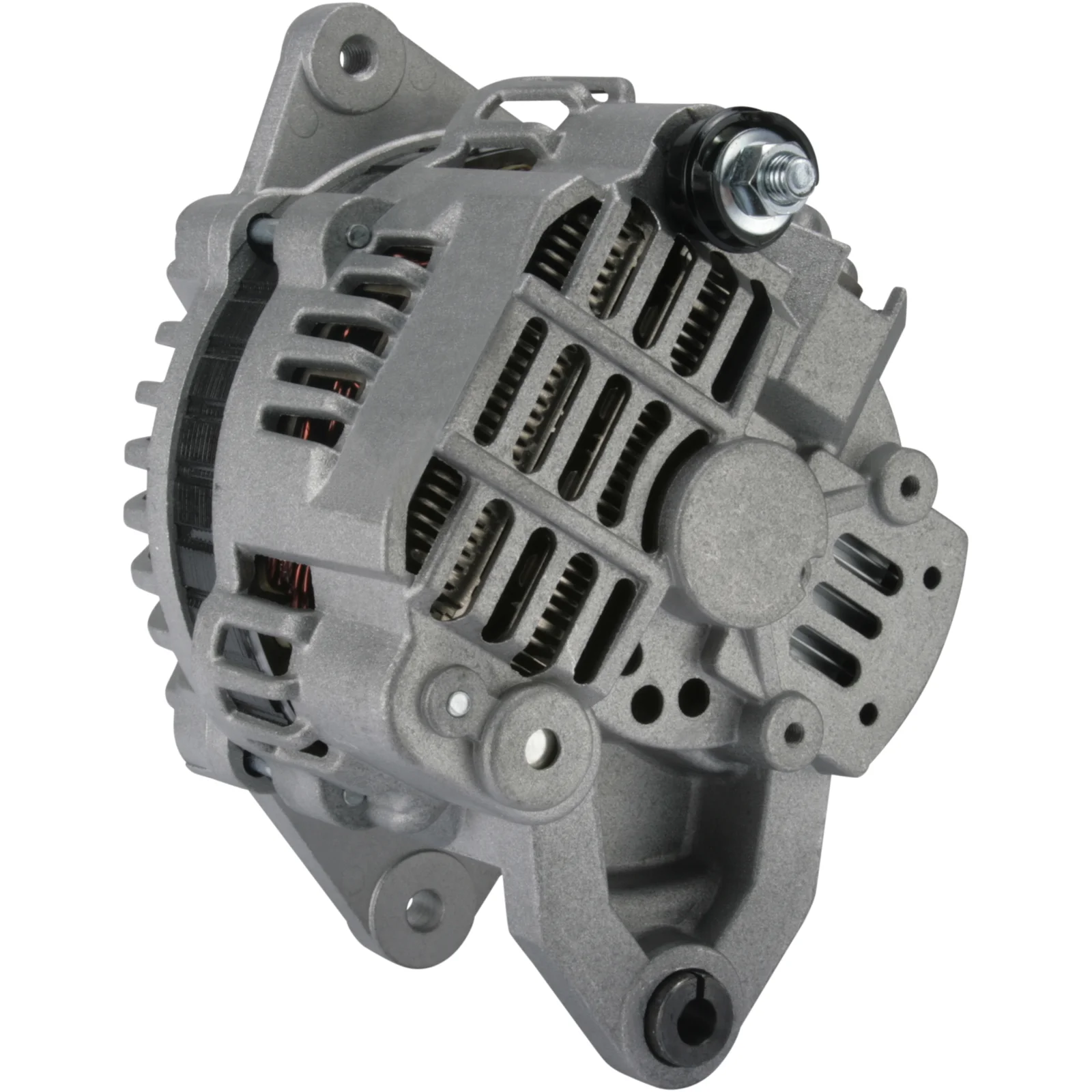

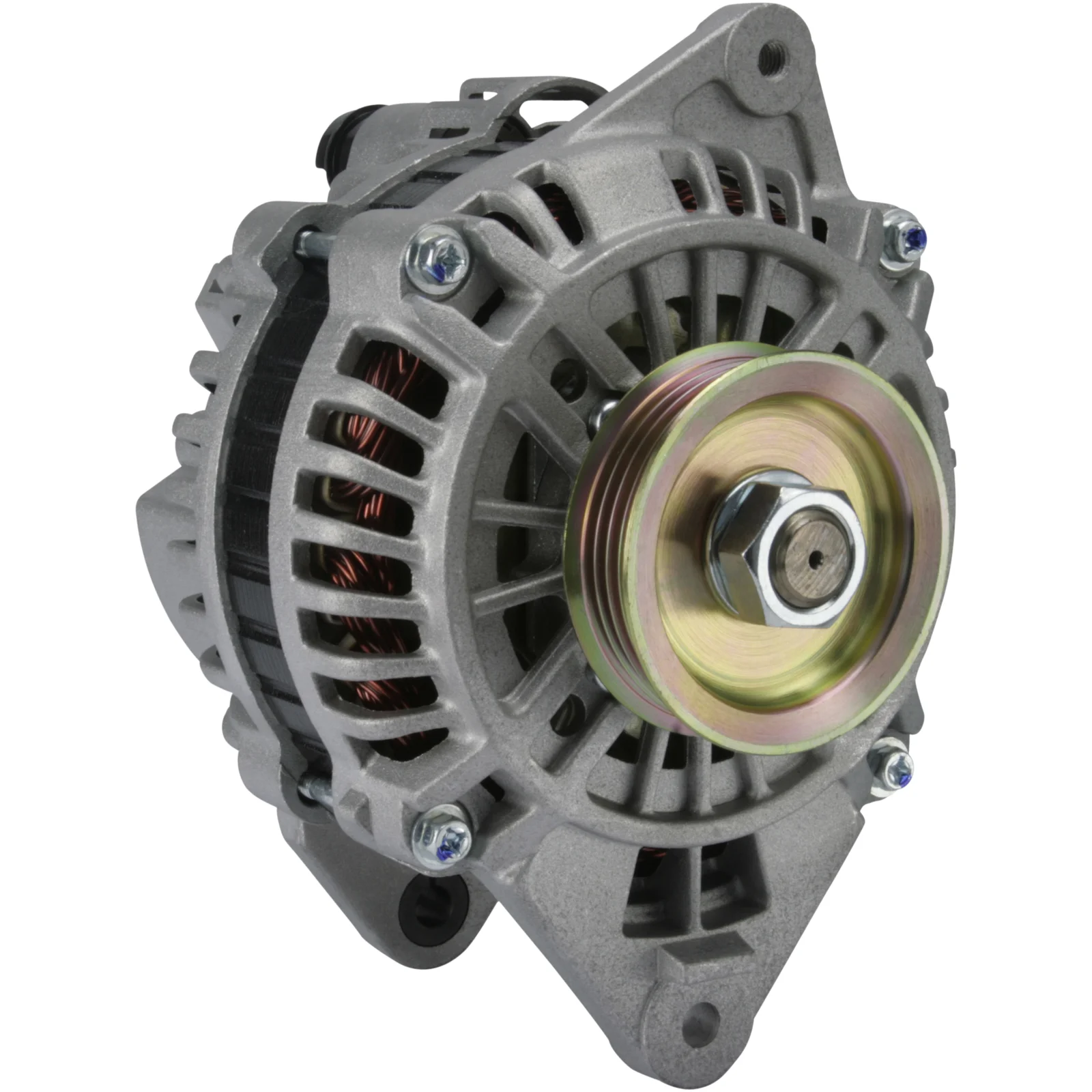

HC-Cargo Alternator
HC-Cargo Alternator
Article no.: F032114432

HC-Cargo Alternator

Technical info:

Voltage: 14, Amper: 100, Rotation: CW, Mounting bracket distributor: 79.60

Description

Voltage: 14
Amp: 100
Pulley dist.: 23.20
Width/holder arm: 13.00
Mount. bracket dist.: 79.60
Bracket hole: 8.30
Belt. adj. brackethole pos.: 5
Belt. adj. bracket hole 1: M8
Pulley dia.: 64.00
Grooves/pulley: 4
Radius: 90.00
Radius 2: 88.00
B+ Length mm: 14.00
B+: M8
Position/B+ in min.: 60
D+ Size: Plug
Rotation: CW
Plug no.: PL07
Total length mm: 170.00
Pulley: SP
Regulator type: IR
Prod. info: BN

Files

  • OEM
    A003TA0491, A003TA2391, a3ta0491, a3ta2391, a3ta2391a, F032114432, md313384, MD318460, MD354804, S113701110FA

  • Normalised article numbler
    a003ta0491, a003ta2391, a3ta0491, a3ta2391, a3ta2391a, a5200, alt3515, cal35266, dra0586, f032114432, f042303072, f042a03072, md313384, md318460, md354804, s113701110fa, 12647n, 12647r, 209335, 209335a, 282947, 553389ri, 12060766, 155542090
  • Description
    Voltage: 14
    Amp: 100
    Pulley dist.: 23.20
    Width/holder arm: 13.00
    Mount. bracket dist.: 79.60
    Bracket hole: 8.30
    Belt. adj. brackethole pos.: 5
    Belt. adj. bracket hole 1: M8
    Pulley dia.: 64.00
    Grooves/pulley: 4
    Radius: 90.00
    Radius 2: 88.00
    B+ Length mm: 14.00
    B+: M8
    Position/B+ in min.: 60
    D+ Size: Plug
    Rotation: CW
    Plug no.: PL07
    Total length mm: 170.00
    Pulley: SP
    Regulator type: IR
    Prod. info: BN

    Files

  • Suitable for these vehicles

    • OEM
      A003TA0491, A003TA2391, a3ta0491, a3ta2391, a3ta2391a, F032114432, md313384, MD318460, MD354804, S113701110FA

    • Normalised article numbler
      a003ta0491, a003ta2391, a3ta0491, a3ta2391, a3ta2391a, a5200, alt3515, cal35266, dra0586, f032114432, f042303072, f042a03072, md313384, md318460, md354804, s113701110fa, 12647n, 12647r, 209335, 209335a, 282947, 553389ri, 12060766, 155542090
