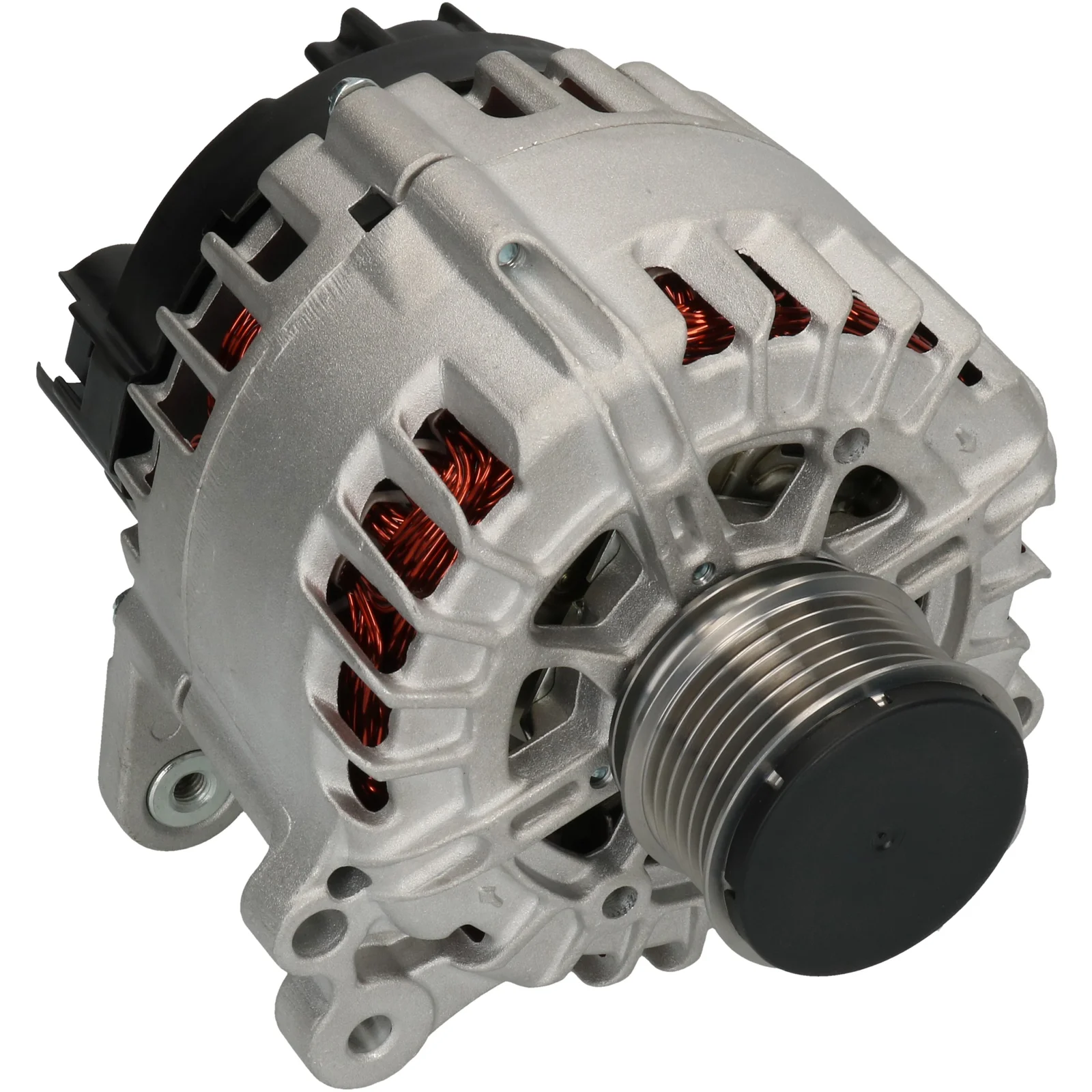

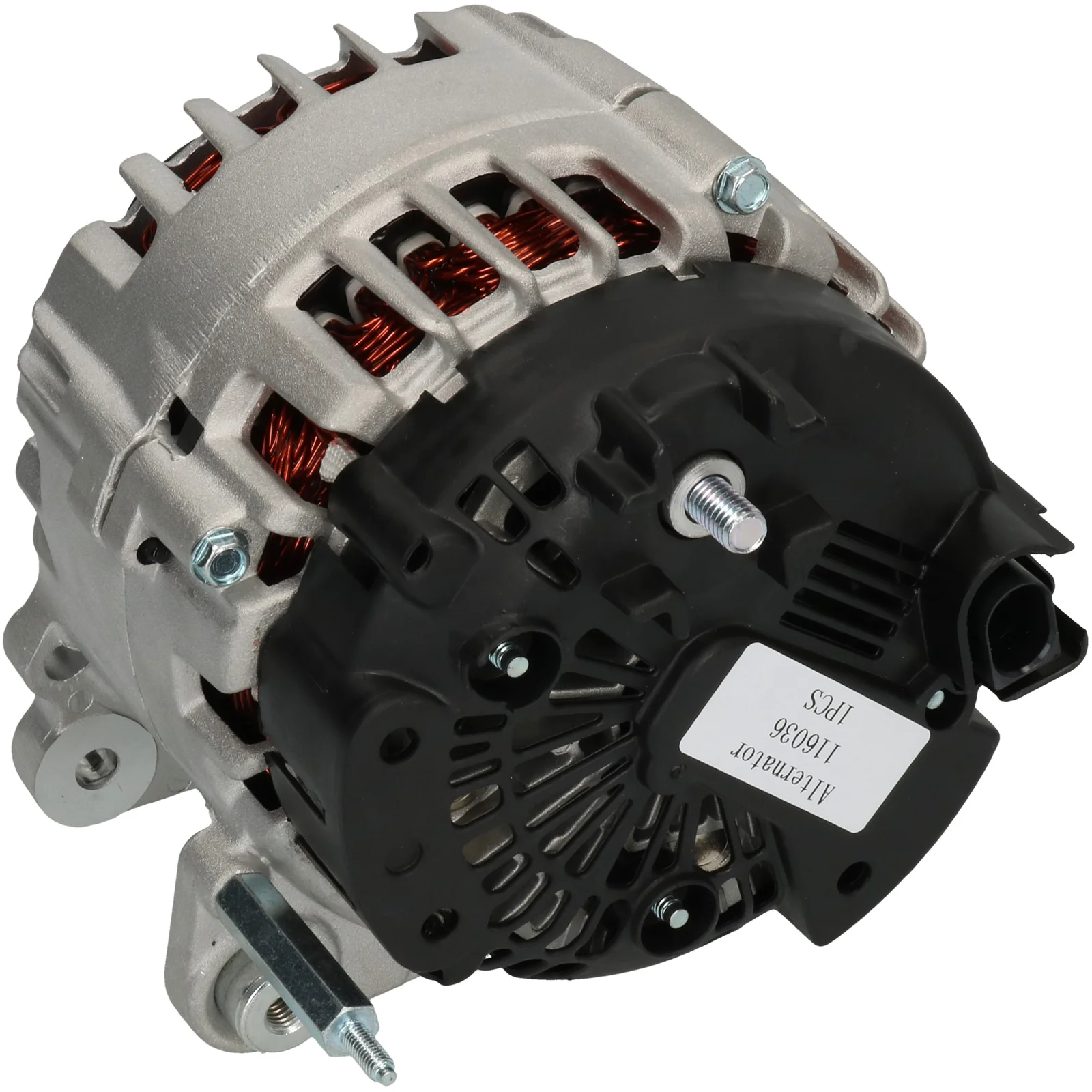

HC-Cargo Alternator
HC-Cargo Alternator
Article no.: F032116036

HC-Cargo Alternator

Technical info:

Voltage: 14, Amperage: 140, Rotation: CW, Mounting bracket distributor: 61.00

Description

Voltage: 14
Amp: 140
Pulley dist.: 39.50
Width/holder arm: 13.50
Mount. bracket dist.: 61.00
Bracket hole: 8.50
Belt. adj. brackethole pos.: 45
Belt. adj. bracket hole 1: 8.50
Pulley dia.: 56.00
Grooves/pulley: 6
Radius: 90.00
Radius 2: 90.00
Rotation: CW
Plug no.: PL125
Total length mm: 196.00
Terminal type: COM
ID Code: 25
Communication: LIN
Alternator: SP/FW
Regulator type: IR
Remarks: This Alternator has a COM terminal on the regulator. It is recommended that the OEM number is used to check suitability before ordering.

Files

  • OEM
    A0631PR, A3150, A3150(VALEO), A3273, A3273(VALEO), A3273PR, CAL15569, DRA1416, F032116036, LRA03634, TG14C057, 03L903023, 03L903023A, 03L903023AX, 03L903023X, 03L903024M, 03L903024MX, 03L906023, 3L903023, 3L903023A, 3L903023AX, 3L903023X, 3L903024M, 04B903023B, 04B903023BX, 04B903023D, 04B903023DX, 04B903024, 04B903024X, 4B903023B, 8EL011713-471, 28-6774, 211.394.1402, 305.915.140, 11703N, 200232, 209288, 209288A, 439852, 440592, 553961RI, 2617854A, 12090505

  • Normalised article numbler
    a0631pr, a3150, a3150valeo, a3273, a3273pr, a3273valeo, cal15569, dra1416, f032116036, lra03634, tg14c057, 03l903023, 03l903023a, 03l903023ax, 03l903023x, 03l903024m, 03l903024mx, 03l906023, 3l903023, 3l903023a, 3l903023ax, 3l903023x, 3l903024m, 04b903023b, 04b903023bx, 04b903023d, 04b903023dx, 04b903024, 04b903024x, 4b903023b, 8el011713471, 11703n, 200232, 209288, 209288a, 286774, 439852, 440592, 553961ri, 2617854a, 12090505, 305915140, 2113941402
  • Description
    Voltage: 14
    Amp: 140
    Pulley dist.: 39.50
    Width/holder arm: 13.50
    Mount. bracket dist.: 61.00
    Bracket hole: 8.50
    Belt. adj. brackethole pos.: 45
    Belt. adj. bracket hole 1: 8.50
    Pulley dia.: 56.00
    Grooves/pulley: 6
    Radius: 90.00
    Radius 2: 90.00
    Rotation: CW
    Plug no.: PL125
    Total length mm: 196.00
    Terminal type: COM
    ID Code: 25
    Communication: LIN
    Alternator: SP/FW
    Regulator type: IR
    Remarks: This Alternator has a COM terminal on the regulator. It is recommended that the OEM number is used to check suitability before ordering.

    Files

  • Suitable for these vehicles

    • OEM
      A0631PR, A3150, A3150(VALEO), A3273, A3273(VALEO), A3273PR, CAL15569, DRA1416, F032116036, LRA03634, TG14C057, 03L903023, 03L903023A, 03L903023AX, 03L903023X, 03L903024M, 03L903024MX, 03L906023, 3L903023, 3L903023A, 3L903023AX, 3L903023X, 3L903024M, 04B903023B, 04B903023BX, 04B903023D, 04B903023DX, 04B903024, 04B903024X, 4B903023B, 8EL011713-471, 28-6774, 211.394.1402, 305.915.140, 11703N, 200232, 209288, 209288A, 439852, 440592, 553961RI, 2617854A, 12090505

    • Normalised article numbler
      a0631pr, a3150, a3150valeo, a3273, a3273pr, a3273valeo, cal15569, dra1416, f032116036, lra03634, tg14c057, 03l903023, 03l903023a, 03l903023ax, 03l903023x, 03l903024m, 03l903024mx, 03l906023, 3l903023, 3l903023a, 3l903023ax, 3l903023x, 3l903024m, 04b903023b, 04b903023bx, 04b903023d, 04b903023dx, 04b903024, 04b903024x, 4b903023b, 8el011713471, 11703n, 200232, 209288, 209288a, 286774, 439852, 440592, 553961ri, 2617854a, 12090505, 305915140, 2113941402
