HC-Cargo Alternator
HC-Cargo Alternator
Article no.: F032115668

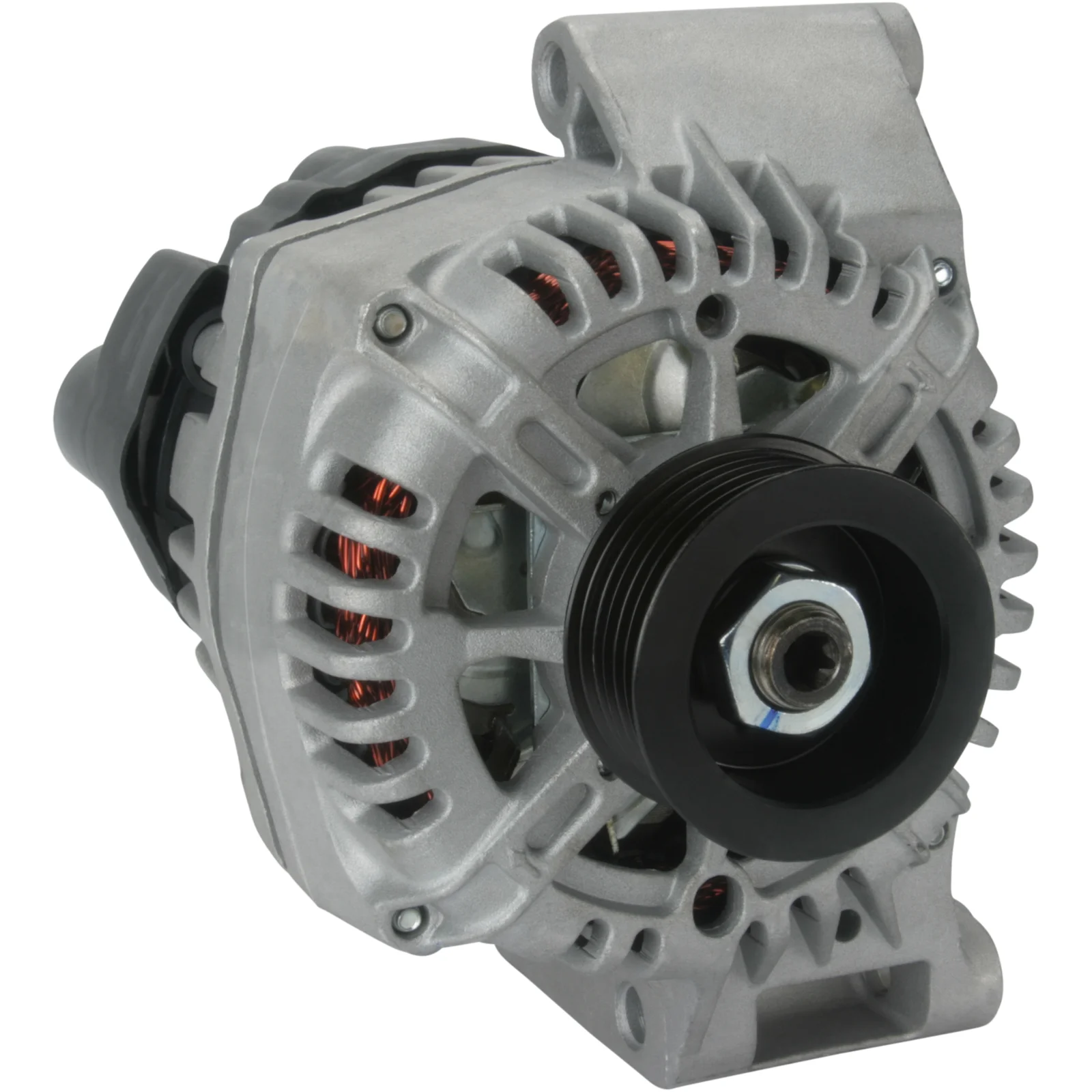

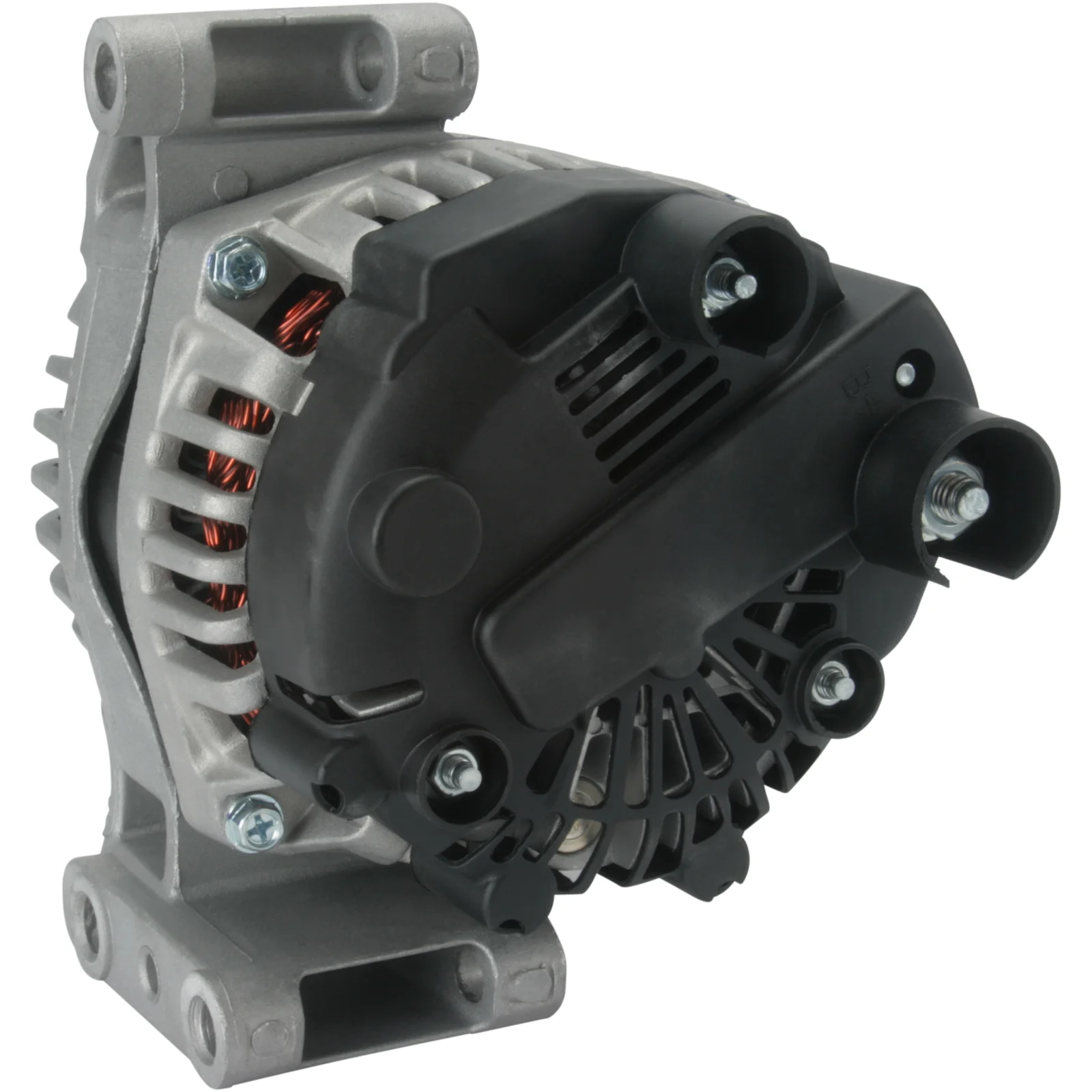

HC-Cargo Alternator

Technical info:

Voltage: 14, Amperes: 90, Rotation: CW, Mounting bracket distributor: 55.00

Description

Voltage: 14
Amp: 90
Pulley dist.: 41.50
Width/holder arm: 64.00
Mount. bracket dist.: 55.00
Bracket hole: 10.50
Bracket hole 2: 9.50
Belt. adj. brackethole pos.: 60
Belt. adj. bracket hole 1: 10.50
Pulley dia.: 54.00
Grooves/pulley: 6
Radius: 77.00
Radius 2: 77.00
B+: M8
Position/B+ in min.: 14
D+ Size: M5
Rotation: CW
Total length mm: 176.50
Pulley: SP
Alternator type: IR
Prod. info: BN

Files

  • OEM
    F032115668, TG9S060, TG9S138, 2606472A, 51792276, 51944877, 52092131, 1616323180

  • Normalised article numbler
    a3628pr, cal15563, dra0806, f032115668, lra03316, tg9s060, tg9s138, 8el011712901, 209240, 209240a, 285928, 439706, 440297, 606472, 747062, 2606472a, 51792276, 51944877, 52092131, 218315902, 505563090, 505563105, 1616323180
  • Description
    Voltage: 14
    Amp: 90
    Pulley dist.: 41.50
    Width/holder arm: 64.00
    Mount. bracket dist.: 55.00
    Bracket hole: 10.50
    Bracket hole 2: 9.50
    Belt. adj. brackethole pos.: 60
    Belt. adj. bracket hole 1: 10.50
    Pulley dia.: 54.00
    Grooves/pulley: 6
    Radius: 77.00
    Radius 2: 77.00
    B+: M8
    Position/B+ in min.: 14
    D+ Size: M5
    Rotation: CW
    Total length mm: 176.50
    Pulley: SP
    Alternator type: IR
    Prod. info: BN

    Files

  • Suitable for these vehicles

    • OEM
      F032115668, TG9S060, TG9S138, 2606472A, 51792276, 51944877, 52092131, 1616323180

    • Normalised article numbler
      a3628pr, cal15563, dra0806, f032115668, lra03316, tg9s060, tg9s138, 8el011712901, 209240, 209240a, 285928, 439706, 440297, 606472, 747062, 2606472a, 51792276, 51944877, 52092131, 218315902, 505563090, 505563105, 1616323180
